ICON 2024-2026 Toyota Tacoma 1.25-3" Lift, Stage 4 Suspension System, Billet
ICON 2024-2026 Toyota Tacoma 1.25-3" Lift, Stage 4 Suspension System, Billet
PART #
- Front lift 1.25-3"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; application note #169: 4wd models require front differential drop part # 55160; application note #205: included rear shocks are compatible with 0-1" of rear lift over stock; application note #206: this kit is configured for fitment on 4wd models.
- If installing onto a 2wd toyota tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality.
- 2wd specific kits are coming soon!; recommended aftermarket wheels: icon alloys - 17x8.
- 5 with 5.
- 75” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 18x9 with 6.
- 00” backspace / 25mm offset; recommended aftermarket tires: 33" x 11.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #55: shocks are fully serviceable.
- Lift heights indicated are for a stock equipped vehicle.
- application note #85: advertised lift height ranges are for a stock equipped vehicle.
- Increasing weight of vehicle due to accessories will alter lift range.
- application note #153: not compatible with adaptive variable suspension (avs) equipped vehicles; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; application note #164: will not fit tacoma submodels equipped with rear leaf springs
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53294 |
| Front Lift Height | 1.25-3" |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 3 IN |
| Coils Quantity Front | 2 |
| Front Spring Rate Type | Linear |
| Active or Passive Suspension | Passive |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Adjustable Compression | No |
| Adjustable Control Arm | Yes |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Coil Quantity Front | 2 |
| Front Reservoir Style | Remote |
| Front Shock Body Diameter | 2.5 IN |
| Maximum Lift Front | 3 IN |
| Minimum Lift Front | 1.25 IN |
| Tires Fitment | Yes |
| Rear Reservoir Style | Remote |
| Rear Shock Body Diameter | 2.5 IN |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset |
| Country of Origin | US |
| Weight (lbs) | 121 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

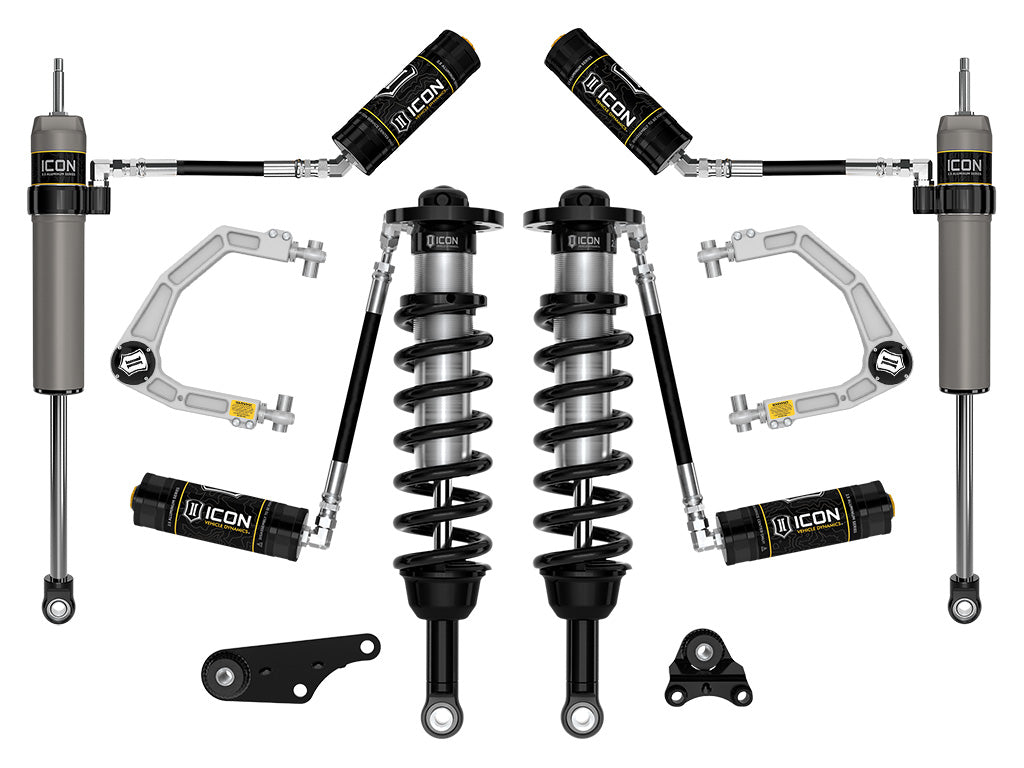

Features
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- FK Rod End bearings for extended longevity and minimal deflection
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
- Adjustable coilovers provide 1.25-3" front lift height over stock
- Billet aluminum UCAs for added strength durability and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- ICON engineered coil springs
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2024-2026 Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Toyota Tacoma Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
