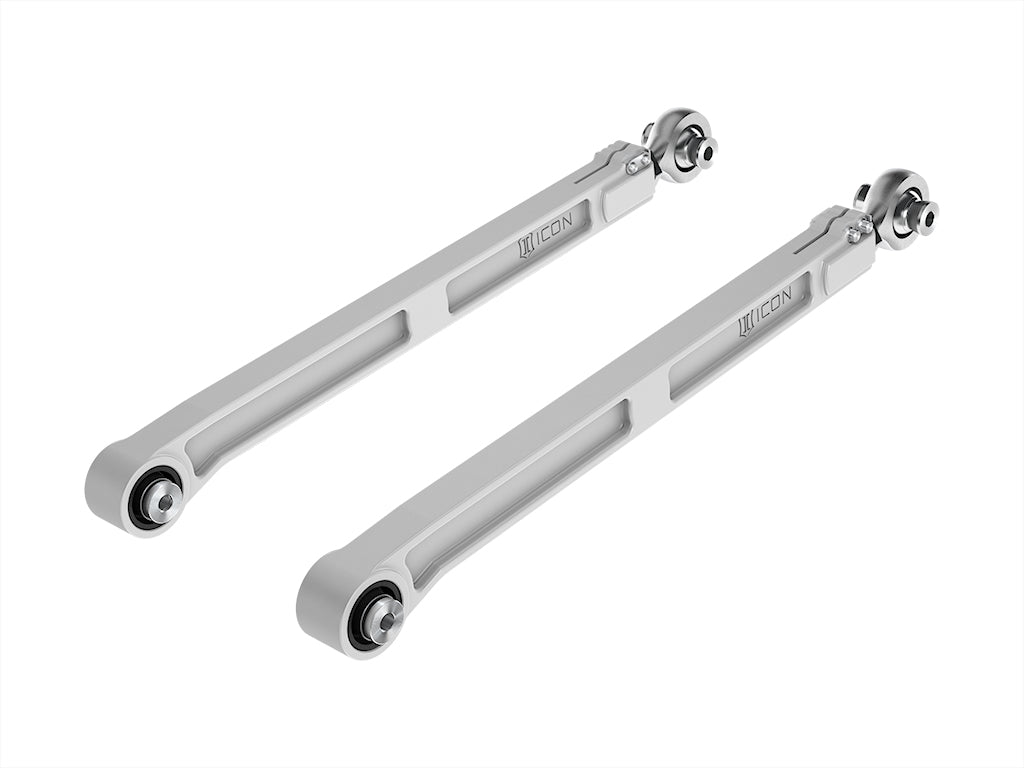

ICON 2022-2026 Toyota Tundra/2023-2026 Toyota Sequoia/2024-2026 Toyota Tacoma, Rear, Billet Lower Link Kit
- Finish Anodized
- Material Aluminum
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 54002 |
| UPC / GTIN | 840103414379 |
| Adjustable | Yes |
| Adjustable Control Arm | yes |
| Attachments Included | No |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Thread in |
| Ball Joint Stud Type | Threaded |
| Bushing Color | Black, Silver |
| Bushing Material | Rod End Bearing, Polyurethane |
| Bushing(s) Included | Yes |
| Color | Gray |
| Construction | Billet |
| Control Arm Color | Gray |
| Control Arm Construction | Billet |
| Control Arm Material | Aluminum |
| End 1 Type | Bushing |
| End 2 Type | Rod End Bearing |
| Finish | Anodized |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Material | Aluminum |
| Mounting Bracket Included | No |
| Mounting Hardware Included | Yes |
| Pre-Assembled | Yes |
| Pre-Greased | No |
| Quantity | Pair |
| Reinforced | Yes |
| Set | Yes |
| Suspension Grade Type | Performance |
| Suspension Type | Coil Spring, Air |
| Country of Origin | US |
| Warranty | Limited Lifetime; Excludes Wearable Items |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
- Vehicle specific, high clearance design for reduced link contact with obstacles
- Replaceable Nylon Rock Slider to protect the link from damage
- CNC machined 6061 aluminum construction
- Large FK Bearing JMX16T PTFE-lined rod ends
- Maintenance free, dual durometer bushings for maximum angularity and noise isolation
- Covered by ICON’s Limited Lifetime Warranty
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON’s billet aluminum rear lower link arms for the 2022-2026 Toyota Tundra, 2023-2026 Toyota Sequoia, and 2024-2026 Toyota Tacoma are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units. This rear lower link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. ICON’s engineering team has also gone a step further in the development of these products by incorporating features such replaceable nylon rock sliders to prevent any hang-ups on the trail. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.
