Important notes before you order
- APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine
- APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required
- APPLICATION NOTE #150: Shocks are fully serviceable
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
- APPLICATION NOTE #191: Advertised lift height ranges are for a vehicle with approx 600lbs of additional weight in rear. Increasing or decreasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53292X |
| UPC / GTIN | 840103432717 |
| Front Lift Height | 1.25-3" |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Control Arm | Yes |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushing(s) Included | Yes |
| Coil Quantity Front | 2 |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Closed |
| Coil Spring End 2 Type | Closed |
| Coil Spring Material | Steel |
| Coil Spring Maximum Inside Diameter | 3 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Front Reservoir Style | Internal |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate | 450 PPI |
| Front Spring Rate Type | Linear |
| Grade Type | Performance |
| Maximum Lift | 3 IN |
| Maximum Lift Front | 3 IN |
| Maximum Lift Height Front | 3 IN |
| Maximum Lift Height Rear | .5 IN |
| Maximum Lift Rear | .5 IN |
| Minimum Lift Front | 1.25 IN |
| Mounting Hardware Included | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Rear Spring Rate | 270 PPI, 125 PPI |
| Rear Spring Rate Type | Progressive Dual Rate |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate | 125 PPI, 270 PPI, 450 PPI |
| Strut(s) Included | Yes |
| Country of Origin | US |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

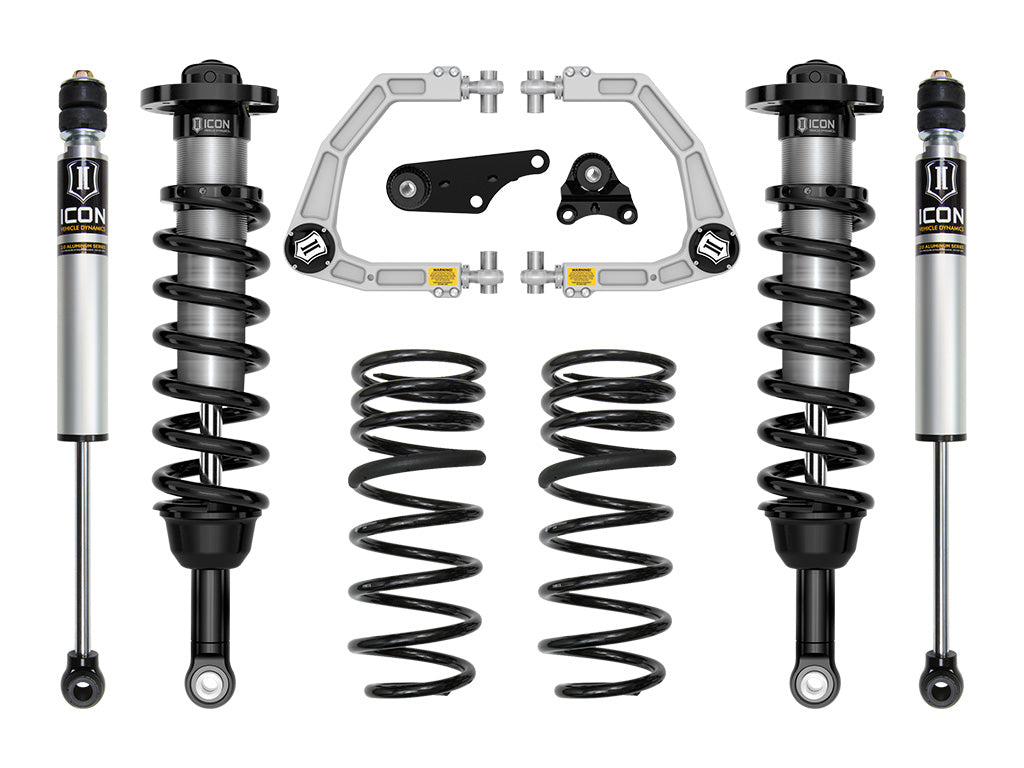

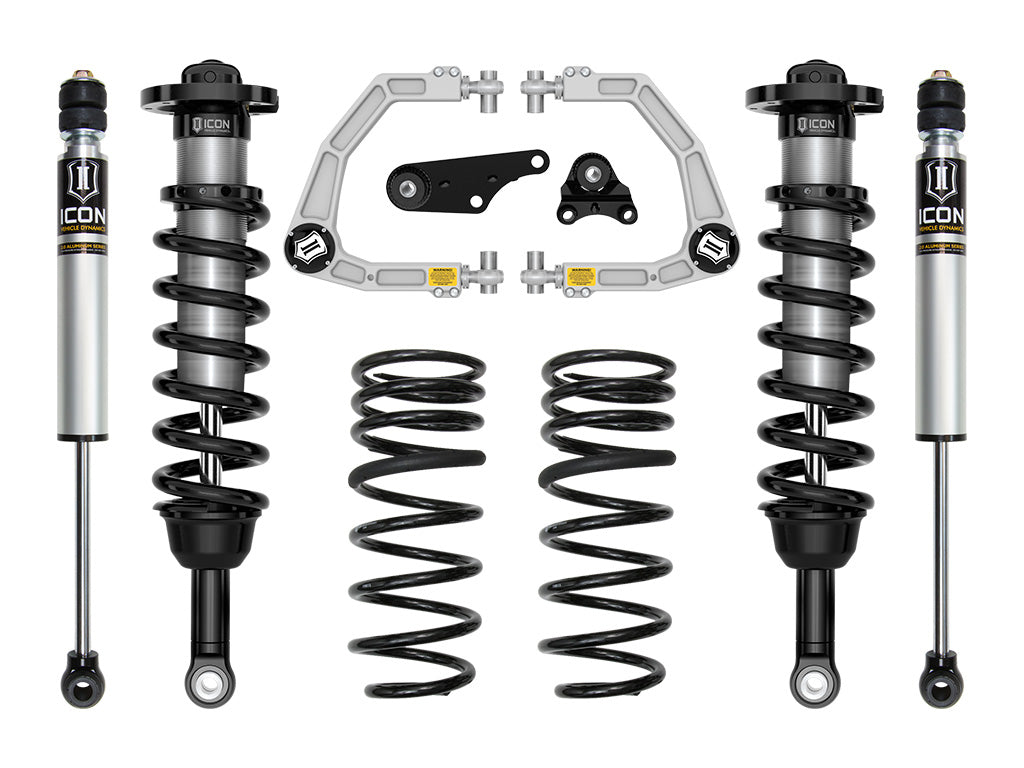

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | 58680 | 24-25 TACOMA 2.5 VS IR COILOVER KIT |
| 1 | 58552DJ | 24-25 TACOMA/24-25 LC250/24-26 GX550/25-26 T4R BILLET UCA DJ PRO KIT |
| 1 | 55160 | 24-25 TACOMA 4WD/24-25 LC250/25-26 T4R 4WD FRONT DIFF DROP KIT |
| 2 | 56518 | 24-25 TACOMA 0-1" REAR 2.0 VS IR |
| 1 | 51215 | 24-25 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT |
Features
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
- Adjustable coilovers provide 1.25-3" front lift height over stock
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- ICON engineered front and rear coil springs
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
Fitment
| Years | Vehicle |
|---|---|
| 2024 | Toyota Tacoma: Limited, TRD Sport; 2.4L only |
| 2024-2026 | Toyota Tacoma: SR5 |
| 2024-2026 | Toyota Tacoma: TRD Off-Road; 2.4L only |
| 2026 | Toyota Tacoma: TRD Offroad |
| 2026 | Toyota Tacoma: TRD Sport; 2.4L only |
| 2025 | Toyota Tacoma: TRD Sport |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Dynamics 2024-2026 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 2 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2024-2026 Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
The rear dual rate coil design provides a softer ride rate with a firmer overload rate that combine to deliver on-road comfort with excellent load support, bottoming resistance, and superior off-road performance. These rear springs are designed to net .5" of rear lift over stock with approximately 600lbs of additional weight added to the rear, for a more aggressive stance and increased fender clearance for larger wheels and tires on more outfitted vehicles. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
