ICON 2025-2026 Toyota 4Runner 4WD, 1.25-3" Lift, Front, 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #150: Shocks are fully serviceable
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #169: 4WD models require front differential drop part # 55160

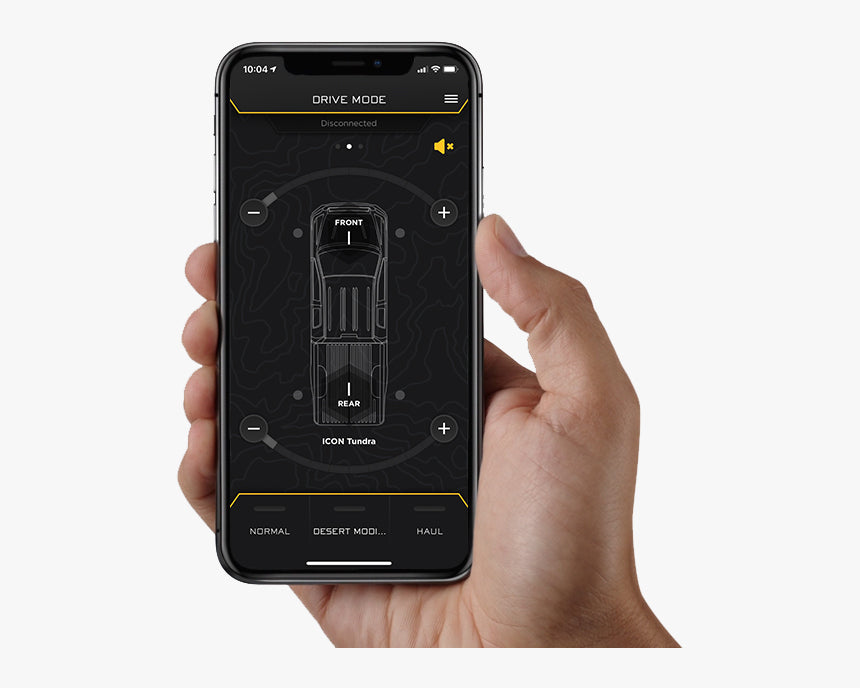

- APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control App
- APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks
- APPLICATION NOTE #233: Length optimized for 4WD models but will also fit 2WD. Alternatively, for maximum wheel travel on 2WD models consider 2WD specific part numbers.
- APPLICATION NOTE #707: Toyota 4Runner TRD Pro and Trailhunter front lift height range is .75-2" over stock
- APPLICATION NOTE #708: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift on most submodels. Recommended for use above 1" of lift for TRD Pro and Trailhunter.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 58795E |
| UPC / GTIN | 840103435275 |
| Active or Passive Suspension | Active |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 19.2 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Electronic |
| Damping Type | Oil |
| Dust Shield | No |
| Dust Shield Included | No |
| Extended Length | 24.85 IN |
| Front Spring Rate | 550 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum, Steel |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | 1.75 IN |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.65 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Country of Origin | US |
| Warranty | 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
- Height-adjustable coilovers offer 1.75-3" of lift height adjustment over stock
- 2.5" diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDEV front coilover shocks are an incredible upgrade for the front end of the 2025-2026 Toyota 4Runner. These adjustable coilovers allow up 1.75-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with 2.5 Aluminum Series CDEV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
