ICON 2024-2026 Toyota Tacoma/2024-2026 Toyota Land Cruiser 250 Series/2025-2026 Toyota 4Runner, ICON Intelligent Control Install Kit
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
- APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control App
- APPLICATION NOTE #207: Also requires installation of applicable CDEV front and rear shocks
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 53509 |
| UPC / GTIN | 840103428772 |
| Connector Gender | Female |
| Grade Type | Performance |
| Terminal Type | Pin |
| Country of Origin | US |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle
- Onboard sensors monitor G-forces and movement of vehicle chassis
- Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
- Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds
- User interface provided by IIC Mobile App via Bluetooth connection to iOS device
- Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets

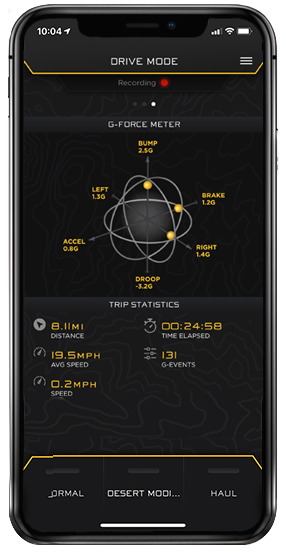

- Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips

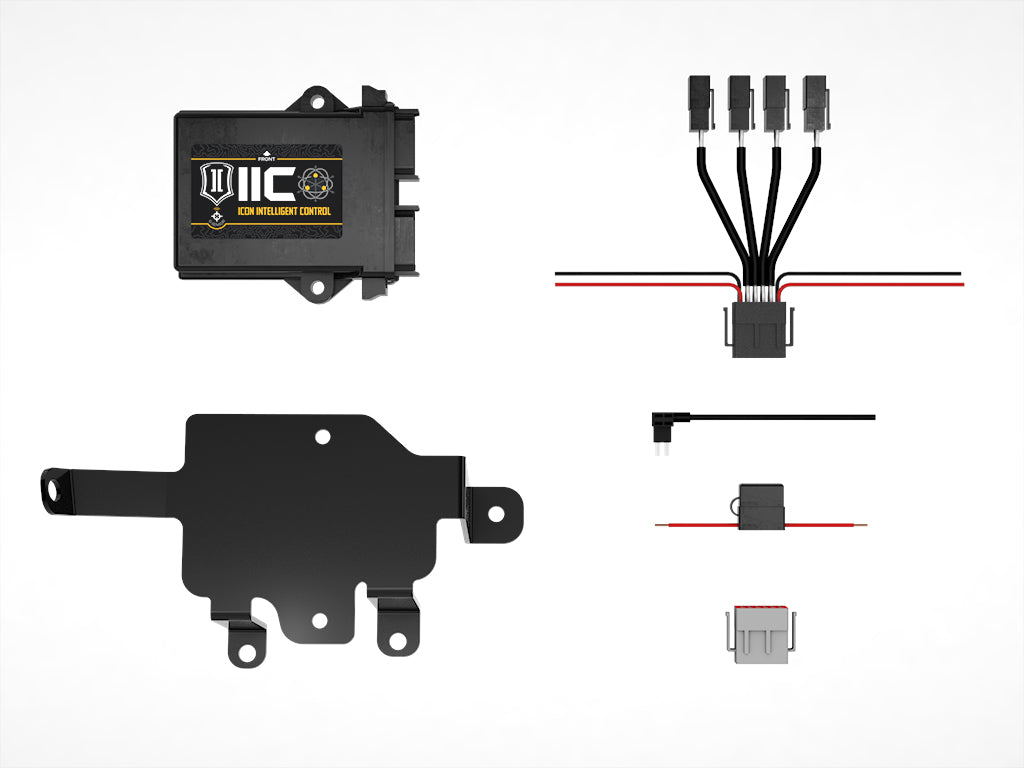

- Application specific mounting brackets, hardware and wire harnesses
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2024-2026 Toyota Tacoma, 2024-2026 Toyota Land Cruiser 250 Series, and 2025-2026 Toyota 4Runner using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install.

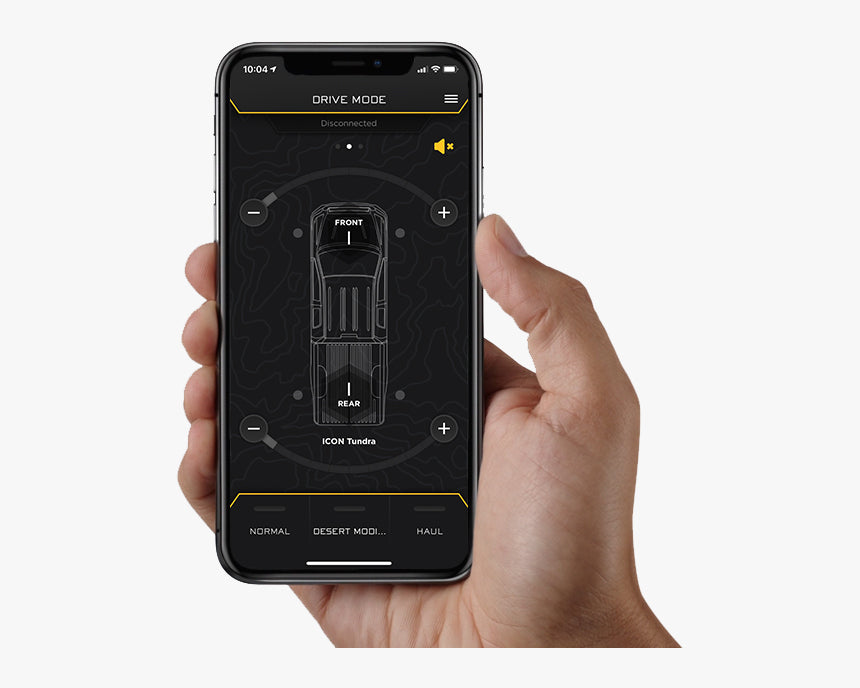

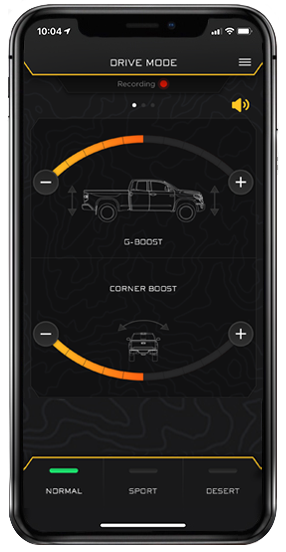

The IIC App brings all of this technology together by offering a user-friendly interface to monitor, record, and adjust the system’s performance via Bluetooth connection. Users can easily alter the shocks’ baseline settings for firmness, as well as adjust the sensitivity of vertical “G-Boost” and lateral “Corner Boost” with a few simple taps from their favorite iOS device. The App includes several preconfigured ‘Drive Modes’ (Normal, Desert, and Haul) but also offers the ability for users to create an unlimited number of unique presets using their own custom settings. To top it all off, you can record data from your trip including time, speed, distance and G-Forces for your very own ICONIC Overview.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
