ICON 2014-2020 Ford Expedition 4WD, .75-2.25" Lift, Stage 1 Suspension System
- Front lift 0.75-2.25"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Factory Wheels & Tires Fitment: Yes
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #124: Rear Lift Heights Over 1" Increase Advancetrac Sensitivity
- Ships in multiple boxes
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K93301 |
| UPC / GTIN | 840103420592 |
| Front Lift Height | 0.75-2.25" |
| Active or Passive Suspension | Passive |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Bushing(s) Included | Yes |
| Coil Spring Color | Silver |
| Coil Spring End 1 Type | Square |
| Coil Spring End 2 Type | Square |
| Coil Spring Material | Steel |
| Coil Spring Maximum Inside Diameter | 3 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Damping Adjustment Type | Manual |
| Front Reservoir Style | Remote |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate | 600 PPI |
| Front Spring Rate Type | Linear |
| Grade Type | Performance |
| Maximum Lift | 2.25 IN |
| Maximum Lift Height Front | 2.25 IN |
| Maximum Lift Height Rear | 2.25 IN |
| Minimum Lift Front | .75 IN |
| Minimum Lift Rear | .75 IN |
| Mounting Hardware Included | Yes |
| Rear Reservoir Style | Remote |
| Rear Shock Body Diameter | 2.5 IN |
| Rear Spring Rate Type | Linear |
| Shocks Included | Yes |
| Spring Color | Silver |
| Spring Material | Steel |
| Country of Origin | US |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

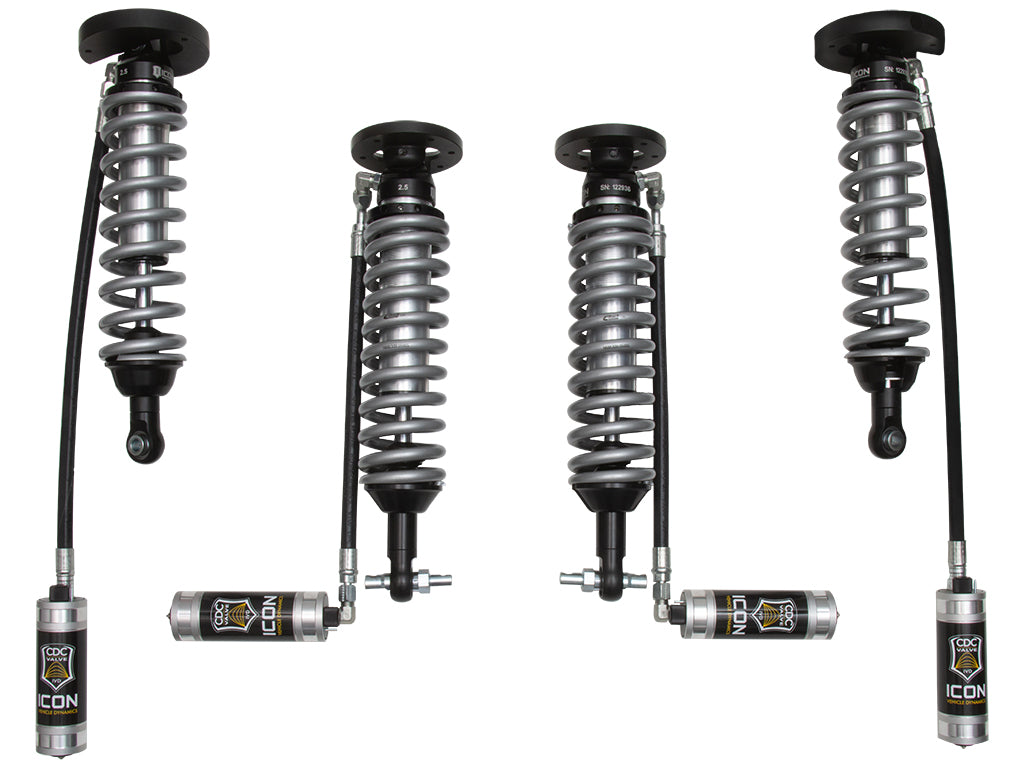

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | 91820C | 14-20 EXPEDITION 4WD .75-2.25" FRT 2.5 VS RR CDCV COILOVER KIT |
| 1 | 91821C | 14-20 EXPEDITION 4WD .75-2.25" REAR 2.5 VS RR CDCV COILOVER KIT |
Features
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Unique valving developed specifically for the 2014-2020 Expedition
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers from .75-2.25" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- High strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on system - no cutting, or welding necessary for install
Recommended wheels & tires
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Like any application that makes its way into ICON’s research and development department, the Ford Expedition was examined thoroughly in stock form in an attempt to find where the OE components were limiting performance or could be improved upon. After hours of in-house R&D and thousands of miles of real-world testing a collection of ICON components including front and rear coilovers and upper control arms were organized into two staged suspension systems that each delivers a unique level of performance to the Expedition. A remarkable level of performance is established with the 2.5 Series remote reservoir CDC Valve shocks included in ICON’s Stage 1 system, and only improves with the addition of upper control arms (tubular steel or billet aluminum) in the Stage 2 systems. These systems drastically increase the vehicle’s ride quality, reduce body roll, maximize wheel travel, and provide a lift height range of .75-2.25” to allow for the fitment of larger, more aggressive wheel and tire combinations. A bolt-on design also makes for an easy install with the ability for the vehicle to be returned to stock if needed.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
