ICON 2021-2025 Ford F-150 Raptor, 2-2.25" Lift, Stage 1 Suspension System

Name: ICON 2021-2025 Ford F-150 Raptor, 2-2.25" Lift, Stage 1 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K93171
Price: 1035.39 USD
Availability: InStock

ICON 2021-2025 Ford F-150 Raptor, 2-2.25" Lift, Stage 1 Suspension System

PART #

$1,035.39

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

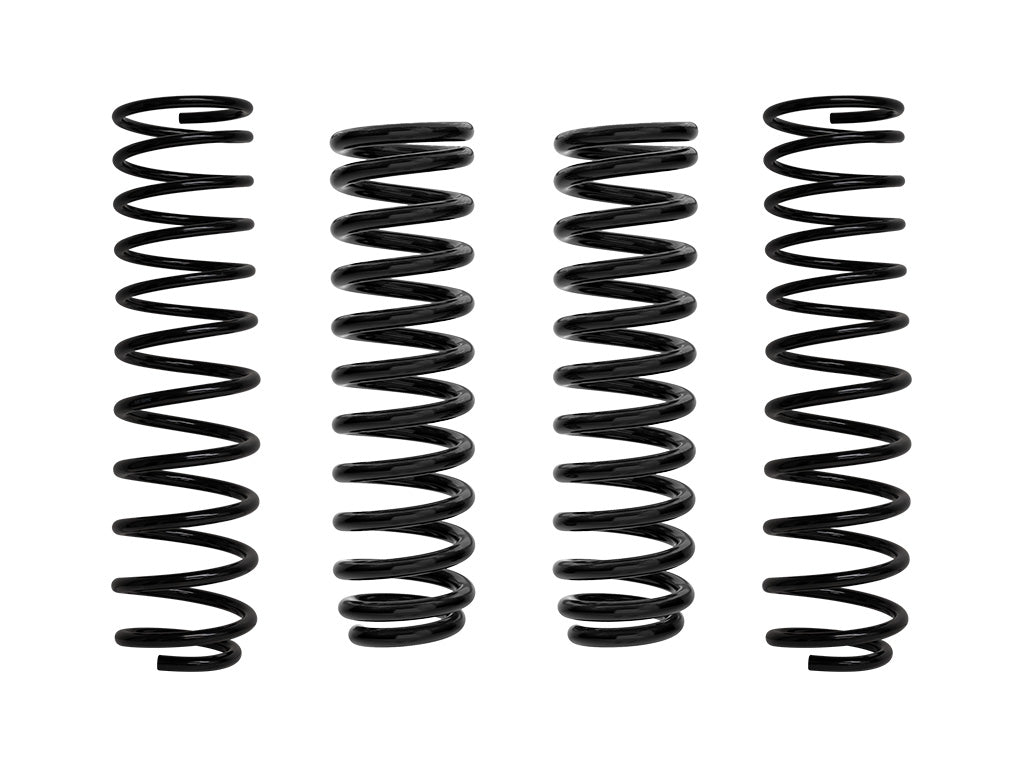

Built for both durability and ease of installation, these springs feature a dual-stage powder coating that protects against corrosion in any environment. Their bolt-on design eliminates the need for cutting or modifications, allowing for a straightforward install. Backed by a lifetime guarantee against sagging or breakage, these coil springs redefine your Raptor’s on- and off-road performance, delivering unmatched reliability and confidence wherever the journey takes you.

Features

Vehicle specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers
Significantly improves on- and off-road ride quality and performance over stock
Bolt-on installation with no cutting required
Dual stage powder coating for maximum corrosion resistance
Lifetime guarantee against sagging/breakage
Front coils yield 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R
Compatible with all versions of available OE shock absorbers
Maintains electronic shock functionality
Linear rate front coil springs
1" rear lift height over stock on Raptors without additional weight in the rear
Triple rate rear coil springs with ICON-engineered droop ride and overload rates
Performance ride rate for compliance and comfort overload rate for load and bottom out resistance extra soft initial rate for maximum droop travel
Tapered wire rear coil design achieves maximum travel and efficiency

Oem wheels & tires fitment: yes; tech note: provides 2" of front lift over stock on f-150 raptor r; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5” backspace / 6mm offset; recommended aftermarket tires (w/o 37 package): 35" x 12.
50" (larger tires may fit but fender trimming and modifications will be required); recommended aftermarket tires (w/ 37 package): 37" x 12.
50" (larger tires may fit but fender trimming and modifications will be required); application note #85: advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; application note #180: do not combine with coil spacers or damage may occur; application note #187: only fits oe coilovers.
Will not fit icon or other aftermarket coilovers.
; tech note: provides 2.
25" of front lift over stock on f-150 raptor

Quick SpecsOverview:

Maximum Lift Height Front: 2.25 IN
Maximum Lift Height Rear: 1 IN
Spring Material: Steel
Bushings Included: No
Mounting Hardware Included: No
Spring Color: Black
Shocks Included: NO
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 2.25 IN
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
Add-On Part: 98564DJ - 21-24 F-150 RAPTOR BILLET UCA DJ PRO KIT
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Quantity Front: 2
Maximum Lift Front: 2.25 IN
Maximum Lift Rear: 1 IN
Minimum Lift Front: 2 IN
Rear Spring Rate Type: Progressive Triple Rate
Title: ICON 2021-2025 Ford F-150 Raptor 2-2.25" Lift Stage 1 Suspension System

Additional Specifications:

Country of Origin: US
Warranty: Lifetime
Weight (lbs): 104.0
Vehicle Specific Fitment: Y

Instructions

I95230_REVA.pdf

Fitment

: N/A
