ICON 2021-2026 Ford F-150 Raptor, Billet Upper Control Arm w/ Delta Joint Pro, Kit
- Finish Anodized
- Material Aluminum
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Recommended Aftermarket Tires: 35X12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 98564DJ |
| UPC / GTIN | 840103429359 |
| Adjustable | Yes |
| Adjustable Control Arm | yes |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Bushing Material | Rod End Bearing |
| Bushing(s) Included | Yes |
| Construction | Billet |
| Control Arm Color | Gray |
| Control Arm Construction | Billet |
| Control Arm Material | Aluminum |
| Finish | Anodized |
| Grade Type | Performance |
| Grease Fitting Included | yes |
| Material | Aluminum |
| Mounting Bracket Included | No |
| Mounting Hardware Included | Yes |
| Pre-Assembled | Yes |
| Pre-Greased | Yes |
| Quantity | 2 |
| Reinforced | Yes |
| Set | Yes |
| Suspension Grade Type | Performance |
| Suspension Type | Spring |
| Country of Origin | US |
| Warranty | 1 Year-Delta Joint Pros; Limited Lifetime-Control Arms; Excludes Wearable Items |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- CNC machined 6061 billet aluminum construction with satin anodized finish
- Corrects suspension geometry and allows for proper wheel alignment on Gen3 Raptors with up to 3” of front lift
- Quick, precise, on-vehicle adjustment for both caster and camber
- Patented Delta Joint PRO (U.S. Pat. 10,731,700) allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable

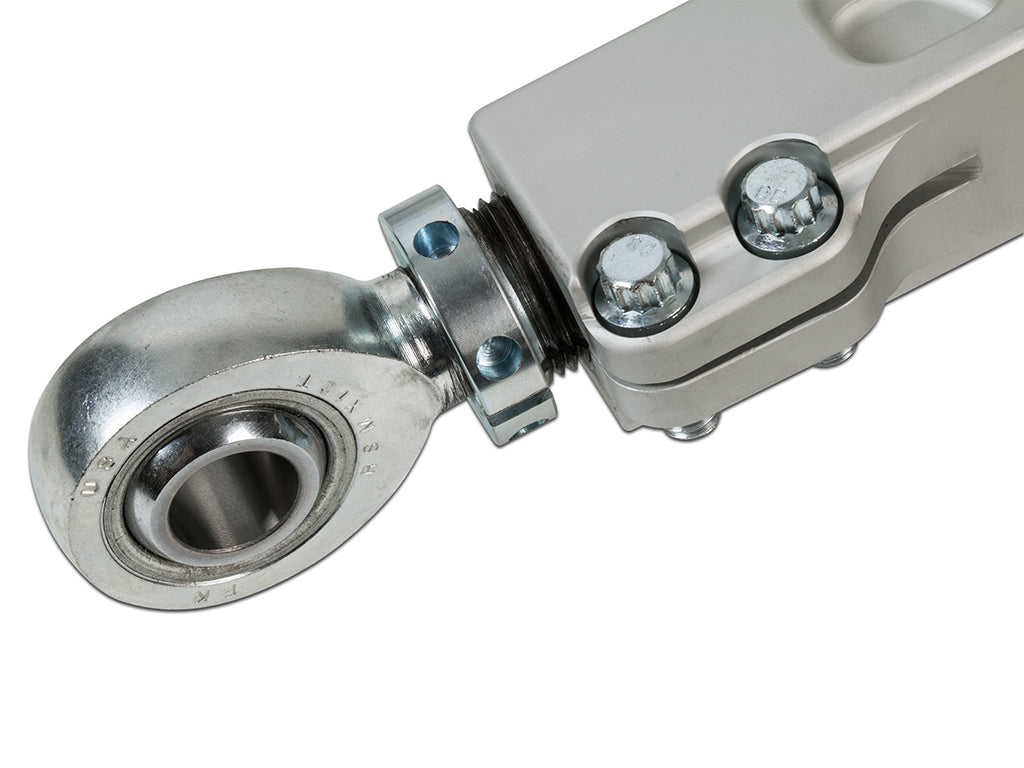

- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed dust cover cap
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5" Backspace/6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 5.25" Backspace/6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20" x 9" with 5.625" Backspace/16mm Offset
- Recommended Aftermarket Tires: 35X12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

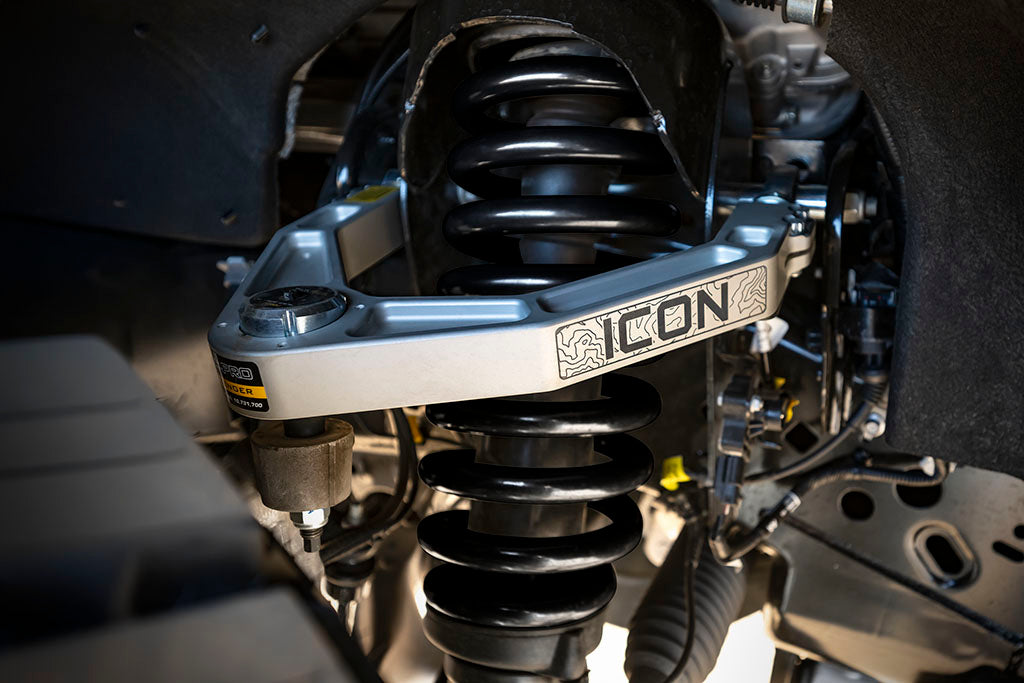

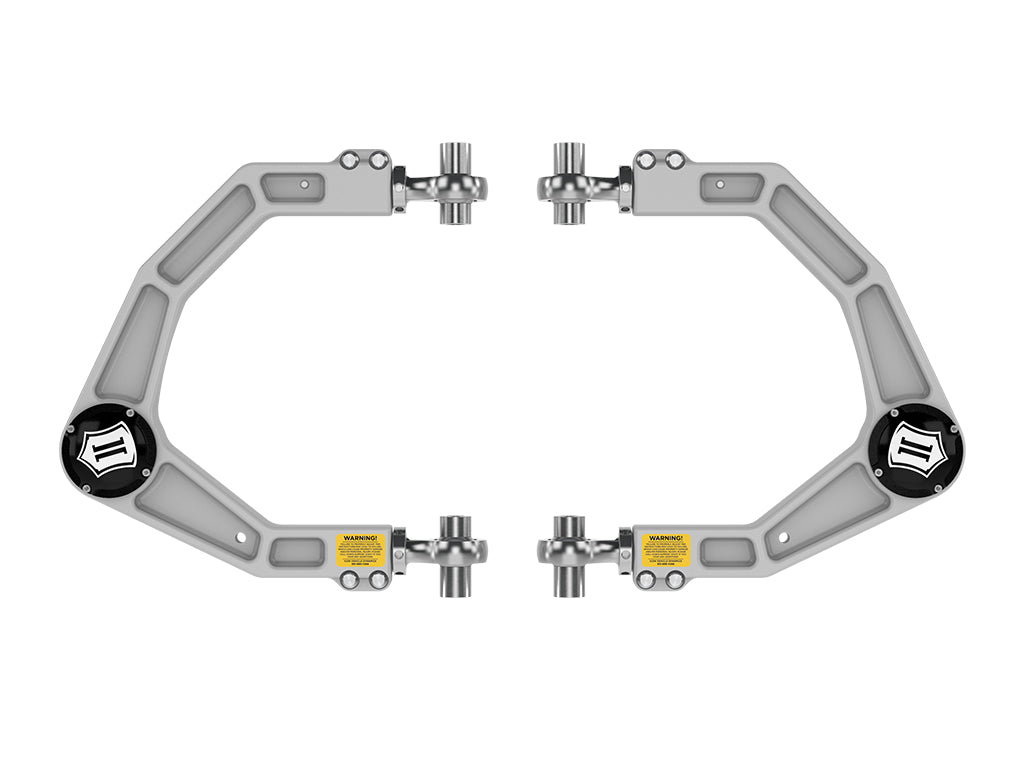

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Gen3 Ford Raptor with corrected front end geometry, adjustable camber and caster, and improved suspension component clearance. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties. Replacing the OE ball joint with the ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 7/8” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2021-2026 Ford Raptor.
Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable... Shop all ICON Vehicle Dynamics
