ICON 2021-2025 Ford F-150 4WD, 2.75-3.5" Lift, Stage 5 Suspension System, Tubular

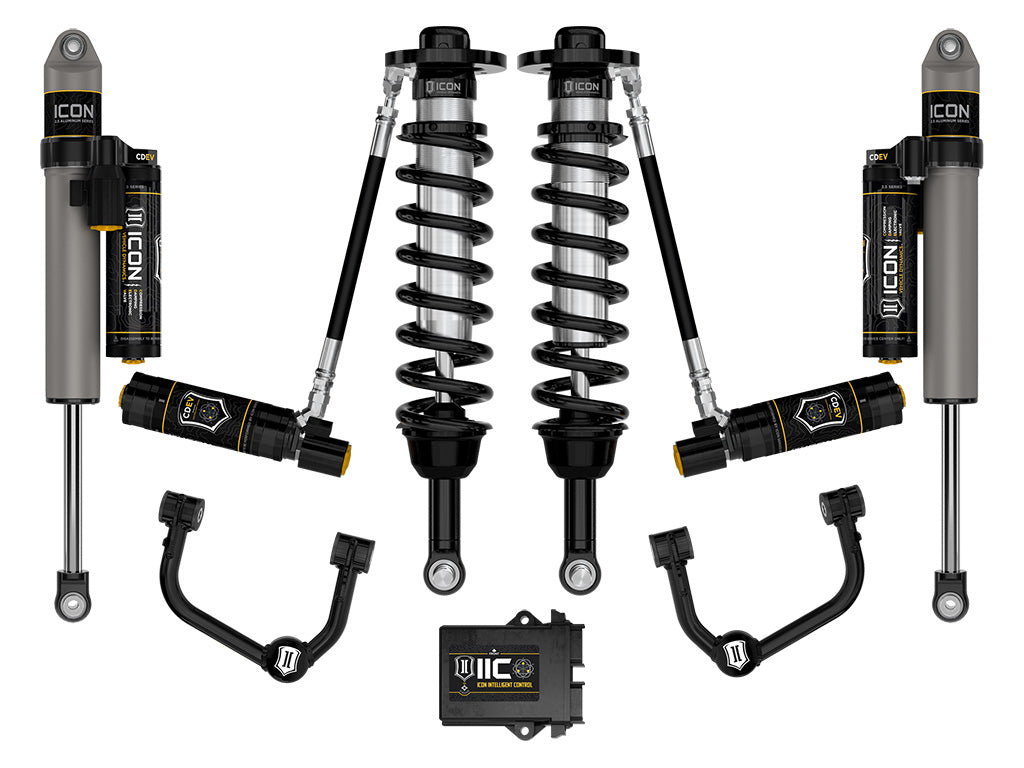

ICON Vehicle Dynamics 2021-2025 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 5 system includes vehicle-specific tuned 2.5” coilover shocks featuring CDEV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 2.75-3.5” of front lift over stock allowing the use of larger more aggressive wheel and tire combinations. Tubular Delta Joint Pro upper control arms on the F-150 not only add strength and durability but help retain factory alignment spec range increasing caster over stock and allow for the extra lift height this system provides. ICON 2.5 Aluminum Series CDEV piggyback reservoir rear shocks utilize a vehicle-specific valving and offer increased damping and head dissipation balancing the performance of the truck from front to rear. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. The ICON Vehicle Dynamics 2021-2025 F-150 4WD Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

This system features upper control arms with ICON's patented Delta Joint PRO. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable serviceable design in which any component may be removed inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO with a full 90 degrees of articulation from one extreme to the other. This represents a 14% improvement in range of motion over the highly capable original Delta Joint allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal machined to the finest tolerance to provide a flawless metal-to-metal bearing interface. We also redesigned the lubrication system with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
