ICON Vehicle Dynamics

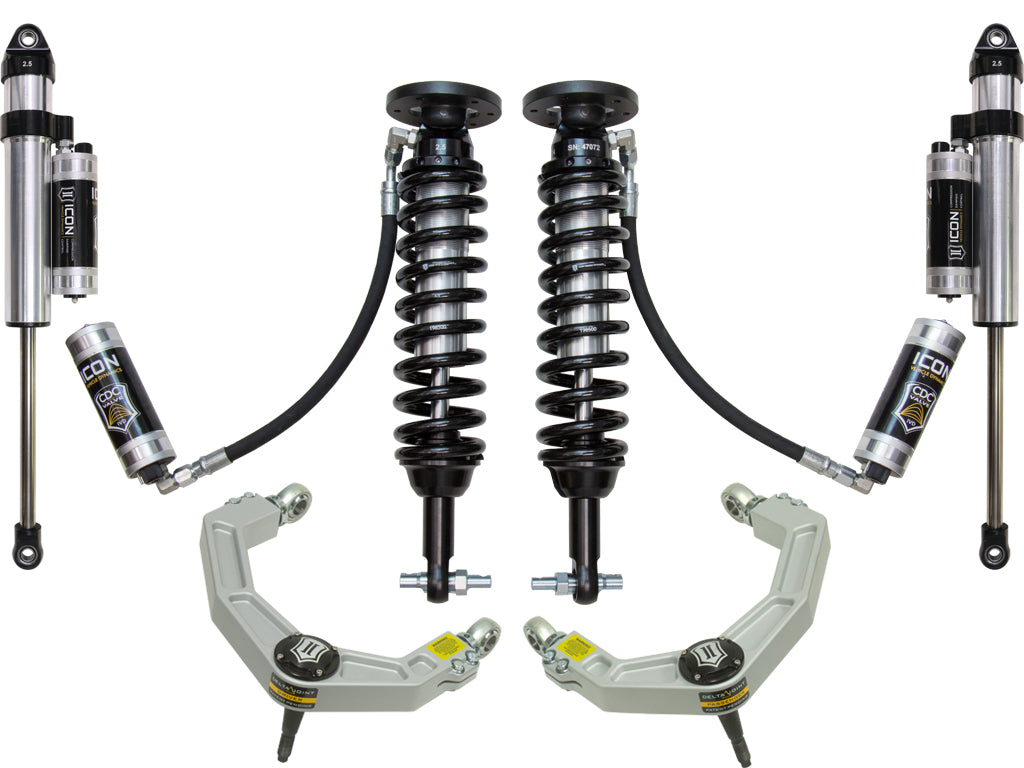

ICON 2015-20 Ford F150 4WD, 2-2.63" Lift, Stage 5 Suspension System, Billet UCA

ICON 2015-20 Ford F150 4WD, 2-2.63" Lift, Stage 5 Suspension System, Billet UCA

PART #

$5,347.85
$5,347.85
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.

Inventory: Special Order (Live Chat or Call)
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Features

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Bolt-on system - No cutting or welding necessary for install
  • Unique valving developed for the lighter weight of the 2015-2020 F-150
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • Adjustable coilovers from 2-2.63" of lift height
  • Billet Aluminum Upper Control Arms for added strength durability and alignment spec range
  • ICON CDC Valve allows quick and easy end-user compression adjustment
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • High strength alloy CNC machined lower bar pin
  • FK rod end bearings for extended longevity and minimal deflection
