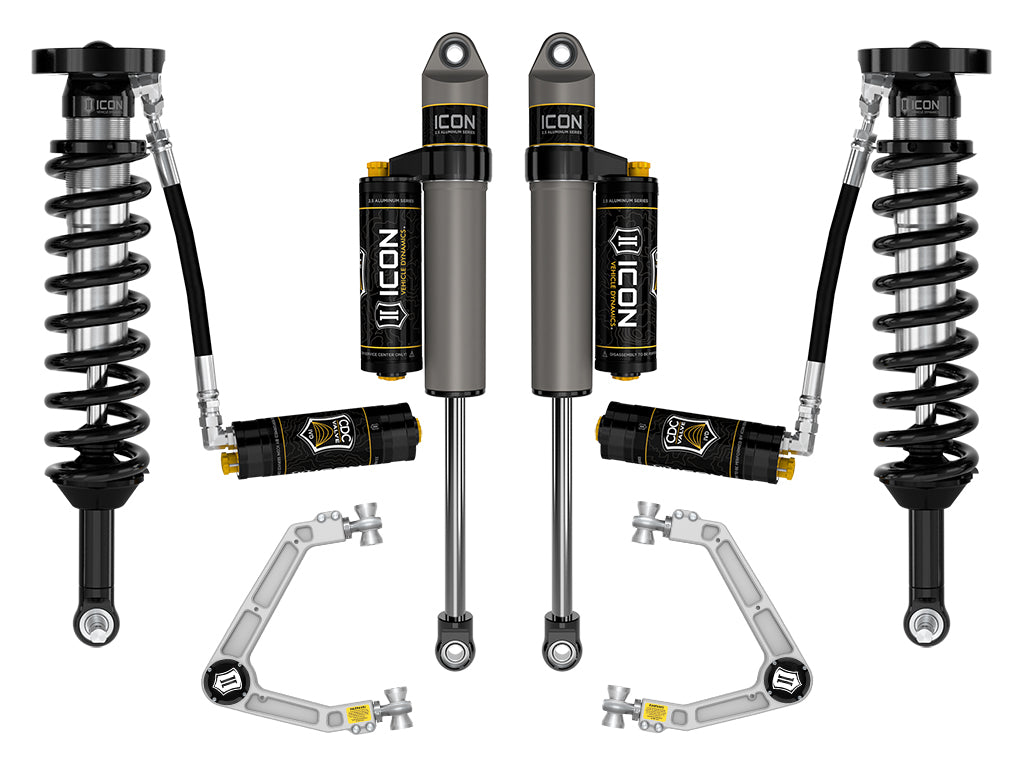

ICON 2023-2026 GMC Canyon AT4, Denali, & Elevation/Chevrolet Colorado Trail Boss, 1.75-2.5" Lift, Stage 5 Suspension System, Billet
ICON 2023-2026 GMC Canyon AT4, Denali, & Elevation/Chevrolet Colorado Trail Boss, 1.75-2.5" Lift, Stage 5 Suspension System, Billet
PART #
- Front lift 1.75-2.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Factory wheels & tires fitment: yes; tech note: only compatible with oe steering knuckles.
- Do not install in combination with any aftermarket steering knuckles.
- recommended aftermarket wheels: 17x8.
- 5" w/ 5.
- 46” backspace / 18mm offset; recommended aftermarket tires: 35" x 12.
- 50" (larger tires may fit but fender trimming and modifications will be required); application note #55: shocks are fully serviceable.
- Lift heights indicated are for a stock equipped vehicle.
- application note #152: icon delta joint pro upper control arms required; application note #156: springs are rated for gasoline engines; application note #158: only fits "ultra-wide stance" vehicles; application note #159: will not fit chevrolet colorado wt, lt, z71, or zr2.
- Will not fit gmc canyon at4x.
- tech note: rear shocks are compatible with 0-1" of rear lift over stock
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K73085 |
| Front Lift Height | 1.75-2.5" |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Coils Quantity Front | 2 |
| Front Spring Rate Type | Linear |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Adjustable Damping | Yes |
| Damping Adjustment Type | Manual |
| Maximum Lift Front | 2.5 IN |
| Minimum Lift Front | 1.75 IN |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | 17x8.5" w/ 5.46” Backspace / 18mm Offset |
| Country of Origin | US |
| Weight (lbs) | 123 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 20% increase in wheel travel over stock and improved ride quality with no change in towing capacity
- FK rod end bearings for extended longevity and minimal deflection
- 2.5 Aluminum Series rear piggyback reservoir shocks provide increased performance and balanced tune with coilovers
- 100% Bolt-on system - no drilling cutting or welding necessary for install
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment from soft to hard
- Adjustable Coilovers from 1.75-2.5" of front lift height over stock
- 2.5 Series extended travel front coilovers with remote reservoirs for improved shock cooling and performance
- Billet Upper Control Arms with Delta Joint PRO ball joints for added strength durability and alignment spec range with on-vehicle adjustability
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts on all shock absorbers
- High strength alloy CNC machined lower bar pin
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
This system features upper control arms with ICON's patented Delta Joint PRO. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected, and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
