ICON 2023-2026 GMC Canyon AT4, Denali, & Elevation/Chevrolet Colorado Trail Boss, 1.75-2.5" Lift, Stage 1 Suspension System
ICON 2023-2026 GMC Canyon AT4, Denali, & Elevation/Chevrolet Colorado Trail Boss, 1.75-2.5" Lift, Stage 1 Suspension System
PART #
- Front lift 1.75-2.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Factory wheels & tires fitment: yes; recommended aftermarket wheels: 17x8.
- 5" w/ 5.
- 46” backspace / 18mm offset; recommended aftermarket tires: 35" x 12.
- 50" (larger tires may fit but fender trimming and modifications will be required); application note #55: shocks are fully serviceable.
- Lift heights indicated are for a stock equipped vehicle.
- application note #156: springs are rated for gasoline engines; application note #158: only fits "ultra-wide stance" vehicles; application note #159: will not fit chevrolet colorado wt, lt, z71, or zr2.
- Will not fit gmc canyon at4x.
- tech note: rear shocks are compatible with 0-1" of rear lift over stock
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K73081 |
| Front Lift Height | 1.75-2.5" |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 2.5 IN |
| Coils Quantity Front | 2 |
| Front Spring Rate Type | Linear |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Damping | No |
| Maximum Lift Front | 2.5 IN |
| Minimum Lift Front | 1.75 IN |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | 17x8.5" w/ 5.46” Backspace / 18mm Offset |
| Country of Origin | US |
| Warranty | 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs |
| Weight (lbs) | 58 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable Coilovers from 1.75-2.5" of front lift height over stock
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- High strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear internal reservoir shocks with 5/8" polished shafts
- 100% Bolt-on system - no drilling cutting or welding necessary for install
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

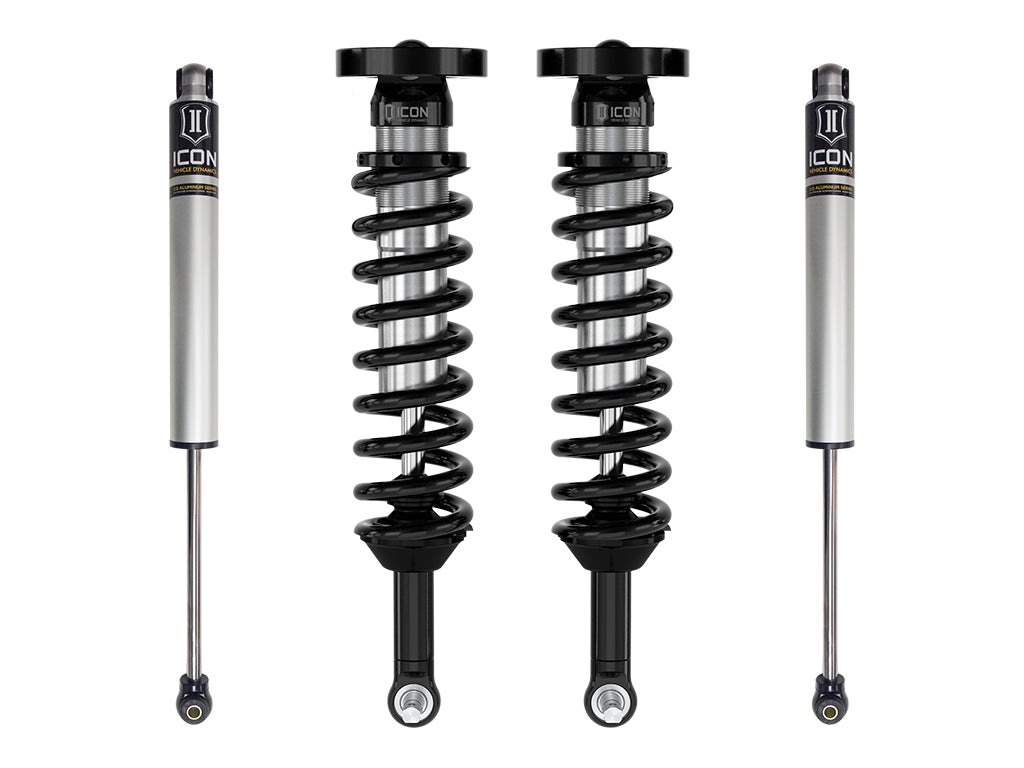

ICON Vehicle Dynamics 2023-2026 GMC Canyon AT4, Denali, & Elevation/Chevrolet Colorado Trail Boss suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers, specifically designed for the wider track width of GMC Canyon and Chevrolet Colorado Trail Boss, are also height adjustable for 1.75-2.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Their longer than stock length improves performance by increasing front wheel travel for a total of 9”, from full compression to full extension, while still being compatible with the stock front upper control arms. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2023-2026 GMC Canyon AT4, Denali, & Elevation/Chevrolet Colorado Trail Boss Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
