ICON 2023-2026 Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 6 Coilover Conversion System

Name: ICON 2023-2026 Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 6 Coilover Conversion System
Brand: ICON Vehicle Dynamics
SKU: K63176
Price: 9275.33 USD
Availability: OutOfStock

PART #

$9,275.33

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Features, Important Notes, Specifications, and Fitment data, before making a purchase. Components contained in images and descriptions may change based upon your selections.

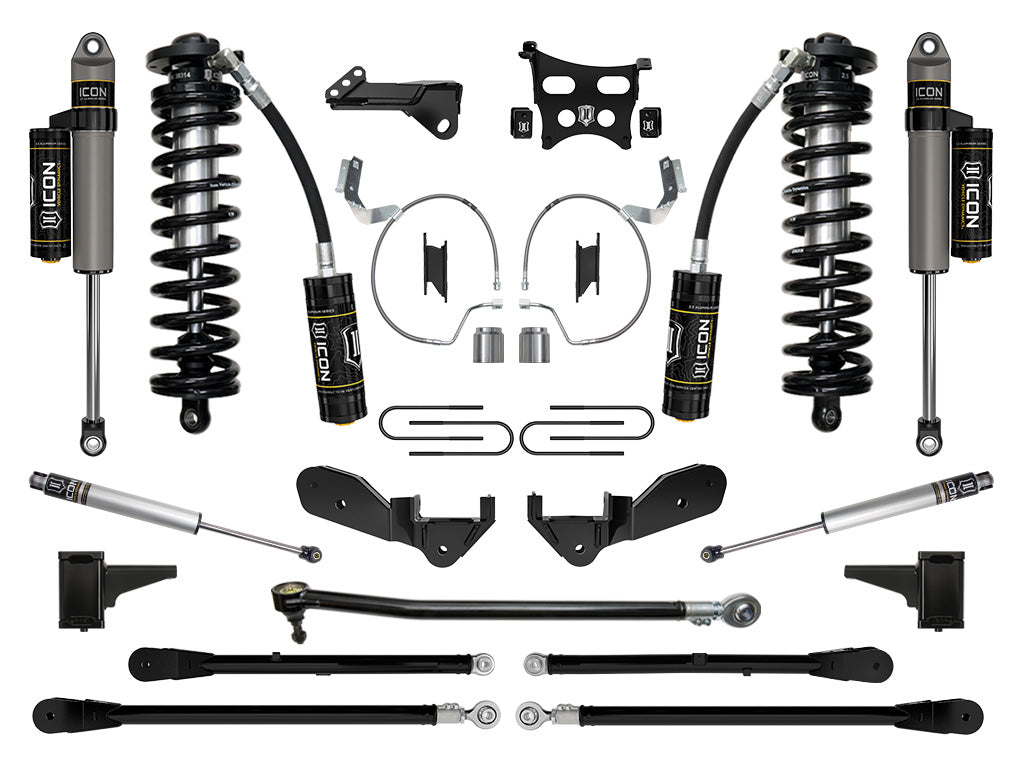

This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

Features

Fits 2023-2025 F-250 / F-350 4WD applications
Dual steering stabilizer kit offers increased steering damping
Corrosion resistant anodized steering stabilizer shock bodies with 5/8" shafts
Stainless steel braided front brake lines
Heavy-duty fabricated rear lift blocks
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Corrosion resistant hard anodized rear shock bodies with 7/8" shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against coil spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Bolt-in system fits in OE coil bucket location
Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON 2.5 Aluminum Series piggyback reservoir rear shocks
Increased wheel travel and ride quality over stock
ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
Track bar drop bracket reduces track bar angle and corrects bump steer geometry
Adjustable track bar allows fine tuning of track alignment and improves handling characteristics

Oem wheels & tires fitment: yes; application note #115: lift heights based on 4wd crew cab diesel; application note #120: secondary shock options available, contact icon for more details; application note #151: fits single rear wheel models only; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; tech note: super duty diesel models without tremor package will have front lift height range of 4-5.
5" over stock; tech note: super duty diesel models equipped with tremor package will have front lift height range of 3-4.
5" over stock; tech note: super duty gas models without tremor package will have front lift height range of 4.
5-6" over stock; tech note: super duty gas models equipped with tremor package will have front lift height range of 3.
5-5" over stock; tech note: if installing with icon 2.
5 series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required; tech note: due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness.
If adequate clearance cannot be achieved, please contact icon customer service.
; recommended aftermarket tires: 37" x 12.
50" (larger tires may fit but fender trimming and modifications will be required.
); recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
25” backspace / 6mm offset; application note #1: only fits 4wd models; application note #3: will not fit f-350/f-450 cab & chassis models; application note #55: shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
; application note #88: removal of the coil centering cup in factory coil bucket required for installation

Quick SpecsOverview:

Maximum Lift Height Front: 6 IN
Maximum Lift Height Rear: 2 IN
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 6 IN
Leaf Spring Bracket Material: Steel
Leaf Spring Bracket Color: Black
Coil Spring End 1 Type: Square
Coil Spring End 2 Type: Square
Coils Quantity Front: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 66518R - 23-25 FSD 4WD 4.5" FRONT 2.0 VS RR
Add-On Part: 67811CP - 23-25 FSD 4.5" FRONT 2.5 VS RR CDCV PAIR
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 611003 - 2.5 RESI DOUBLER MOUNT 7.5" KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 66518 - 23-25 FSD 4WD 4.5" FRONT 2.0 VS IR
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 67811P - 23-25 FSD 4.5" FRONT 2.5 VS RR PAIR
Adjustable Compression: No
Adjustable Control Arm: Yes
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Quantity Front: 2
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5 IN
Maximum Lift Front: 6 IN
Maximum Lift Rear: 2 IN
Minimum Lift Front: 3 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Piggyback
Rear Shock Body Diameter: 2.5 IN
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Title: ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD 4-5.5" Lift Stage 6 Coilover Conversion System

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shock Absorbers; Limited Lifetime-Box Kit, Coil Springs, Track Bar Bracket, Track Bar, 4-Link Kit, Steering Stabilizer Bracket, Blocks, U-Bolts; Excludes Wearable Items
Weight (lbs): 309.0
Vehicle Specific Fitment: Y

Instructions

I37705P_REVB.pdf
