ICON Vehicle Dynamics

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 2 Coilover Conversion System w/ Expansion Packs

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 2 Coilover Conversion System w/ Expansion Packs

PART #

$5,795.10
$5,795.10
SALE Backordered
Shipping calculated at checkout.

Inventory: Special Order (Live Chat or Call)
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

This ICON Vehicle Dynamics 4-5.5” coilover conversion system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger more aggressive wheel and tire combinations. This Stage 2 system is perfect for on-road and towing use as well as mild off-road use like job site duty and washboard gravel roads.

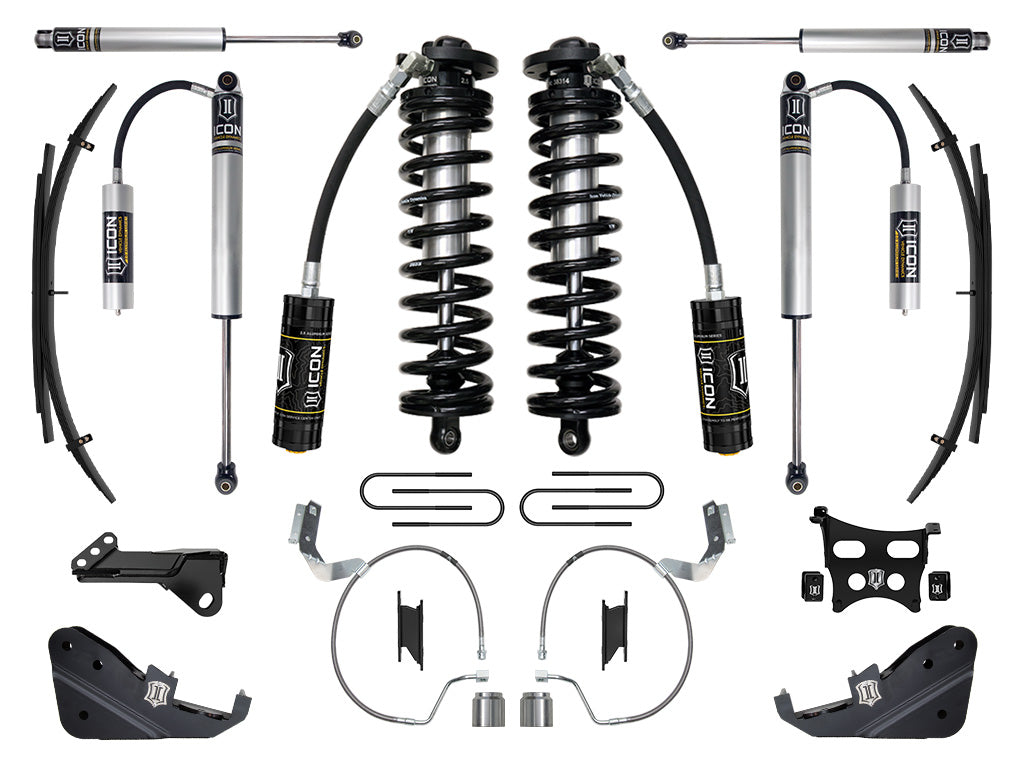

ICON's 4-5.5” Lift Stage 2 Coilover Conversion System features 2.5 Series remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use which can lead to damper fade. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. ICON’s dual opposing steering stabilizer kit featuring ICON 2.0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.0 Aluminum Series remote reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road. The included box kit includes fabricated front sway bar drop brackets to prevent bind heavy-duty aluminum bump stop spacers and high quality stainless steel extended brake lines.

This suspension system features high quality CNC machined laser cut and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system you can rest assured you have the best suspension solution on the market.

Features

  • Fits 2023-2025 F-250 / F-350 4WD applications
  • Stainless steel braided front brake lines
  • Leaf spring expansion packs improve ride quality and provide 2" of rear lift
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • Corrosion resistant anodized steering stabilizer and rear shock bodies with 5/8" shafts
  • Shocks are fully rebuildable and re-tunable
  • Lifetime guarantee against coil spring breakage or sagging
  • Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
  • Bolt-in system fits in OE coil bucket location
  • Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • ICON 2.0 Aluminum Series remote reservoir rear shocks
  • Increased wheel travel and ride quality over stock
  • Radius arm drop brackets correct geometry and caster for optimal alignment specs
  • Track bar drop bracket reduces track bar angle and corrects bump steer geometry
  • Dual steering stabilizer kit offers increased steering damping
