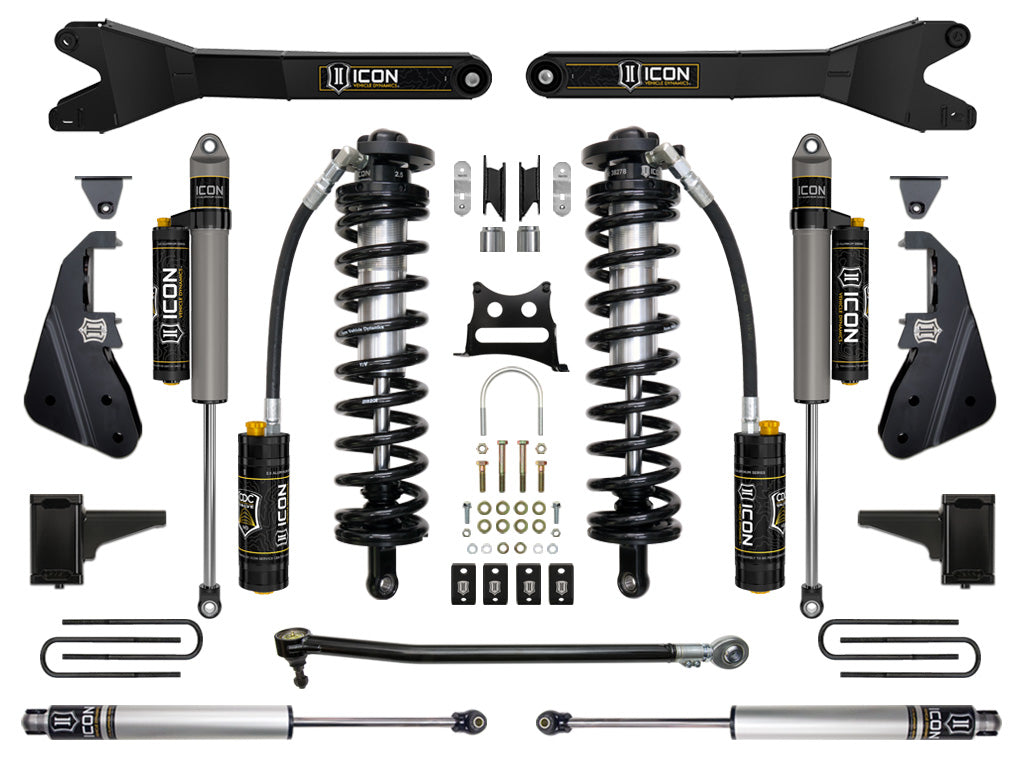

ICON 17-22 Ford F250/F350, 4-5.5" Lift Stage 5 Suspension System, w/Radius Arm
ICON 17-22 Ford F250/F350, 4-5.5" Lift Stage 5 Suspension System, w/Radius Arm
PART #
- Front lift 4-5.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; application note #120: secondary shock options available, contact icon for more details; tech note: 2017-2019 super duty models will have front lift height range of 4-5.
- 5 over stock; tech note: 2020-2022 super duty models without tremor package will have front lift height range of 4.
- 75-6.
- 25" over stock; tech note: 2020-2022 super duty models equipped with tremor package will have front lift height range of 3.
- 75-5.
- 25" over stock; tech note: brake line kit (part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install); tech note: track bar bracket part number 64039 is optional, but recommended to correct steering geometry.
- ships in multiple boxes; recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 5.
- 00” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
- 25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
- 25” backspace / 6mm offset; recommended aftermarket tires: 37" x 12.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #6: springs are rated for diesel engines only; application note #8: this system may require a carrier bearing drop bracket kit (33700); application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle; application note #88: removal of the coil centering cup in factory coil bucket required for installation
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K63155R |
| Front Lift Height | 4-5.5" |
| Spring Material | Steel |
| Bushings Included | NO |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 6.25 IN |
| Coils Quantity Front | 2 |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Country of Origin | US |
| Warranty | See Rep |
| Weight (lbs) | 312 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Bolt-in system fits in OE coil bucket location
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- ICON CDC Valve allows quick and easy end user compression adjustability
- Fabricated radius arms offer on vehicle caster adjustment increased strength and improved tire clearance at steering lock
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Eibach coil springs guaranteed for life against sagging or breakage
- Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- FK Rod End bearings for extended longevity and minimal deflection
- Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift depending on year model of truck
- Increased wheel travel and ride quality over stock
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

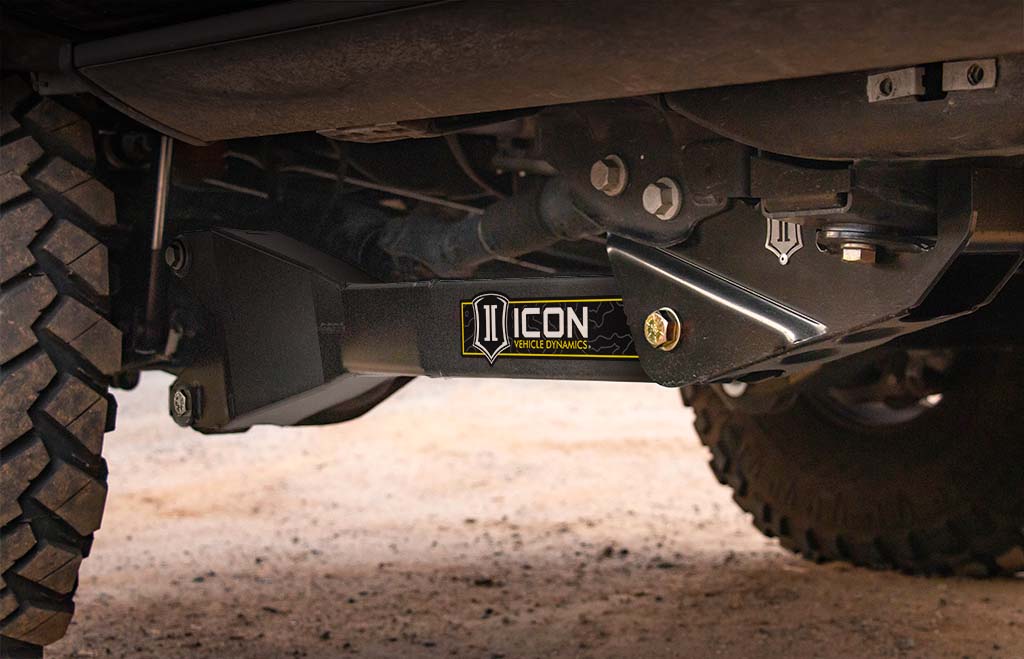

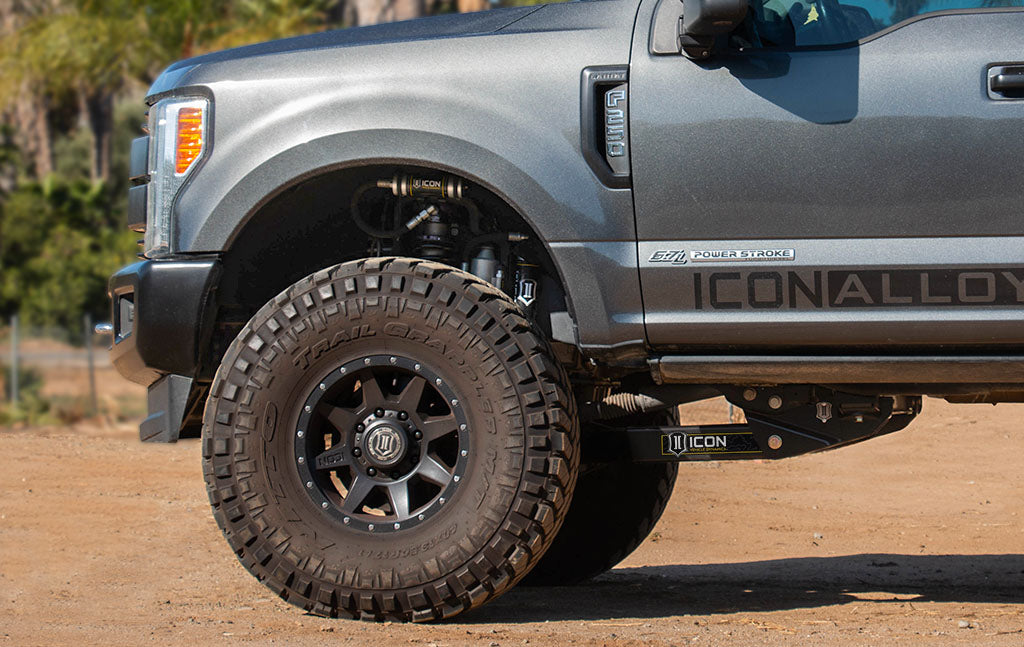

This Stage 5 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
