ICON 2017-2023 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 1 Coilover System w/ Expansion Packs

Name: ICON 2017-2023 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 1 Coilover System w/ Expansion Packs
Brand: ICON Vehicle Dynamics
SKU: K63141L
Price: 3989.14 USD
Availability: InStock

PART #

$3,989.14

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Features, Important Notes, Specifications, and Fitment data, before making a purchase. Components contained in images and descriptions may change based upon your selections.

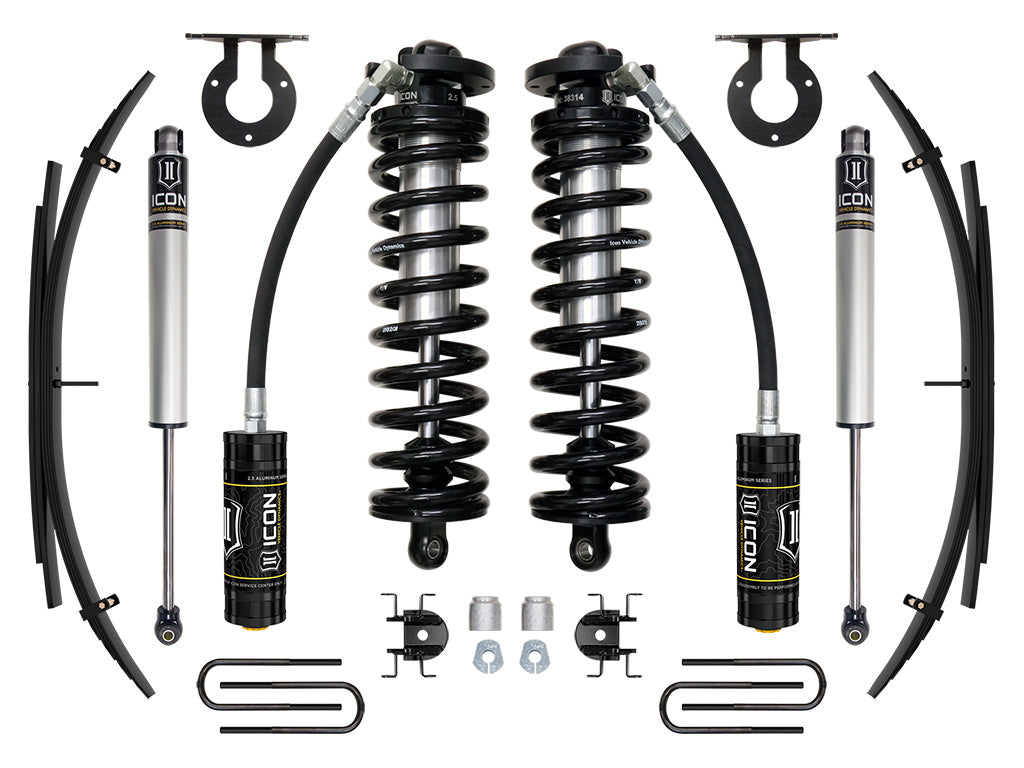

The ICON coilover conversion suspension system is a great way to lift your 4WD 2017-2023 Ford F-250/F-350 Super Duty while improving ride quality and performance. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 1 System is comprised of 2.5 Series remote reservoir coilovers that are adjustable from 2.5-3” or 3.25-3.75 of front lift over stock (depending on year model and option package), alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.0 Aluminum Series internal reservoir rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Features

Ride height adjustable 2.5 Series remote reservoir coilovers provide 2.5-3" or 3.25-3.75" of front lift over stock
Vehicle specific tuned internal reservoir 2.0 Aluminum Series rear shocks
Application specific alignment Cams ensure proper caster alignment
Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
Improved ride quality and performance compared to stock with no change in towing capacity
Less body-roll than stock
Lifetime guarantee that springs won’t sag or break
No drive shaft modifications required

Oem wheels & tires fitment: yes; application note #88: removal of the coil centering cup in factory coil bucket required for installation.
; application note #120: secondary shock options available, contact icon for more details.
; application note #151: fits single rear wheel models only; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; application note #166: if equipped with dynamic bending headlamps and/or onboard scales part # 611081 is also required; application note #209: reduction in rear spring rate may reduce accuracy of onboard scales, if equipped; tech note: will not fit 2024 models; tech note: replaces oe rear blocks for .
5" of rear lift over stock on f-250.
Lowers f-350 rear ride height by .
5" compared to stock.
; tech note: 2017-2019 super duty models will have front lift height range of 2.
5-3" over stock; tech note: 2020-2022 super duty models without tremor package will have front lift height range of 3.
25-3.
75" over stock; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
00” backspace / 6mm offset; tech note: 2020-2022 super duty models equipped with tremor package will have front lift height range of 2.
25-2.
75" over stock; tech note: 2023 super duty diesel models without tremor package will have front lift height range of 2.
5-3" over stock; tech note: 2023 super duty diesel models equipped with tremor package will have front lift height range of 1.
5-2" over stock; tech note: 2023 super duty gas models without tremor package will have front lift height range of 3-3.
5" over stock; tech note: 2023 super duty gas models equipped with tremor package will have front lift height range of 2-2.

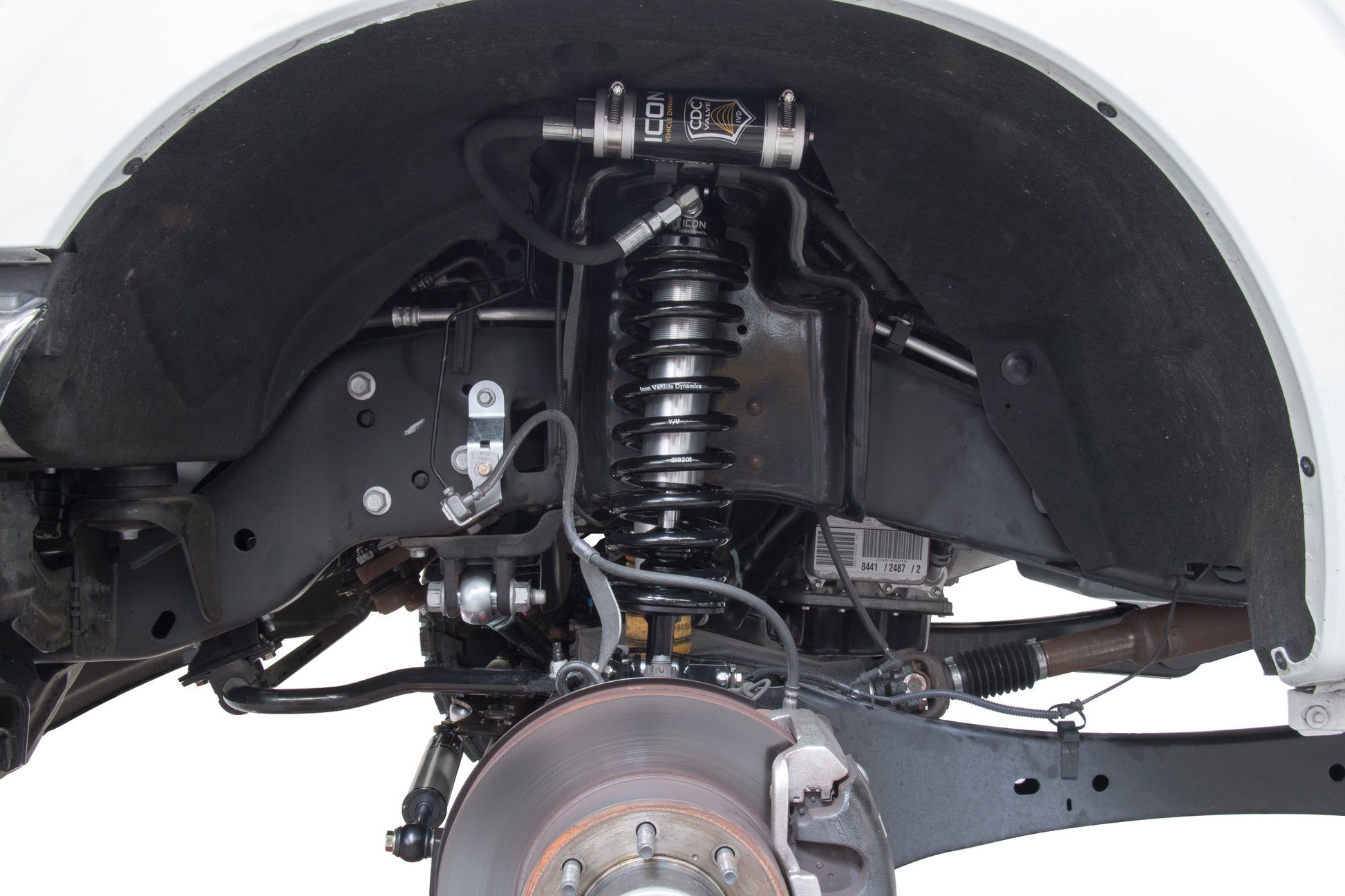

5" over stock; tech note: brake line kit (part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install); tech note: icon track bar bracket part # 64039 is also recommended to correct bump steer geometry; tech note: due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness.
If adequate clearance cannot be achieved, please contact icon customer service.
; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket tires: 35" x 12.
50" (37" x 12.
50" tires may fit but fender trimming and modifications will be required.
); application note #1: only fits 4wd models; application note #3: will not fit f-350/f-450 cab & chassis models; application note #30: an adjustable track bar may be needed to realign the axle from left to right, or to add additional strength; application note #55: shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle

Quick SpecsOverview:

Maximum Lift Height Front: 3.75 IN
Maximum Lift Height Rear: .5 IN
Leaf Spring Material: Steel
Leaf Spring Color: Black
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Coil Spring Material: Steel
Maximum Lift: 3 IN
Leaf Spring Leaf Quantity: 7
Coils Quantity Front: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 64038 - 17-25 FSD ADJ TRACK BAR KIT
Add-On Part: 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT
Add-On Part: 611081 - F-SERIES DYNAMIC HEADLAMP REAR SENSOR KIT
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Quantity Front: 2
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5 IN
Maximum Lift Front: 3.75 IN
Maximum Lift Rear: 2 IN
Minimum Lift Front: 2.5 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2 IN
Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Title: ICON 2017-2023 Ford F-250/F-350 Super Duty 4WD 2.5-3" Lift Stage 1 Coilover System w/ Expansion Packs
