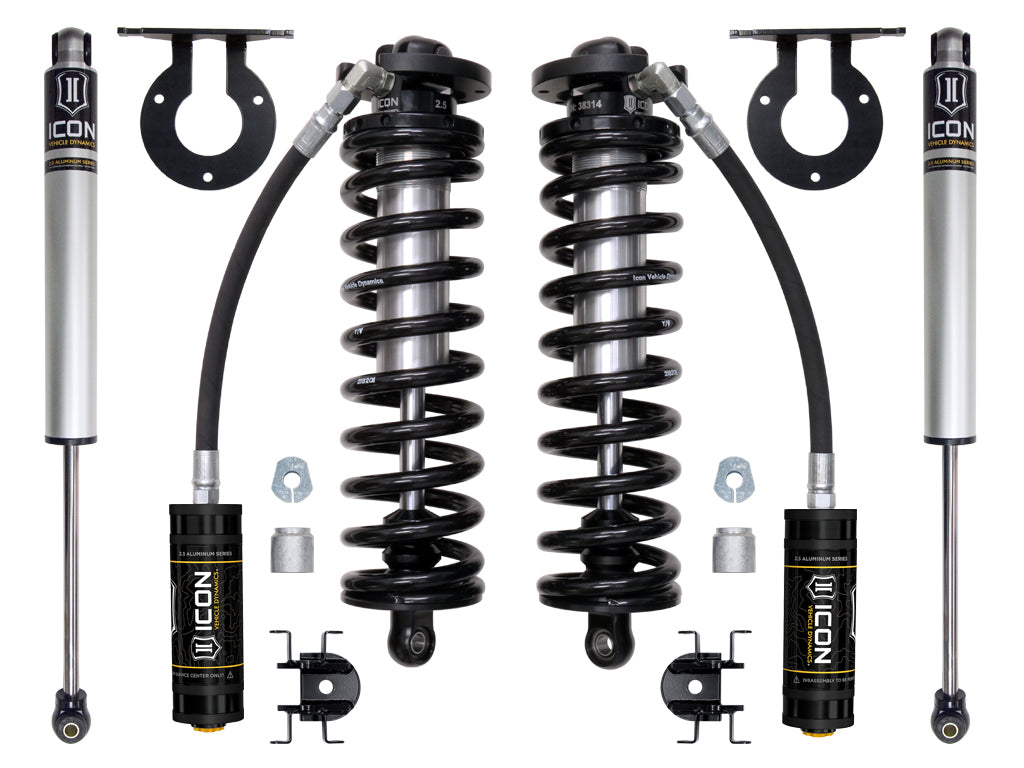

ICON 2017-2023 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 1 Coilover Conversion System
ICON 2017-2023 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 1 Coilover Conversion System
PART #
- Front lift 2.5-3"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; application note #88: removal of the coil centering cup in factory coil bucket required for installation.
- application note #120: secondary shock options available, contact icon for more details; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; tech note: will not fit 2024 models; tech note: 2017-2019 super duty models will have front lift height range of 2.
- 5-3" over stock; tech note: 2020-2022 super duty models without tremor package will have front lift height range of 3.
- 25-3.
- 75" over stock; tech note: 2020-2022 super duty models equipped with tremor package will have front lift height range of 2.
- 25-2.
- 75" over stock; tech note: 2023 super duty diesel models without tremor package will have front lift height range of 2.
- 5-3" over stock; tech note: 2023 super duty diesel models equipped with tremor package will have front lift height range of 1.
- 5-2" over stock; tech note: 2023 super duty gas models without tremor package will have front lift height range of 3-3.
- 5" over stock; recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 5.
- 00” backspace / 6mm offset; tech note: 2023 super duty gas models equipped with tremor package will have front lift height range of 2-2.
- 5" over stock; tech note: brake line kit (part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install); tech note: included rear shocks are compatible with 0-2" of rear lift over stock; tech note: due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness.
- If adequate clearance cannot be achieved, please contact icon customer service.
- recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
- 25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
- 25” backspace / 6mm offset; recommended aftermarket tires: 35" x 12.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #1: only fits 4wd models; application note #3: will not fit f-350/f-450 cab & chassis models; application note #30: an adjustable track bar may be needed to realign the axle from left to right, or to add additional strength; application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K63141 |
| Front Lift Height | 2.5-3" |
| Maximum Lift Height Front | 3 IN |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Coil Spring Color | Black |
| Coil Spring Material | Steel |
| Maximum Lift | 3 IN |
| Coils Quantity Front | 2 |
| Front Spring Rate Type | Linear |
| Active or Passive Suspension | Passive |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Coil Quantity Front | 2 |
| Front Reservoir Style | Remote |
| Front Shock Body Diameter | 2.5 IN |
| Maximum Lift Front | 3 IN |
| Minimum Lift Front | 2.5 IN |
| Tires Fitment | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Country of Origin | US |
| Warranty | 1 Years |
| Weight (lbs) | 78 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift depending on year model of truck
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Eibach coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2023 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
