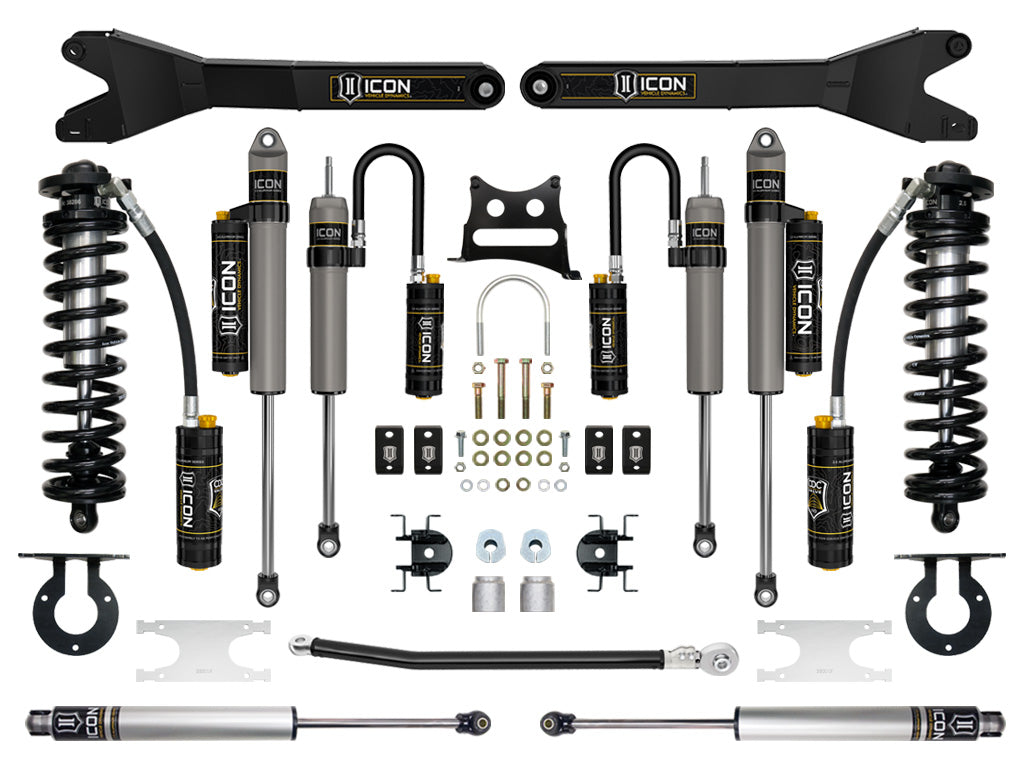

ICON 2005-2016 Ford F250/F350, 2.5-3" Lift, Stage 6 Coilover Conversion System

Name: ICON 2005-2016 Ford F250/F350, 2.5-3" Lift, Stage 6 Coilover Conversion System
Brand: ICON Vehicle Dynamics
SKU: K63106
Price: 8809.53 USD
Availability: OutOfStock

PART #

$8,809.53

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Features, Important Notes, Specifications, and Fitment data, before making a purchase. Components contained in images and descriptions may change based upon your selections.

This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Their on vehicle caster adjustment allows for proper caster while eliminating the need for caster bushings or drop brackets. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Features

Bolt-in system fits in OE coil bucket location
Eibach coil springs guaranteed for life against sagging or breakage
Fabricated radius arms offer on vehicle caster adjustment increased strength and improved tire clearance at steering lock
FK Rod End bearings for extended longevity and minimal deflection
Ride height adjustable coilovers (2.5-3" of lift over stock)
Decreased body roll and improved on and off-road ride dynamics
Vehicle-specific shock valving provides unparalleled ride quality and control
Shocks are fully rebuildable and revalveable
Coilover conversion allows for addition of secondary shock
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
Corrosion resistant anodized aluminum shock bodies on rear and secondary front shocks

Oem wheels & tires fitment: yes; tech note: 2005-2016 f-250s require 4” rear blocks with 15” u-bolt kit to sit level with 2.
5” lifted front.
Icon block kit part # 194275 and u-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended.
; ships in multiple boxes; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
00” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
25” backspace / 6mm offset; recommended aftermarket tires: 35" x 12.
50" (larger tires may fit but fender trimming and modifications will be required.
); application note #6: springs are rated for diesel engines only; application note #55: shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle; application note #88: removal of the coil centering cup in factory coil bucket required for installation.
; application note #94: wide steer equipped trucks require stabilizer part number 66515 qty 2

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3 IN
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Title: 05-16 FORD F250/F350 2.5-3" STAGE 6 COILOVER CONVERSION SYSTEM

Additional Specifications:

Country of Origin: US
Warranty: See Rep
Weight (lbs): 253.0
Vehicle Specific Fitment: Y

Instructions

I37705CP_REVB.pdf
