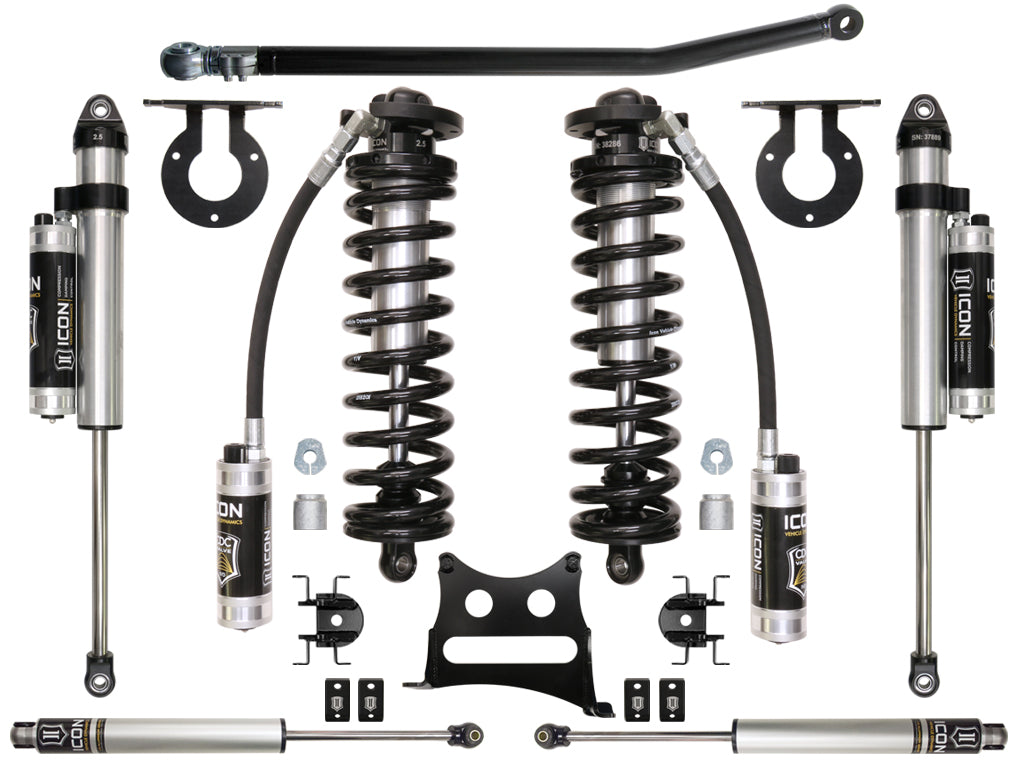

ICON 2005-2016 Ford F250/F350, 2.5-3" Lift, Stage 4 Coilover Conversion System
ICON 2005-2016 Ford F250/F350, 2.5-3" Lift, Stage 4 Coilover Conversion System
PART #
- Front lift 2.5-3"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; tech note: 2005-2016 f-250s require 4” rear blocks with 15” u-bolt kit to sit level with 2.
- 5” lifted front.
- Icon block kit part # 194275 and u-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended.
- ships in multiple boxes; recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 5.
- 00” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
- 25” backspace / 6mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
- 25” backspace / 6mm offset; recommended aftermarket tires: 35" x 12.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #6: springs are rated for diesel engines only; application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle; application note #88: removal of the coil centering cup in factory coil bucket required for installation.
- application note #94: wide steer equipped trucks require stabilizer part number 66515 qty 2
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K63104 |
| Front Lift Height | 2.5-3" |
| Spring Material | Steel |
| Bushings Included | NO |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 3 IN |
| Coils Quantity Front | 2 |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Country of Origin | US |
| Warranty | See Rep |
| Weight (lbs) | 138 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features

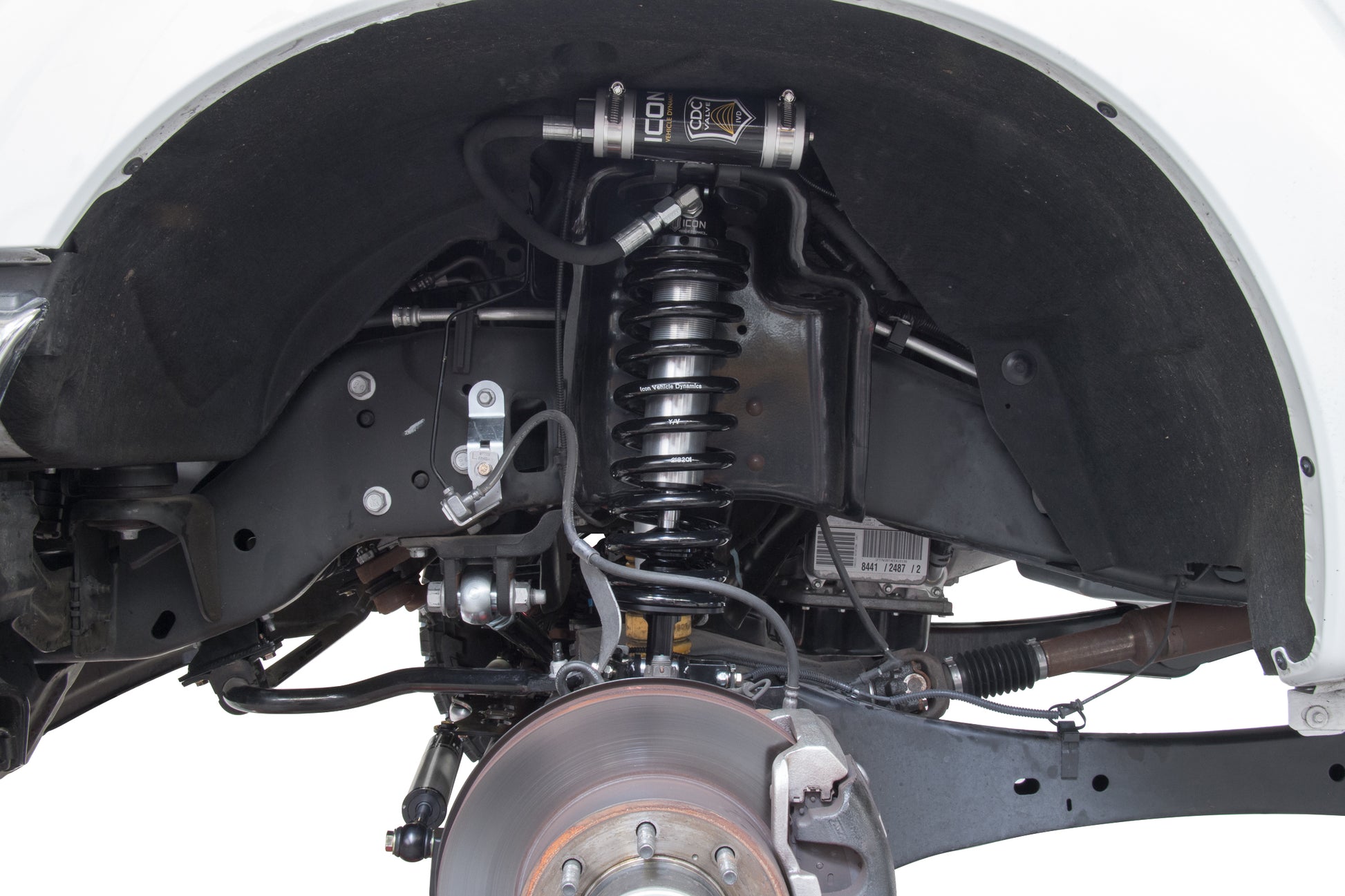

- Bolt-in system fits in OE coil bucket location
- FK Rod End bearings for extended longevity and minimal deflection
- Ride height adjustable coilovers (2.5-3")
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Corrosion resistant anodized aluminum rear shock bodies with 7/8" shafts
- Eibach coil springs guaranteed for life against sagging or breakage
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON's 2.5 Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2016 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
