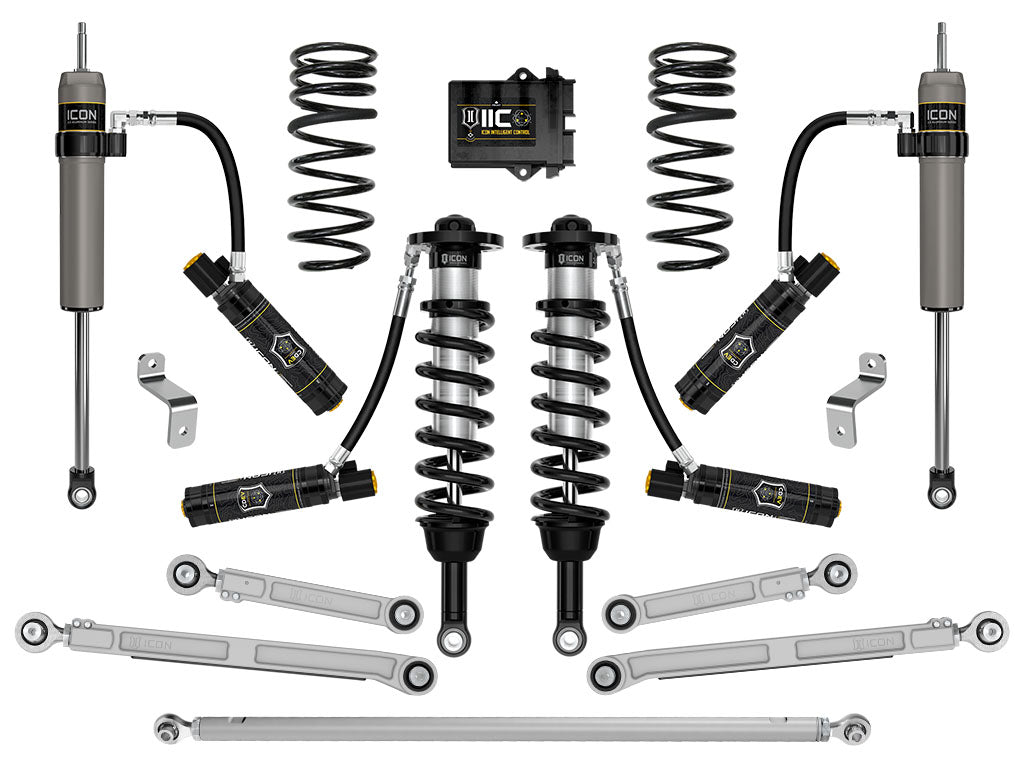

ICON 2023-2026 Toyota Sequoia TRD Pro, 1-2.5" Lift, Stage 10 2.5 Suspension System, Billet

Name: ICON 2023-2026 Toyota Sequoia TRD Pro, 1-2.5" Lift, Stage 10 2.5 Suspension System, Billet
Brand: ICON Vehicle Dynamics
SKU: K53400
Price: 9331.22 USD
Availability: OutOfStock

PART #

$9,331.22

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Features, Important Notes, Specifications, and Fitment data, before making a purchase. Components contained in images and descriptions may change based upon your selections.

Rounding out the Stage 10 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2026 Toyota Sequoia. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series CDEV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

Features

Vehicle specific design for 2023-2025 Toyota Sequoia TRD Pro
On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable
2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Adjustable front ride heights from 1-2.5” of front lift over stock
Application specific coilover length allows use with stock Sequoia TRD Pro UCAs
Allows for increased wheel travel without overstressing OE components
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment

Oem wheels & tires fitment: yes; application note #198: an ios operated device is required to run icon intelligent control app; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
75” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 6” backspace / 25mm offset; recommended aftermarket tires: 35" x 12.
50" (minor fender trimming and modifications may be required); application note #55: shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
; application note #85: advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; application note #189: for sequoia trd pro icon diff drop (part# 55156) is recommended but not required.
If installing icon diff drop, icon skid plate spacer kit (part# 55164) is also required.
; application note #190: designed for use with stock billet trd front upper control arms

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2.5 IN
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Add-On Part: 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Electronic
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5 IN
Maximum Lift Front: 2.5 IN
Maximum Lift Rear: 2 IN
Minimum Lift Front: 1 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 2.5 IN
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Reservoir Style: Remote
Title: ICON 2023-2025 Toyota Sequoia TRD Pro 1-2.5" Lift Stage 10 2.5 Suspension System Billet

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shock Absorbers, IIC Module; Limited Lifetime-Coil Springs, Control Arms, Track Bar; Excludes Wearable Items
Weight (lbs): 189.0
Vehicle Specific Fitment: Y

Instructions

I54202_REVA.pdf

Fitment

: N/A
