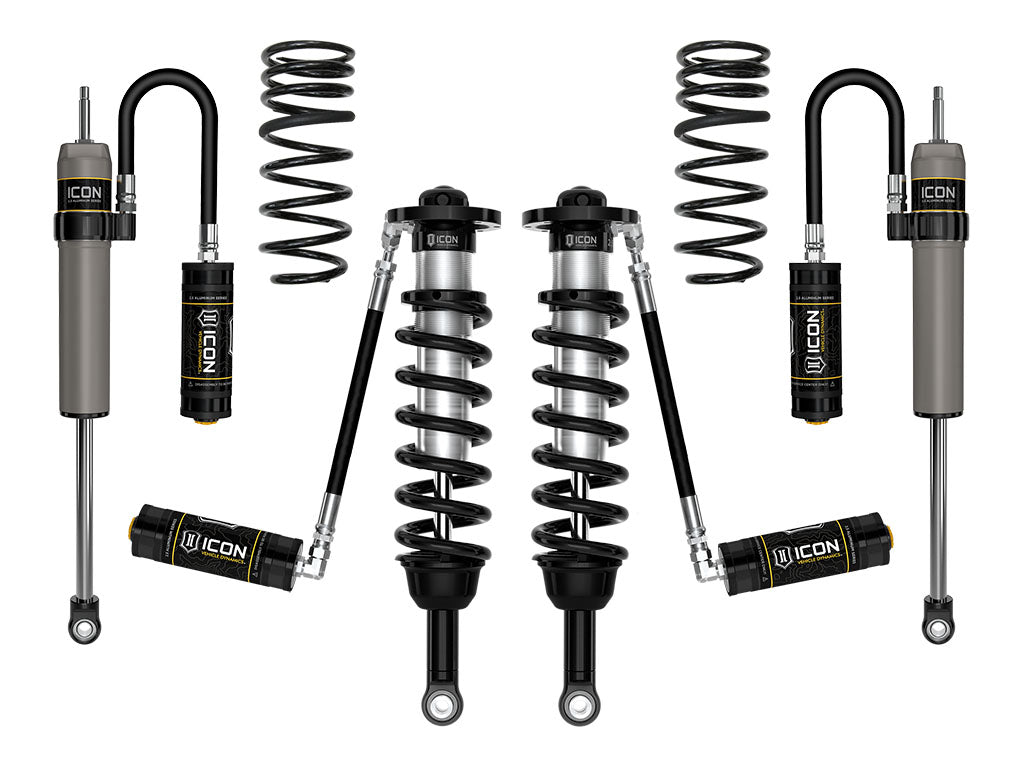

ICON 2023-2026 Toyota Sequoia TRD Pro, 1-2.5" Lift, Stage 3 2.5 Suspension System

Name: ICON 2023-2026 Toyota Sequoia TRD Pro, 1-2.5" Lift, Stage 3 2.5 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K53393
Price: 3779.12 USD
Availability: OutOfStock

PART #

$3,779.12

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Features, Important Notes, Specifications, and Fitment data, before making a purchase. Components contained in images and descriptions may change based upon your selections.

Rounding out the Stage 3 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2026 Toyota Sequoia. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

Features

Vehicle specific design for 2023-2025 Toyota Sequoia TRD Pro
2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Adjustable front ride heights from 1-2.5” of front lift over stock
Application specific coilover length allows use with stock Sequoia TRD Pro UCAs
Allows for increased wheel travel without overstressing OE components
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable

Oem wheels & tires fitment: yes; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
75” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 6” backspace / 25mm offset; recommended aftermarket tires: 35" x 12.
50" (minor fender trimming and modifications may be required); application note #55: shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
; application note #85: advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; application note #189: for sequoia trd pro icon diff drop (part# 55156) is recommended but not required.
If installing icon diff drop, icon skid plate spacer kit (part# 55164) is also required.
; application note #190: designed for use with stock billet trd front upper control arms

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2.5 IN
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Quantity Front: 2
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5 IN
Maximum Lift Front: 2.5 IN
Maximum Lift Rear: 2 IN
Minimum Lift Front: 1 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 2.5 IN
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Reservoir Style: Remote
Title: ICON 2023-2025 Toyota Sequoia TRD Pro 1-2.5" Lift Stage 3 2.5 Suspension System
