ICON 2024-2026 Toyota Land Cruiser 250 Series, 1.25-3" Lift, Stage 8 Suspension System, CDCV, Tubular
ICON 2024-2026 Toyota Land Cruiser 250 Series, 1.25-3" Lift, Stage 8 Suspension System, CDCV, Tubular
PART #
- Front lift 1.25-3"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; recommended aftermarket wheels: 17x8.
- 5 with 6.
- 32” backspace / 40mm offset; recommended aftermarket wheels: icon alloys - 18x9 with 6.
- 6” backspace / 40mm offset; recommended aftermarket tires: 33" x 11.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #55: shocks are fully serviceable.
- Lift heights indicated are for a stock equipped vehicle.
- application note #85: advertised lift height ranges are for a stock equipped vehicle.
- Increasing weight of vehicle due to accessories will alter lift range.
- application note #155: requires recalibration of advanced driver assistance systems (adas) after install
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53368T |
| Front Lift Height | 1.25-3" |
| Maximum Lift Height Front | 3 IN |
| Maximum Lift Height Rear | 2 IN |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Coil Spring Color | Black |
| Coil Spring Material | Steel |
| Maximum Lift | 3 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Front Spring Rate Type | Linear |
| Active or Passive Suspension | Passive |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Adjustable Compression | Yes |
| Adjustable Control Arm | No |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Coil Quantity Front | 2 |
| Damping Adjustment Type | Manual |
| Front Reservoir Style | Remote |
| Front Shock Body Diameter | 2.5 IN |
| Maximum Lift Front | 3 IN |
| Maximum Lift Rear | 2 IN |
| Minimum Lift Front | 1.25 IN |
| Tires Fitment | Yes |
| Rear Reservoir Style | Remote |
| Rear Shock Body Diameter | 2.5 IN |
| Rear Spring Rate Type | Progressive Dual Rate |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset |
| Reservoir Style | Remote |
| Country of Origin | US |
| Weight (lbs) | 218 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

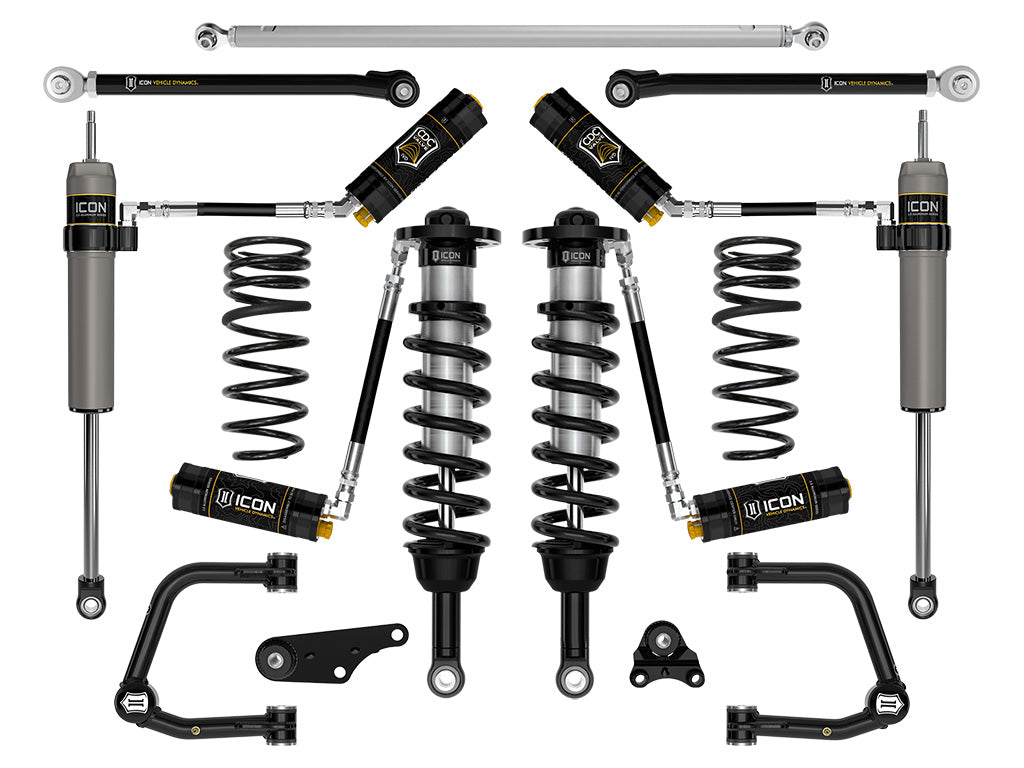

Features
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
- On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
- Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
- FK Rod End bearings for extended longevity and minimal deflection
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment from soft to hard
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
- Adjustable coilovers provide 1.25-3" front lift height over stock
- Tubular UCAs for added strength durability and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The included ICON tubular upper control arm kit is designed to improve the overall performance of the Land Cruiser with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON tubular rear lower links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Toyota Land Cruiser 250 Series Stage 8 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
