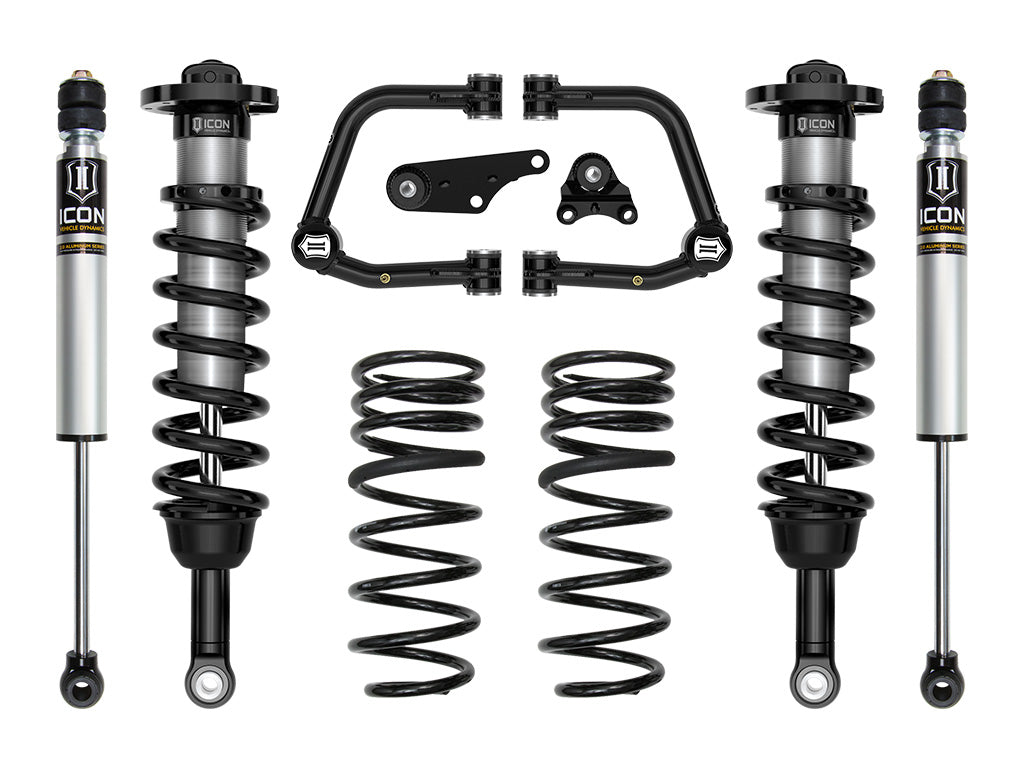

ICON 2024-2026 Toyota Land Cruiser 250 Series, 1.25-3" Lift, Stage 2 Suspension System, Tubular
ICON 2024-2026 Toyota Land Cruiser 250 Series, 1.25-3" Lift, Stage 2 Suspension System, Tubular
PART #
- Front lift 1.25-3"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; recommended aftermarket wheels: 17x8.
- 5 with 6.
- 32” backspace / 40mm offset; recommended aftermarket wheels: icon alloys - 18x9 with 6.
- 6” backspace / 40mm offset; recommended aftermarket tires: 33" x 11.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #30: an adjustable track bar is recommended to realign the axle but not required; application note #55: shocks are fully serviceable.
- Lift heights indicated are for a stock equipped vehicle.
- application note #85: advertised lift height ranges are for a stock equipped vehicle.
- Increasing weight of vehicle due to accessories will alter lift range.
- application note #155: requires recalibration of advanced driver assistance systems (adas) after install
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53362T |
| Front Lift Height | 1.25-3" |
| Maximum Lift Height Front | 3 IN |
| Maximum Lift Height Rear | 2 IN |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Coil Spring Color | Black |
| Coil Spring Material | Steel |
| Maximum Lift | 3 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Front Spring Rate Type | Linear |
| Active or Passive Suspension | Passive |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Adjustable Compression | No |
| Adjustable Control Arm | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Coil Quantity Front | 2 |
| Front Reservoir Style | Internal |
| Front Shock Body Diameter | 2.5 IN |
| Maximum Lift Front | 3 IN |
| Maximum Lift Rear | 2 IN |
| Minimum Lift Front | 1.25 IN |
| Tires Fitment | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Rear Spring Rate Type | Progressive Dual Rate |
| Recommended Aftermarket Wheels | 17x8.5 with 6.32” Backspace / 40mm Offset |
| Country of Origin | US |
| Weight (lbs) | 158 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
- Adjustable coilovers provide 1.25-3" front lift height over stock
- Tubular UCAs for added strength durability and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The included ICON tubular upper control arm kit is designed to improve the overall performance of the Land Cruiser with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Toyota Land Cruiser 250 Series Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
