ICON 2024-2026 Toyota Tacoma 1.25-3" Lift, Stage 4 Suspension System, Tubular, Triple Rate Rear Springs

Name: ICON 2024-2026 Toyota Tacoma 1.25-3" Lift, Stage 4 Suspension System, Tubular, Triple Rate Rear Springs
Brand: ICON Vehicle Dynamics
SKU: K53294TS
Price: 4184.94 USD
Availability: InStock

ICON 2024-2026 Toyota Tacoma 1.25-3" Lift, Stage 4 Suspension System, Tubular, Triple Rate Rear Springs

PART #

Freight Notice: $99 LTL Fee Applied At Checkout. See Shipping Policy

$4,184.94

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Low (Live-Chat or Call For Stock)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

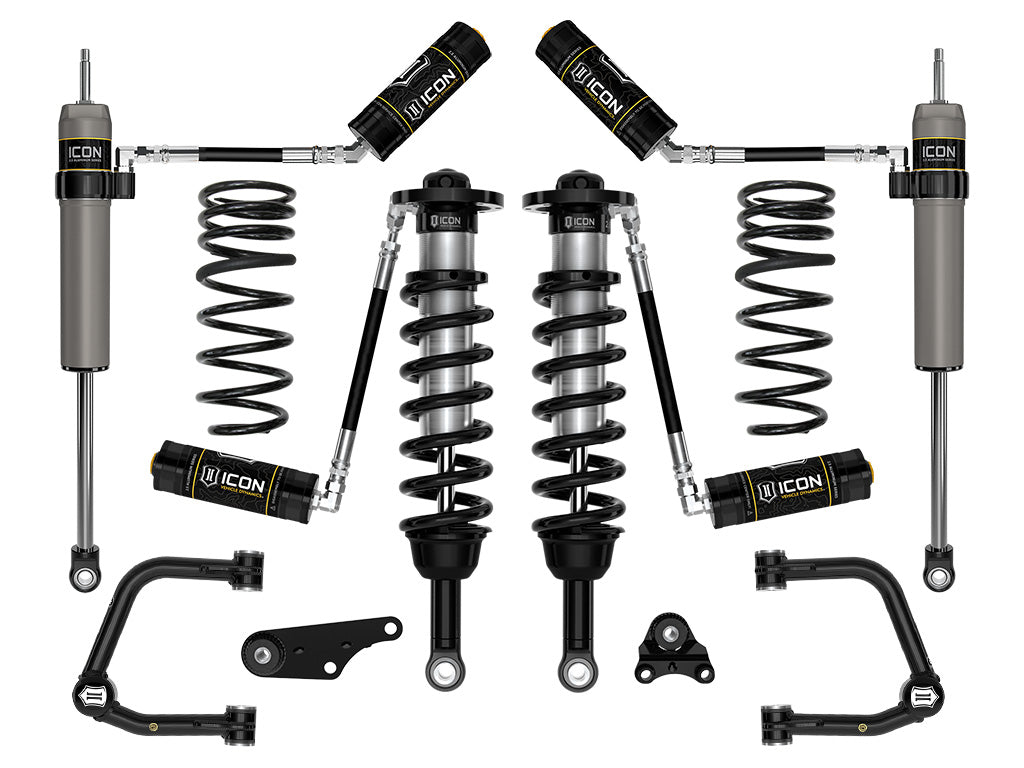

ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024-2026 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Toyota Tacoma Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength durability and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation
Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts

Oem wheels & tires fitment: yes; application note #164: will not fit tacoma submodels equipped with rear leaf springs; application note #169: 4wd models require front differential drop part # 55160; application note #206: this kit is configured for fitment on 4wd models.
If installing onto a 2wd toyota tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality.
2wd specific kits are coming soon!; recommended aftermarket wheels: icon alloys - 17x8.
5 with 5.
75” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 18x9 with 6.
00” backspace / 25mm offset; recommended aftermarket tires: 33" x 11.
50" (larger tires may fit but fender trimming and modifications will be required.
); application note #30: an adjustable track bar is recommended to realign the axle but not required; application note #55: shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
; application note #85: advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
; application note #153: not compatible with adaptive variable suspension (avs) equipped vehicles; application note #155: requires recalibration of advanced driver assistance systems (adas) after install

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3 IN
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
Add-On Part: 54202 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BAR
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Add-On Part: 56100 - 07-14 FJ/03-25 4RUNNER/22-25 TUNDRA/23-25 SEQUOIA REAR SHIN GUARDS
Add-On Part: 56116 - 24-25 TACOMA FRONT SKID PLATE
Add-On Part: 56117 - 24-25 TACOMA/25 4RUNNER GAS TRANSMISSION SKID PLATE
Adjustable Compression: No
Adjustable Control Arm: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Quantity Front: 2
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5 IN
Maximum Lift Front: 3 IN
Maximum Lift Rear: .5 IN
Minimum Lift Front: 1.25 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 2.5 IN
Rear Spring Rate Type: Progressive Triple Rate
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Title: ICON 2024-2025 Toyota Tacoma 1.25-3" Lift Stage 4 Suspension System Tubular Triple Rate Rear Springs

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shock Absorbers, Delta Joint Pros; Limited Lifetime-Coil Springs, Differential Drop Brackets, Control Arms; Excludes Wearable Items
Weight (lbs): 163.0
Vehicle Specific Fitment: Y
