ICON 2022-2026 Toyota Tundra, 6" Lift, Stage 6 Suspension System, Tubular, CDXS
- Front lift 6"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #381: Requires minimum of 20" diameter wheels
- APPLICATION NOTE #405: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
- APPLICATION NOTE #406: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
- APPLICATION NOTE #407: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
- APPLICATION NOTE #408: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
- APPLICATION NOTE #450: Provides 3" of rear lift on a Tundra equipped with TRD Off-Road, TRD Sport, or TRD Rally suspension packages and TRD Pro.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53276TD |
| UPC / GTIN | 840103433288 |
| Front Lift Height | 6" |
| Active or Passive Suspension | Passive |
| Adjustable Compression | Yes |
| Adjustable Control Arm | No |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Bushing(s) Included | No |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Closed |
| Coil Spring End 2 Type | Closed |
| Coil Spring Material | Steel |
| Coil Spring Maximum Inside Diameter | 3 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Damping Adjustment Type | Dual Speed Manual |
| Front Reservoir Style | Remote |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate | 700 PPI |
| Front Spring Rate Type | Linear |
| Grade Type | Performance |
| Maximum Lift | 6 IN |
| Maximum Lift Front | 6 IN |
| Maximum Lift Height Front | 6 IN |
| Maximum Lift Height Rear | 3.5 IN |
| Maximum Lift Rear | 3.5 IN |
| Minimum Lift Front | 5 IN |
| Minimum Lift Rear | 3 IN |
| Mounting Hardware Included | Yes |
| Rear Reservoir Style | Remote |
| Rear Shock Body Diameter | 2.5 IN |
| Rear Spring Rate | 330 PPI, 190 PPI, 116 PPI |
| Rear Spring Rate Type | Progressive Triple Rate |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Strut(s) Included | No |
| Country of Origin | US |
| Installation Instructions | I51010/REVA.pdf |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
What's in the box
| Qty | Part | Description |
|---|---|---|

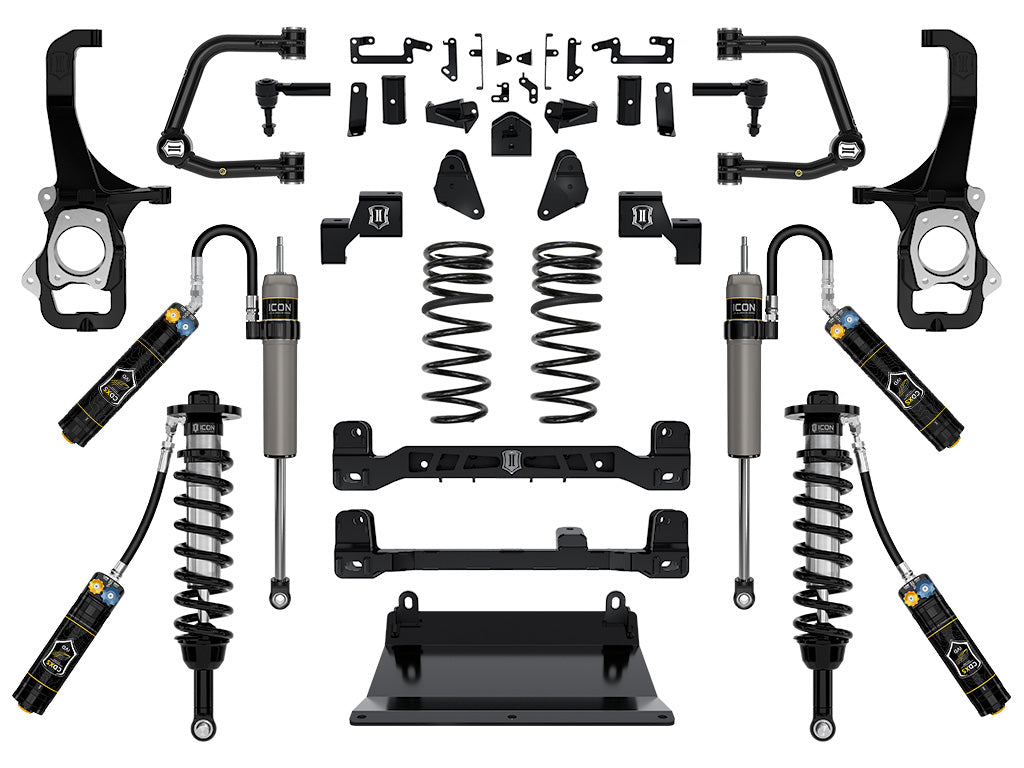

| 1 | 51010 | 22-26 TUNDRA FRONT BOX KIT 1 |
| 1 | 51011 | 22-26 TUNDRA FRONT BOX KIT 2 |
| 1 | 51012 | 22-26 TUNDRA REAR BOX KIT |
| 1 | 51014 | 22-26 TUNDRA FRONT SKID PLATE |
| 1 | 58771X | 22-26 TUNDRA 2.5 VS RR CDXS 6" COILOVER KIT |
| 1 | 51013 | 22-26 TUNDRA REAR 3.5" LIFT TRIPLE RATE COIL SPRING KIT |
| 1 | 58461DJ | 22-26 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KIT |
| 1 | 51017 | 22-26 TUNDRA FRONT SKID PLATE |
| 1 | 57841XP | 22-26 TUNDRA 3.5" REAR 2.5 VS CDXS RR PAIR |
Features
- 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

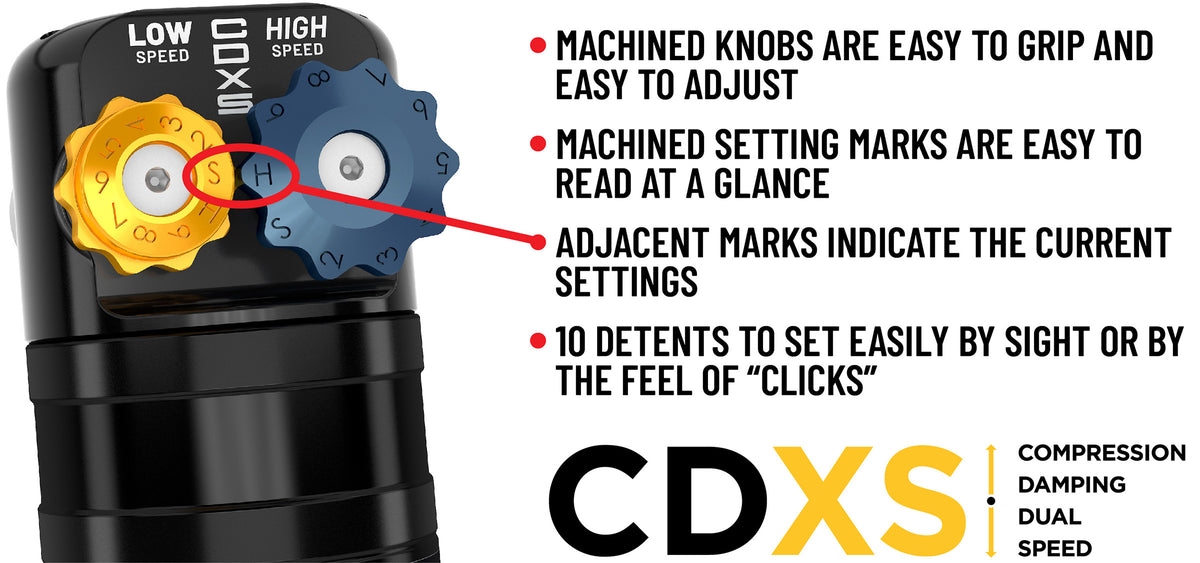

- All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
- Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
- Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
Recommended wheels & tires
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The ICON Vehicle Dynamics Stage 6 6-Inch Suspension System with CDXS delivers an advanced level of suspension performance, adjustability, and control for the 2022-2026 Toyota Tundra. Designed for drivers who want increased tuning capability and exceptional performance across a wide range of driving conditions, this system combines ICON's 2.5 Series shock technology with a complete suite of heavy-duty suspension components engineered for durability, comfort, and off-road capability. Vehicle-specific tuned 2.5 Series front coilovers and rear shocks with remote reservoirs provide superior damping control, increased fluid capacity, and improved heat dissipation for consistent performance during extended off-road use. Equipped with ICON CDXS technology, all shock absorbers feature independent high-speed and low-speed compression damping adjustment, allowing precise tuning of handling response, ride quality, and suspension aggressiveness. The system allows for up to a 40% increase in front wheel travel over stock without overstressing OE components and features adjustable front ride heights from 5-6 inches of lift. Through innovative engineering, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, maximizing ground clearance while minimizing CV joint angles. Tubular upper control arms equipped with ICON's patented Delta Joint Pro (U.S. Pat. 10,731,700) provide increased strength, exceptional durability, improved caster correction for enhanced drivability, and 90 degrees of total articulation for unrestricted suspension movement. The system maintains factory track width while optimized suspension geometry nearly eliminates the bump steer common to stock Tundras.
High-strength one-piece ductile iron steering knuckles, high-clearance CNC laser-cut and brake-formed 1/4-inch steel crossmembers, and an integrated front skid plate provide the strength and protection required for demanding off-road environments. High-angle greaseable outer tie rods, sway bar drop brackets, heavy-duty front and rear bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket work together to maintain proper suspension geometry and reduce bind throughout the suspension's range of motion. ICON-engineered custom triple-rate rear coil springs provide progressive spring rates for a comfortable on-road ride while delivering the stability and control required during aggressive off-road driving. The result is a complete, vehicle-specific suspension system that delivers exceptional ride quality, advanced damping adjustability, and uncompromising off-road capability with the clearance to fit 37-inch tires at full articulation.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
