ICON 2023-2026 Toyota Sequoia, 3-4.25" Lift, Stage 2 3.0 Suspension System, Tubular, CDCV

Name: ICON 2023-2026 Toyota Sequoia, 3-4.25" Lift, Stage 2 3.0 Suspension System, Tubular, CDCV
Brand: ICON Vehicle Dynamics
SKU: K53252T
Price: 8971.9 USD
Availability: OutOfStock

PART #

$8,971.90

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Features, Important Notes, Specifications, and Fitment data, before making a purchase. Components contained in images and descriptions may change based upon your selections.

Rounding out the Stage 2 suspension system are 3.0 Series rear remote reservoir shocks specially tailored for the 2023-2026 Sequoia. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks, offering outstanding performance off-road and a smooth ride on the street. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks, plus their remote reservoirs, offer even greater heat dissipation and resistance to shock fade under hard use. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

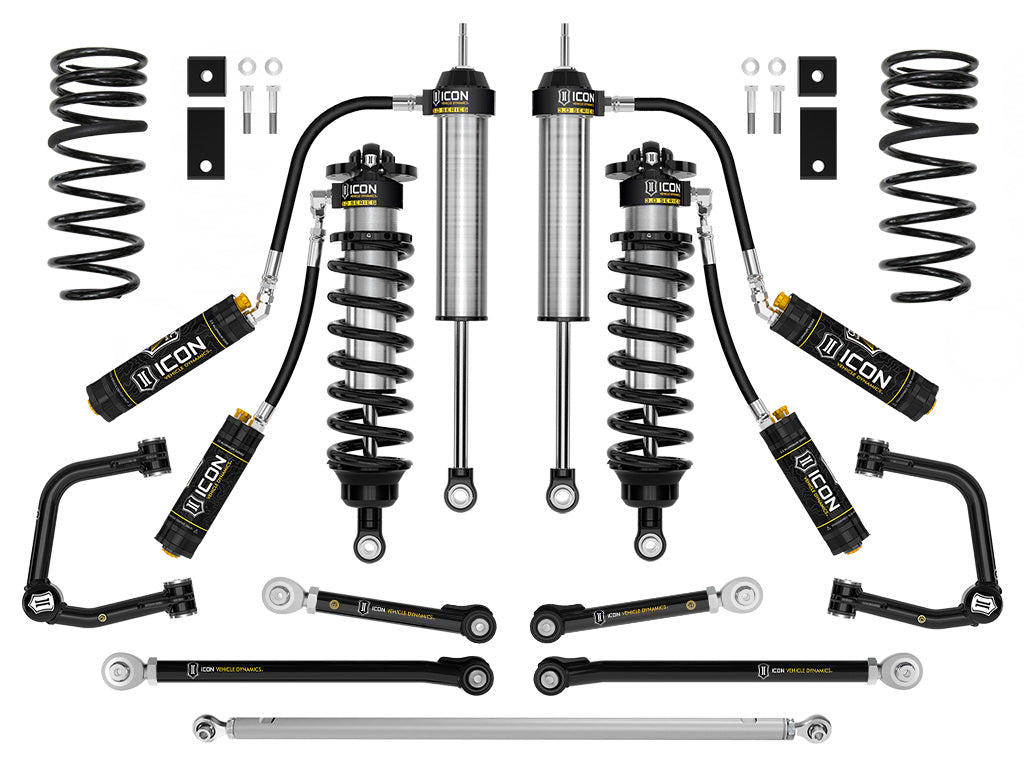

Features

Vehicle specific design for 2023-2025 Toyota Sequoia
Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift depending on the vehicle's stock suspension package
On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
3.0 Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable
3.0 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Adjustable front ride heights from 3-4.25” of front lift over stock
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment from soft to hard
Tubular UCAs for added strength durability and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for full wheel travel without overstressing OE components
Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment

Oem wheels & tires fitment: yes; application note #153: not compatible with adaptive variable suspension (avs) equipped vehicles; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; application note #171: if equipped with trd aluminum skid plate part # 55164 is also required; tech note: most sequoia submodels will have front lift height range of 3-4.
5” over stock and 2" of rear lift over stock.
Submodels equipped with trd off-road package and trd pro will have a front lift height range of 1-2.
5" over stock and remain at stock height in the rear.
If taller rear ride heights are desired, consider kit part number k53252ts.
; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
75” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 6” backspace / 25mm offset; recommended aftermarket tires: 35" x 12.
50" (minor fender trimming and modifications may be required); application note #55: shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
; application note #85: advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
; application note #141: tundra/sequoia equipped with automatic leveling headlights or load-leveling rear height control air suspension, part # 55153 is also required; application note #142: not compatible with vehicles equipped with load-leveling rear height control air suspension.
; application note #149: for 4wd models without trd off-road package icon recommends using icon diff drop (part# 55156) or using toyota trd axles (part# 434200c020 driver / 434100c020 pass).
Failure to do so could result in front axle damage.
Not required for trd pro.

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 4.25 IN
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Add-On Part: 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Manual
Front Reservoir Style: Remote
Front Shock Body Diameter: 3 IN
Maximum Lift Front: 4.25 IN
Maximum Lift Rear: 2 IN
Minimum Lift Front: 3 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 3 IN
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Reservoir Style: Remote
Title: ICON 2023-2025 Toyota Sequoia 3-4.25" Lift Stage 2 3.0 Suspension System Tubular CDCV

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shock Absorbers, Delta Joint Pros; Limited Lifetime-Coil Springs, Front Upper Control Arms, Sway Bar Drop, Rear Links, Track Bar; Excludes Wearable Items
Weight (lbs): 237.0
Vehicle Specific Fitment: Y

Instructions

I51212_REVC.pdf

Fitment

: N/A
