ICON 2023-2026 Toyota Sequoia, 3-4.5" Lift, Stage 4 Suspension System, Tubular
ICON 2023-2026 Toyota Sequoia, 3-4.5" Lift, Stage 4 Suspension System, Tubular
PART #
- Front lift 3-4.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; application note #171: if equipped with trd aluminum skid plate part # 55164 is also required; tech note: most sequoia submodels will have front lift height range of 3-4.
- 5” over stock and 2" of rear lift over stock.
- Submodels equipped with trd off-road package and trd pro will have a front lift height range of 1-2.
- 5" over stock and remain at stock height in the rear.
- If taller rear ride heights are desired, consider kit part number k53234ts.
- recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 5.
- 75” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 6” backspace / 25mm offset; recommended aftermarket tires: 35" x 12.
- 50" (minor fender trimming and modifications may be required); application note #55: shocks are fully serviceable.
- Lift heights indicated are for a stock equipped vehicle.
- application note #85: advertised lift height ranges are for a stock equipped vehicle.
- Increasing weight of vehicle due to accessories will alter lift range.
- application note #142: not compatible with vehicles equipped with load-leveling rear height control air suspension.
- application note #149: for 4wd models without trd off-road package icon recommends using icon diff drop (part# 55156) or using toyota trd axles (part# 434200c020 driver / 434100c020 pass).
- Failure to do so could result in front axle damage.
- Not required for trd pro.
- application note #153: not compatible with adaptive variable suspension (avs) equipped vehicles
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53234T |
| Front Lift Height | 3-4.5" |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 4.5 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Front Spring Rate Type | Linear |
| Active or Passive Suspension | Passive |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Control Arm | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Front Reservoir Style | Internal |
| Front Shock Body Diameter | 2.5 IN |
| Maximum Lift Front | 4.5 IN |
| Maximum Lift Rear | 2 |
| Minimum Lift Front | 3 IN |
| Minimum Lift Rear | 0 IN |
| Tires Fitment | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Rear Spring Rate Type | Progressive Dual Rate |
| Recommended Aftermarket Tires | 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Reservoir Style | Internal |
| Country of Origin | US |
| Weight (lbs) | 127 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

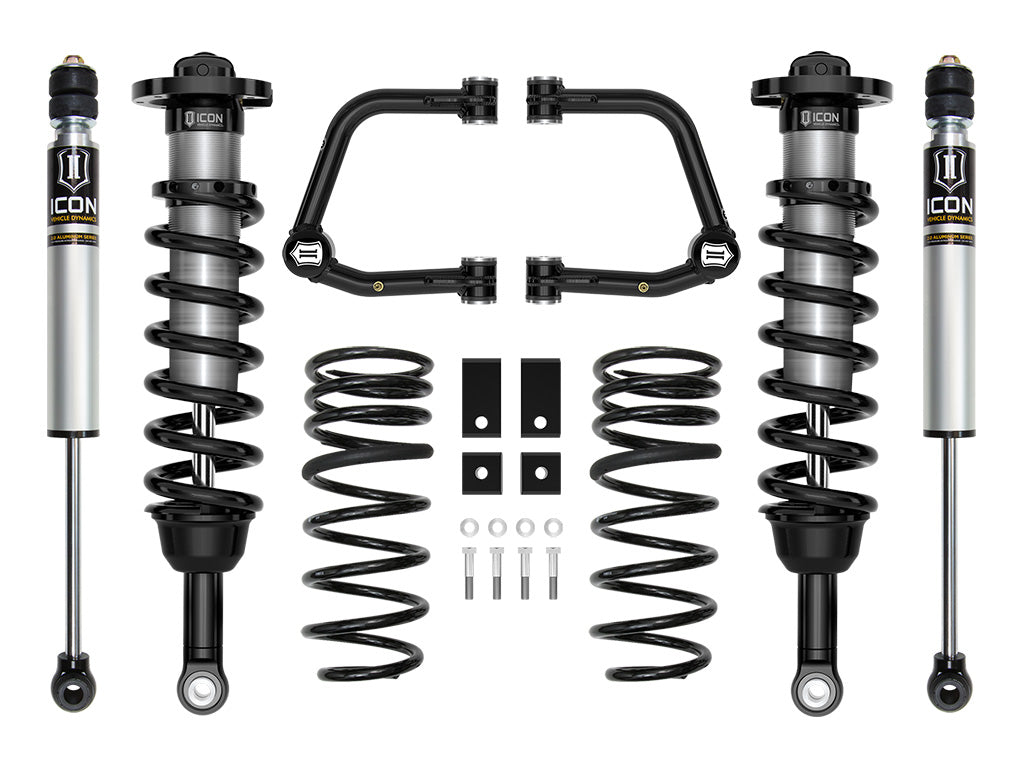

Features
- Vehicle specific design for 2023-2025 Toyota Sequoia
- All ICON shock absorbers are fully rebuildable and re-tunable
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- Adjustable front ride heights from 3-4.5” of front lift over stock
- Tubular UCAs for added strength durability and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift depending on the vehicle's stock suspension package
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

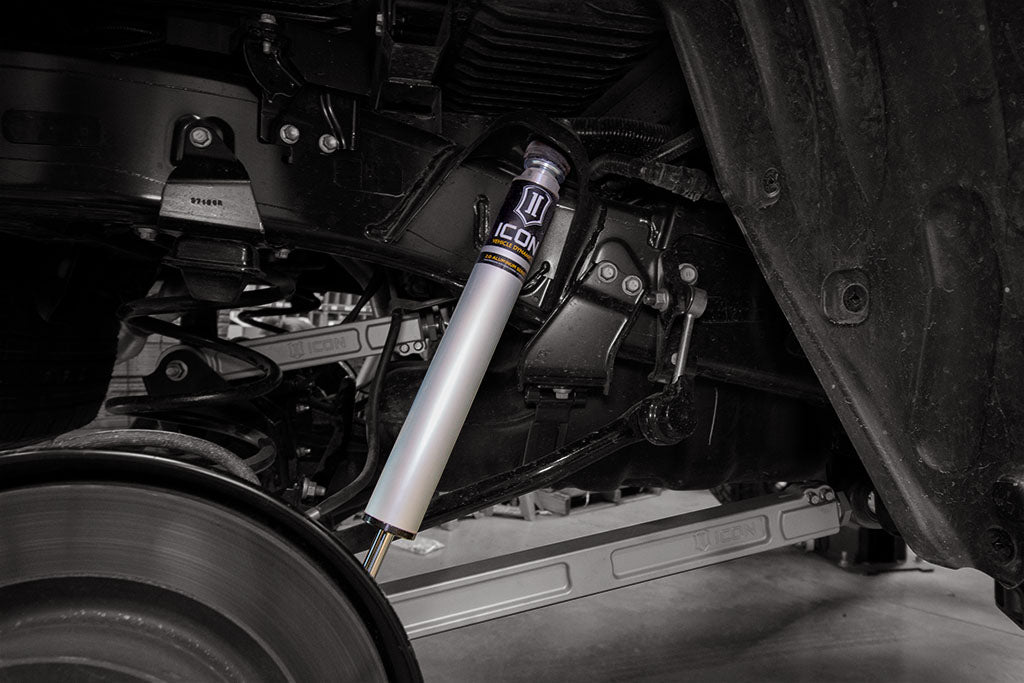

Rounding out the Stage 4 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2026 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
