ICON 2023-2026 Toyota Sequoia, 3-3.75" Lift, Stage 3 Suspension System

Name: ICON 2023-2026 Toyota Sequoia, 3-3.75" Lift, Stage 3 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K53233
Price: 2473.75 USD
Availability: InStock

ICON 2023-2026 Toyota Sequoia, 3-3.75" Lift, Stage 3 Suspension System

PART #

$2,473.75

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: In Stock

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

Rounding out the Stage 3 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2026 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

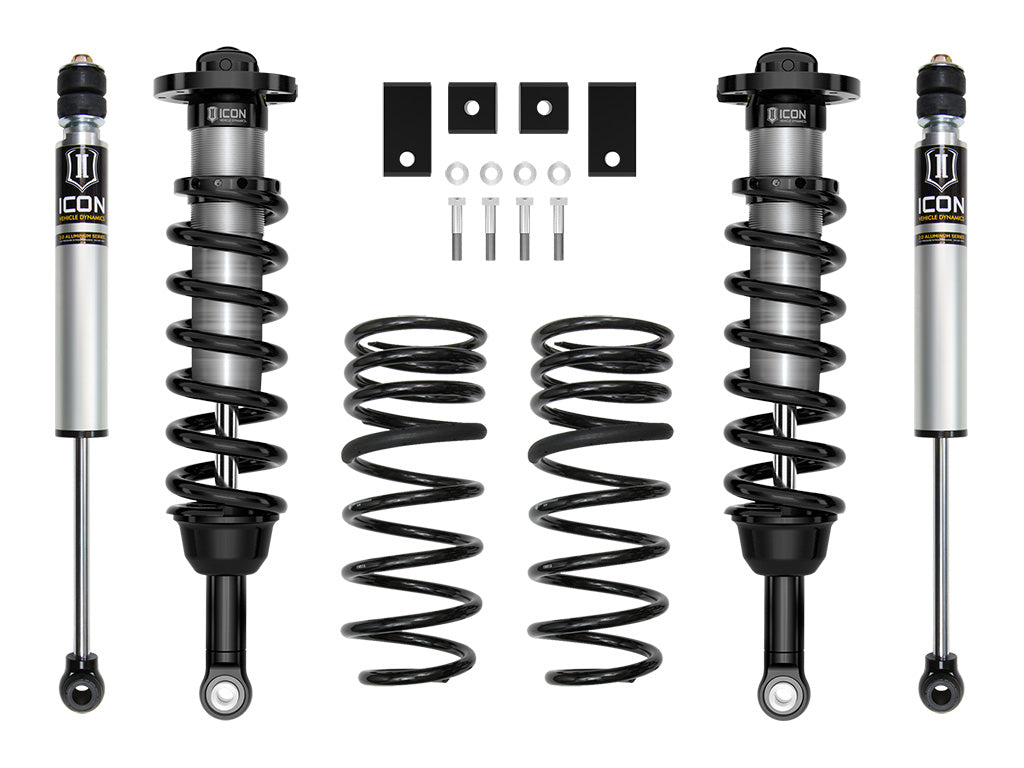

Features

Vehicle specific design for 2023-2025 Toyota Sequoia
2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
Adjustable front ride heights from 3-3.75” of front lift over stock when used with stock UCAs
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for full wheel travel without overstressing OE components
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift depending on the vehicle's stock suspension package
2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
All ICON shock absorbers are fully rebuildable and re-tunable

Oem wheels & tires fitment: yes; application note #153: not compatible with adaptive variable suspension (avs) equipped vehicles; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; application note #171: if equipped with trd aluminum skid plate part # 55164 is also required; application note #188: not compatible with oe trd billet front upper control arms regardless of lift height.
Vehicles equipped with these will require icon delta joint pro ucas (part number 58461dj or 58561dj) for fitment.
; tech note: most sequoia submodels will have front lift height range of 3-3.
75” over stock and 2" of rear lift over stock.
Submodels equipped with trd off-road package and trd pro will have a front lift height range of 1-1.
75" over stock and remain at stock height in the rear.
If taller rear ride heights are desired, consider kit part number k53233s.
; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
75” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 6” backspace / 25mm offset; recommended aftermarket tires: 35" x 12.
50" (minor fender trimming and modifications may be required); application note #55: shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
; application note #85: advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
; application note #142: not compatible with vehicles equipped with load-leveling rear height control air suspension.
; application note #148: icon does not recommend lifting above 2.
25" (tundra)/3.
75" (sequoia) without an icon upper control arm, failure to do so can result in improper wheel alignment and cause damage to front axles on 4wd models; application note #149: for 4wd models without trd off-road package icon recommends using icon diff drop (part# 55156) or using toyota trd axles (part# 434200c020 driver / 434100c020 pass).
Failure to do so could result in front axle damage.
Not required for trd pro.

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3 IN
Coils Quantity Front: 2
Coils Quantity Rear: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 58561DJ - 22-25 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT
Add-On Part: 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Add-On Part: 58461DJ - 22-25 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KIT
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Front Reservoir Style: Internal
Front Shock Body Diameter: 2.5 IN
Maximum Lift Front: 3.75 IN
Maximum Lift Rear: 3 IN
Minimum Lift Front: 3 IN
Minimum Lift Rear: 0 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2 IN
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Reservoir Style: Internal
Title: ICON 2023-2025 Toyota Sequoia 3-3.75" Lift Stage 3 Suspension System
