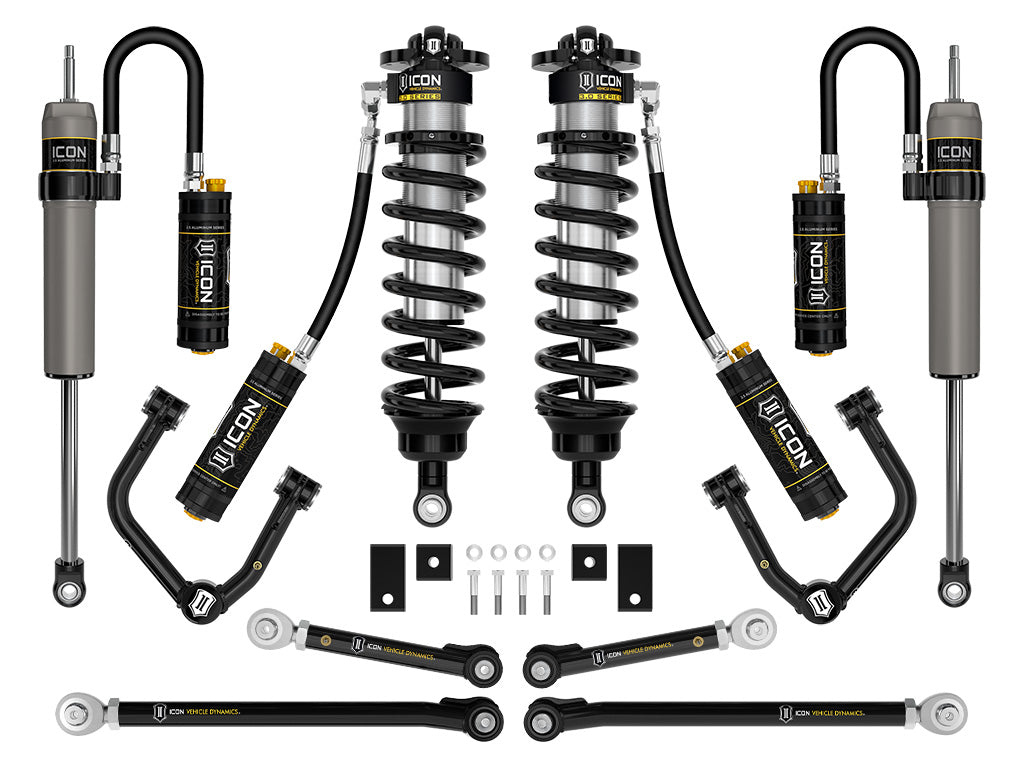

ICON 2022-2026 Toyota Tundra, 2-3.25" Lift, Stage 1, 3.0 Suspension System, Tubular, CDCV
ICON 2022-2026 Toyota Tundra, 2-3.25" Lift, Stage 1, 3.0 Suspension System, Tubular, CDCV
PART #
- Front lift 2-3.25"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; application note #155: requires recalibration of advanced driver assistance systems (adas) after install; application note #171: if equipped with trd aluminum skid plate part # 55164 is also required; tech note: most tundra sub-models equipped with i-force gasoline engine will have front lift height range of 2-3.
- 25" over stock; tech note: most tundra sub-models equipped with i-force max hybrid engine will have front lift height range of 2-2.
- 75" over stock; tech note: tundra sr5 equipped with trd sport suspension package will have lift height range of 3-4.
- 5” over stock; tech note: tundra trd pro will have front lift height range of 0-1.
- 75" over stock; tech note: included rear shocks are compatible with 0-1.
- 5" of rear lift over stock on models equipped with rear coil springs without trd suspension package.
- Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with trd suspension package and trd pro.
- recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 5.
- 75” backspace / 25mm offset; recommended aftermarket tires: 35" x 12.
- 50" (minor fender trimming and modifications may be required); application note #55: shocks are fully serviceable.
- Lift heights indicated are for a stock equipped vehicle.
- application note #85: advertised lift height ranges are for a stock equipped vehicle.
- Increasing weight of vehicle due to accessories will alter lift lange.
- application note #141: tundra/sequoia equipped with automatic leveling headlights or load-leveling rear height control air suspension, part # 55153 is also required; application note #142: not compatible with vehicles equipped with load-leveling rear height control air suspension.
- application note #149: for 4wd models without trd off-road package icon recommends using icon diff drop (part# 55156) or using toyota trd axles (part# 434200c020 driver / 434100c020 pass).
- Failure to do so could result in front axle damage.
- Not required for trd pro.
- application note #153: not compatible with adaptive variable suspension (avs) equipped vehicles
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53211T |
| Front Lift Height | 2-3.25" |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 3.25 IN |
| Coil Spring End 1 Type | Closed |
| Coil Spring End 2 Type | Closed |
| Coils Quantity Front | 2 |
| Front Spring Rate Type | Linear |
| Active or Passive Suspension | Passive |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Adjustable Compression | Yes |
| Adjustable Control Arm | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Coil Quantity Front | 2 |
| Damping Adjustment Type | Electronic |
| Front Reservoir Style | Remote |
| Front Shock Body Diameter | 3 IN |
| Maximum Lift Front | 3.25 IN |
| Minimum Lift Front | 2 IN |
| Rear Reservoir Style | Remote |
| Rear Shock Body Diameter | 2.5 IN |
| Reservoir Style | Remote |
| Country of Origin | US |
| Weight (lbs) | 178 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Vehicle specific design for 2022-2025 Toyota Tundra
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance 20% increase in wheel travel and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
- 3.0 Series front coilovers with ICON’s multi-stage tunable hydraulic “Bump Zone”
- Adjustable front ride heights from 2-3.25” of front lift over stock when used with included tubular UCAs
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment from soft to hard
- Tubular UCAs for added strength durability and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Rounding out the Stage 1 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2026 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
