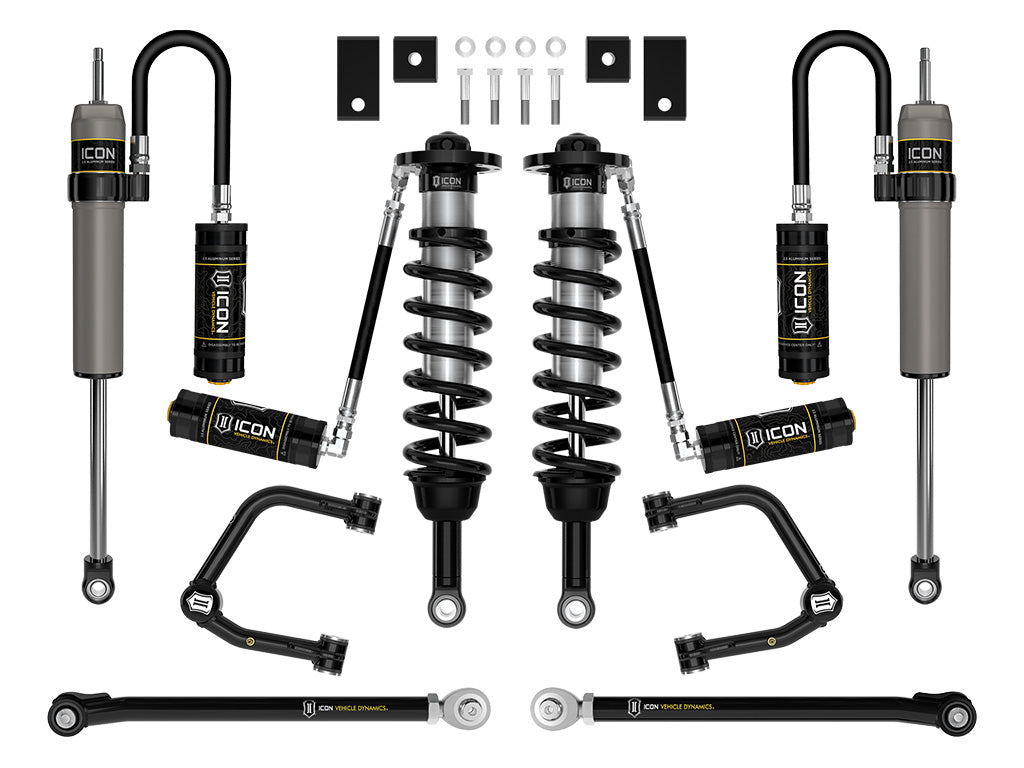

ICON 2022-2026 Toyota Tundra, 2-3.5" Lift, Stage 8, 2.5 Suspension System, Tubular

Name: ICON 2022-2026 Toyota Tundra, 2-3.5" Lift, Stage 8, 2.5 Suspension System, Tubular
Brand: ICON Vehicle Dynamics
SKU: K53198T
Price: 5207.59 USD
Availability: InStock

ICON 2022-2026 Toyota Tundra, 2-3.5" Lift, Stage 8, 2.5 Suspension System, Tubular

PART #

$5,207.59

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Low (Live-Chat or Call For Stock)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

Rounding out the Stage 8 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2026 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

Features

Vehicle specific design for 2022-2025 Toyota Tundra
All ICON shock absorbers are fully rebuildable and re-tunable
2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
Tubular UCAs for added strength durability and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers

Oem wheels & tires fitment: yes; application note #171: if equipped with trd aluminum skid plate part # 55164 is also required; tech note: most tundra sub-models equipped with i-force gasoline engine will have front lift height range of 2-3.
5" over stock; tech note: most tundra sub-models equipped with i-force max hybrid engine will have front lift height range of 2-3" over stock; tech note: tundra sr5 equipped with trd sport suspension package will have lift height range of 3-4.
5” over stock; tech note: tundra trd pro will have front lift height range of 0-1.
75" over stock; tech note: included rear shocks are compatible with 0-1.
5" of rear lift over stock on models equipped with rear coil springs without trd suspension package.
Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with trd suspension package and trd pro.
; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
75” backspace / 25mm offset; recommended aftermarket tires: 35" x 12.
50" (minor fender trimming and modifications may be required); application note #55: shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
; application note #85: advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift lange.
; application note #142: not compatible with vehicles equipped with load-leveling rear height control air suspension.
; application note #149: for 4wd models without trd off-road package icon recommends using icon diff drop (part# 55156) or using toyota trd axles (part# 434200c020 driver / 434100c020 pass).
Failure to do so could result in front axle damage.
Not required for trd pro.
; application note #153: not compatible with adaptive variable suspension (avs) equipped vehicles; application note #155: requires recalibration of advanced driver assistance systems (adas) after install

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3.5 IN
Coils Quantity Front: 2
Front Spring Rate Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 56112 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 REAR FOAM BUMP STOP KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 56113 - 22-24 TUNDRA/23-24 SEQUOIA FRONT FOAM BUMP STOP KIT
Add-On Part: 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
Add-On Part: 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT
Adjustable Compression: No
Adjustable Control Arm: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Quantity Front: 2
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5 IN
Maximum Lift Front: 3.5 IN
Minimum Lift Front: 2 IN
OEM Wheels &
Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 2.5 IN
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Reservoir Style: Remote
Title: ICON 2022-2025 Toyota Tundra 2-3.5" Lift Stage 8 2.5 Suspension System Tubular

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shock Absorbers, Delta Joint Pros; Limited Lifetime-Coil Springs, Control Arms, Sway Bar Drop Brackets; Excludes Wearable Items
Weight (lbs): 143.0
Vehicle Specific Fitment: Y
