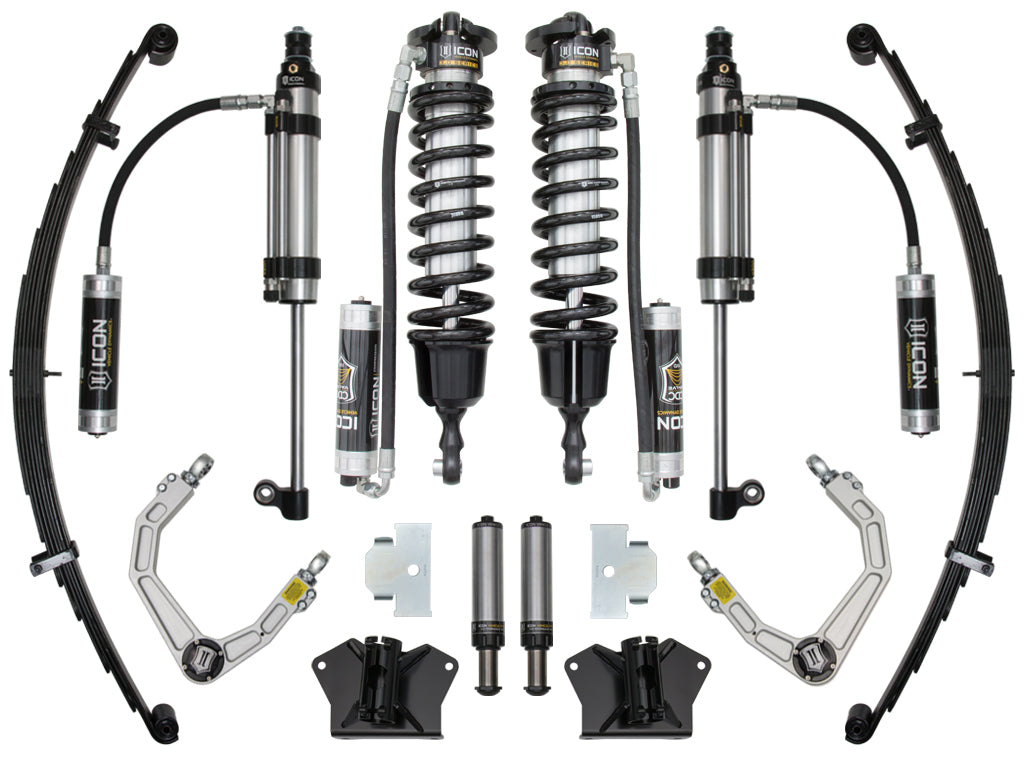

ICON 2007-21 Toyota Tundra, 1.63-3" Lift, 3.0 Stage 3 Suspension System

Name: ICON 2007-21 Toyota Tundra, 1.63-3" Lift, 3.0 Stage 3 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K53167
Price: 9721.75 USD
Availability: OutOfStock

ICON 2007-21 Toyota Tundra, 1.63-3" Lift, 3.0 Stage 3 Suspension System

PART #

$9,721.75

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

Oem wheels & tires fitment: yes; tech note: not compatible with trd rear sway bar kit; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 5.
75” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 6.
00” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
625” backspace / 16mm offset; recommended aftermarket tires: 35" x 12.
50" (larger tires may fit but fender trimming and modifications will be required.
); application note #17: these are stand-alone kits and are not to be used in conjunction with any other aftermarket kits; application note #55: shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle; application note #110: trimming required for recommended tire size; application note #111: bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3.5 IN
Leaf Spring Leaf Quantity: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Title: 07-21 TUNDRA 1.63-3" STAGE 3 3.0 SUSPENSION SYSTEM

Additional Specifications:

Country of Origin: US
Warranty: See Rep
Weight (lbs): 341.0
Vehicle Specific Fitment: Y

Instructions

I158509_REVD.pdf
