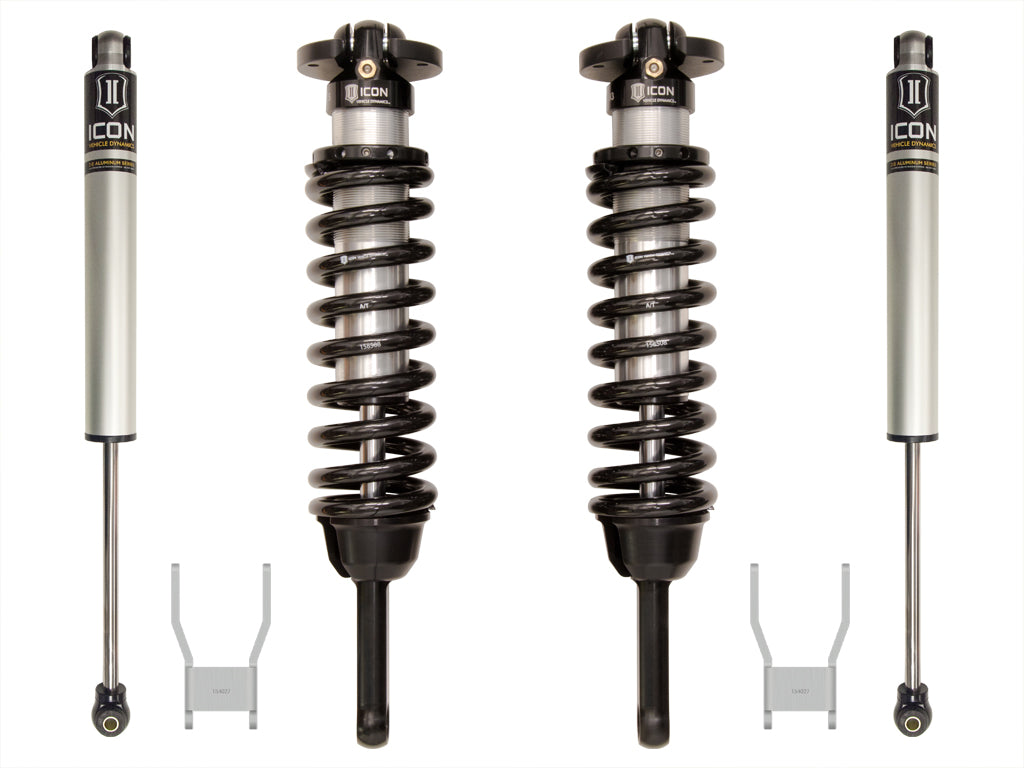

ICON 2012-15 Toyota Hilux, 0-3" Lift, Stage 2 Suspension System
ICON 2012-15 Toyota Hilux, 0-3" Lift, Stage 2 Suspension System
PART #
- Front lift 0-3"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 4.
- 75” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
- 00” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
- 00” backspace / 0mm offset; recommended aftermarket tires: 33" x 11.
- 25" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #47: 700lb/in expedition coil available for heavier equipped vehicles; application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle; application note #82: rear springs can be added for additional rear lift height up to 2’” to match the front 3” lift height adjustment; ships in multiple boxes
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53142 |
| Front Lift Height | 0-3" |
| Spring Rate | 650 PPI |
| Spring Material | Steel |
| Bushings Included | NO |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 3 IN |
| Leaf Spring Bracket Material | Steel |
| Leaf Spring Bracket Color | Silver |
| Leaf Spring Bracket Mount Hole Quantity | 1 |
| Coils Quantity Front | 2 |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Country of Origin | US |
| Warranty | See Rep |
| Weight (lbs) | 57 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from 0-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8” shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear shock with 5/8" shaft
- 100% Bolt-on system - no drilling cutting or welding necessary for install
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Dynamics’ Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind. The varying uses of this vehicle worldwide were acknowledged and catered to in ICON’s research and development process. The Hilux Stage 2 system provides a level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON's Vehicle-specific tuned 2.5” coilover shocks feature an internal reservoir for exceptional cooling properties, and ICON-engineered Eibach coil springs for superior vehicle “feel” throughout the range of travel. These 2.5" coilovers are height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations when desired. ICON 2.0 Aluminum Series monotube rear shocks balance performance of the truck front to rear for a great all-around feel on any terrain. ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads. By utilizing a shackle to lift the rear of the Hilux when the front is set to 3", factory payload rating is retained while allowing more suspension up-travel. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
