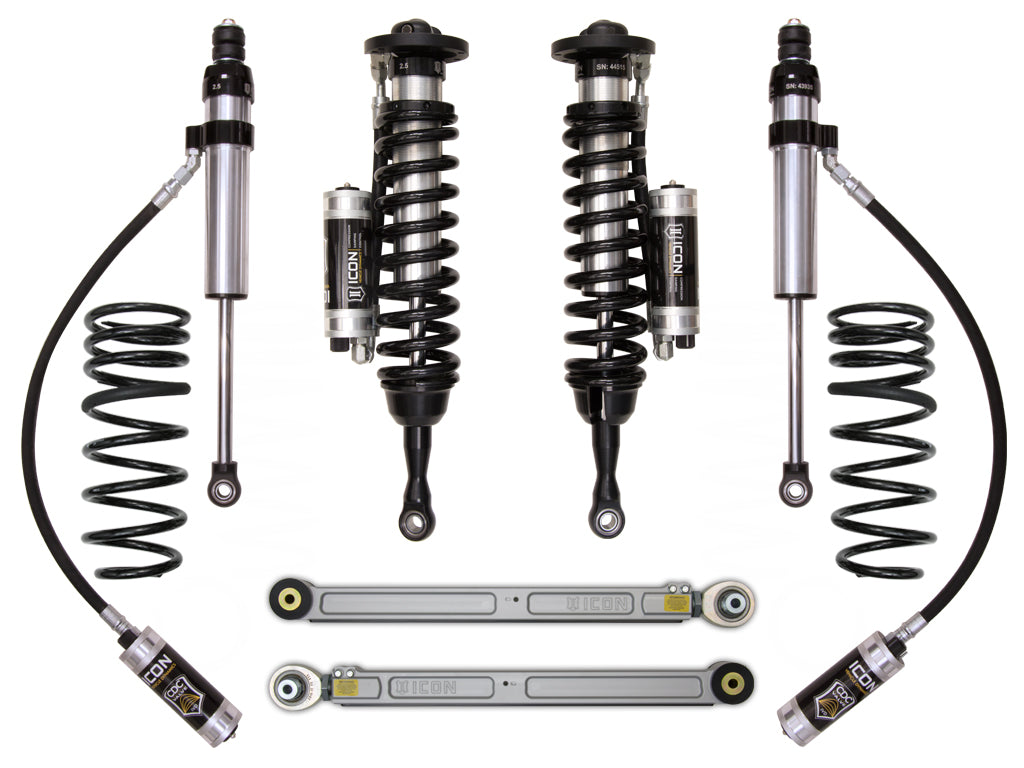

ICON 2008-Up Toyota Land Cruiser, 1.5-3.5" Lift, Stage 4 Suspension System
ICON 2008-Up Toyota Land Cruiser, 1.5-3.5" Lift, Stage 4 Suspension System
PART #
- Front lift 1.5-3.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; application note #111: bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
- ships in multiple boxes; recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 5.
- 75” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 6.
- 00” backspace / 25mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
- 625” backspace / 16mm offset; recommended aftermarket tires: 34" x 10.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #24: factory uca's will not align properly past 2.
- 5” of lift.
- Above 2.
- 5” of lift an aftermarket uca is recommended.
- application note #35: remote reservoir mounting brackets may interfere with aftermarket bumper mounts / windshield washer bottles; application note #46: suspension system compatible with kdss.
- Front sway bar relocation brackets not used for kdss equipped vehicles.
- Certain years require trimming for front reservoir bracket fitment.
- application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53074 |
| Front Lift Height | 1.5-3.5" |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 3.5 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Dual Rate Coil Springs | Yes |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset |
| Country of Origin | US |
| Warranty | See Rep |
| Weight (lbs) | 155 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Increased wheel travel and ride quality over stock
- Shocks are fully rebuildable and revalveable
- Bolt-on design means no cutting or welding necessary for install
- Improved vehicle dynamics and decreased body roll
- Height adjustable coilovers provide 1.5-3.5" of lift height
- ICON engineered dual rate rear coil springs

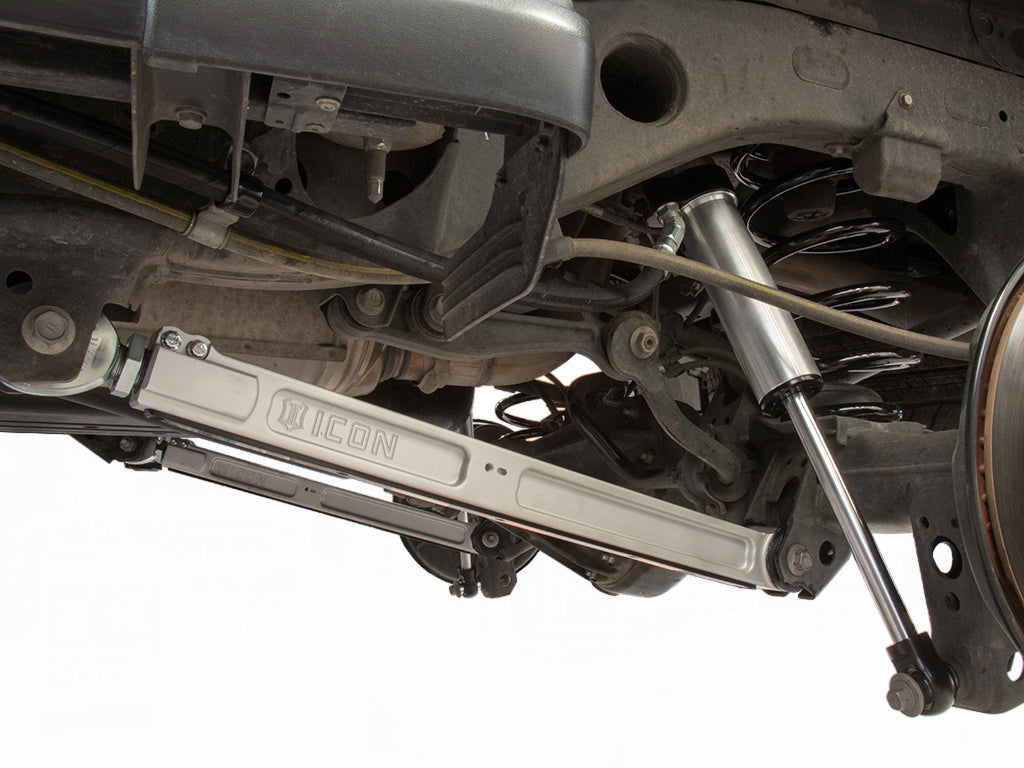

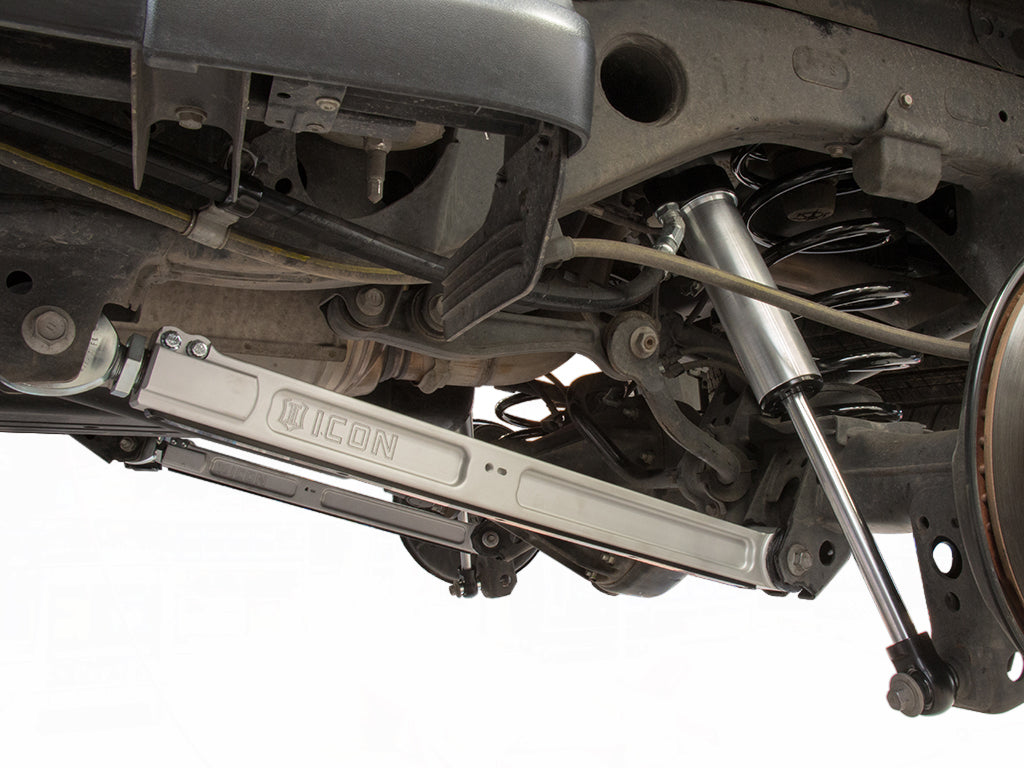

- Billet Aluminum rear lower links offer on-vehicle pinion angle adjustment
- Vehicle-specific tuned front and rear shocks provide superior damping and control
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- CDCV technology allows for quick and easy compression damping adjustment without the need for tools
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The 200 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all of the sophistication it is still a very capable vehicle that sees heavy use both on and off-road worldwide. While the 200 Series has exceptional ride characteristics in stock form, it is clear that the suspension is in need of a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and is proud to re-introduce several suspension systems that drastically increase the overall ability of the 2008-UP Toyota Land Cruiser.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
