ICON Vehicle Dynamics

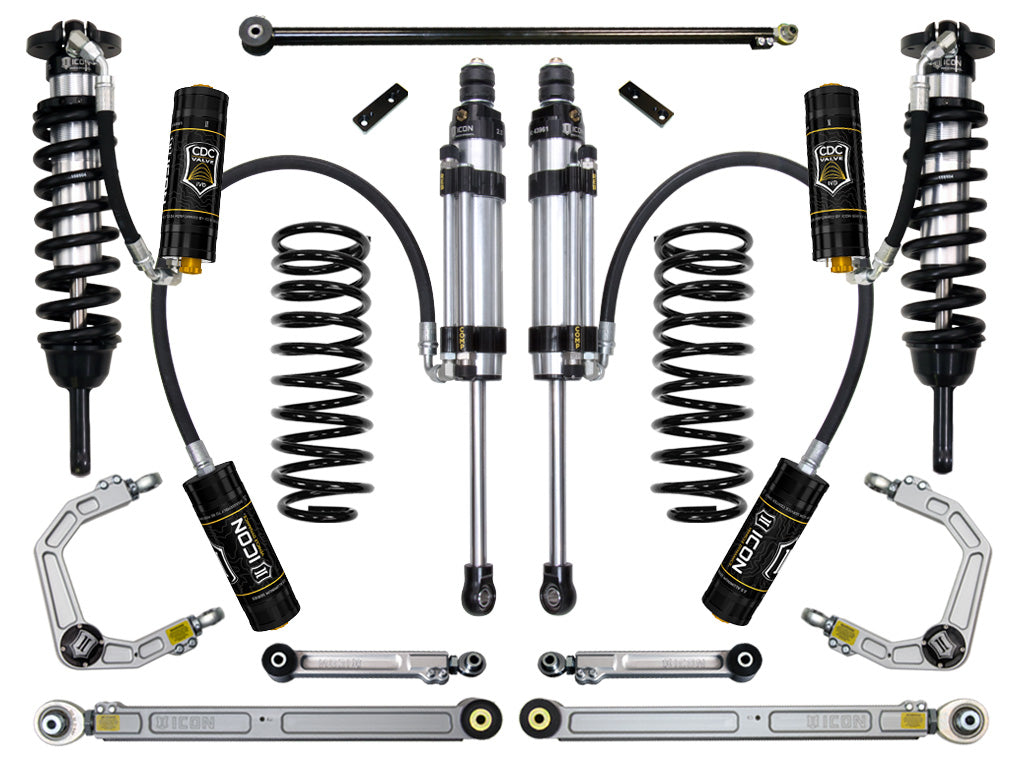

ICON 2010-2024 Toyota 4Runner/2010-2014 Toyota FJ Cruiser, 0-3.5" Lift Stage 8 Suspension System, Billet UCA

ICON 2010-2024 Toyota 4Runner/2010-2014 Toyota FJ Cruiser, 0-3.5" Lift Stage 8 Suspension System, Billet UCA

PART #

$8,274.17
$8,274.17
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.

Inventory: Low (Live-Chat or Call For Stock)
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Features

  • Increased wheel travel and ride quality over stock
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.5 Aluminum Series Omega bypass rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Rear shocks feature hand adjustable bypass valves with 28 detented settings of compression and rebound adjustment at quarter turn increments for precise suspension tuning
  • Adjustable rear track bar proper rear axle placement under vehicle
  • Bolt-on system means no cutting or welding necessary for install
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • CDC Valve technology in front coilovers allows for quick and easy compression damping adjustment without the need for tools
  • Adjustable coilovers provide 0-3.5" of front lift height
  • Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
  • Billet aluminum upper control arms for added strength durability adjustability and improved alignment geometry
  • Billet Aluminum rear upper and lower links offer on vehicle pinion angle adjustment
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
