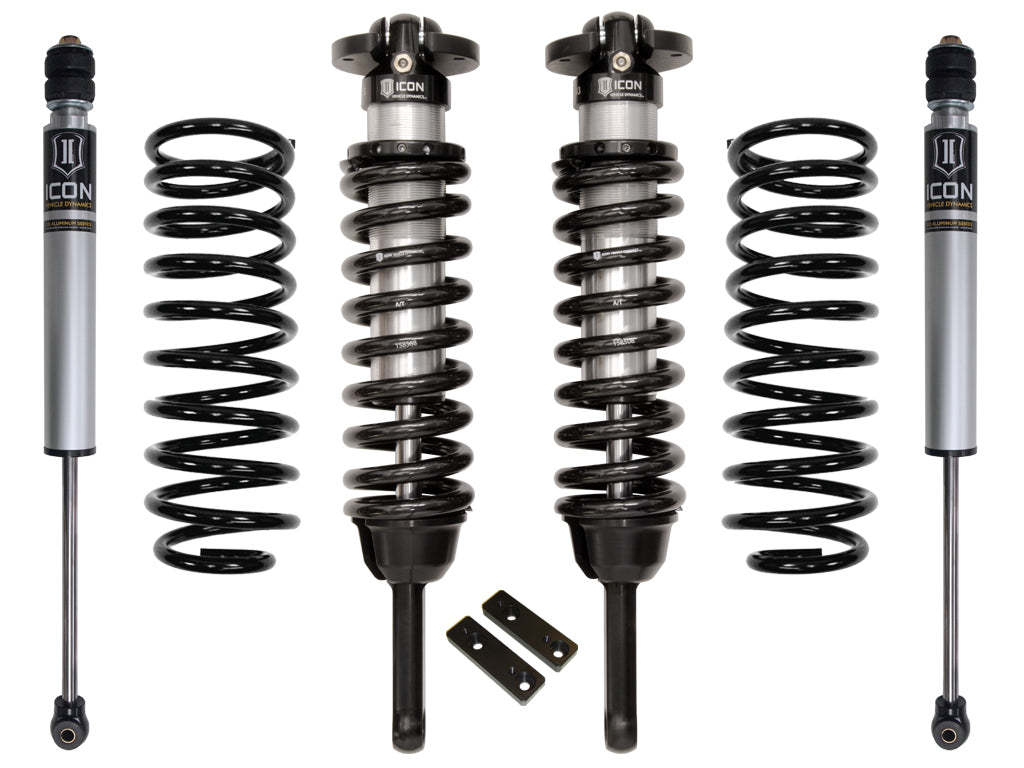

ICON 2010-2024 Toyota 4Runner/2010-2014 Toyota FJ Cruiser, 0-3.5" Lift, Stage 1 Suspension System
ICON 2010-2024 Toyota 4Runner/2010-2014 Toyota FJ Cruiser, 0-3.5" Lift, Stage 1 Suspension System
PART #
- Front lift 0-3.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; application note #111: bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
- recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 4.
- 75” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 5.
- 00” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 20x9" w/ 5.
- 00” backspace / 0mm offset; recommended aftermarket tires: 33" x 11.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #30: an adjustable track bar is recommended to realign the axle but not required.
- application note #47: 700lb/in expedition coil available for heavier equipped vehicles; application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle; application note #102: kdss equipped require rear track bar 54200
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53061 |
| Front Lift Height | 0-3.5" |
| Spring Rate | 650 PPI |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 3.5 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Rear Spring Rate Type | Linear |
| Front Spring Rate Type | Linear |
| Add-On Part | 51045 - TOYOTA .25” BUMP STOP SPACER KIT |
| Adjustable Damping | No |
| Coil Quantity Front | 2 |
| Maximum Lift Front | 3.5 IN |
| Maximum Lift Rear | 2 IN |
| Minimum Lift Front | 0 IN |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Country of Origin | US |
| Warranty | 1 year-Shocks; Limited Lifetime-Coil Springs |
| Weight (lbs) | 80 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide 0-3.5" of lift height
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear IFP shock with 5/8" shaft
- Bolt-on system means no cutting or welding necessary for install
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
This is our entry level suspension system for the 2010-2024 Toyota 4Runner and 2010-2014 FJ Cruiser. The Stage 1 system works well in most on and off-road scenarios by significantly improving factory body roll and overall driving ability. ICON 2.5 Series front coilover shocks feature a vehicle-specific tune to give your Toyota 4Runner great ride quality on or off-road, and they are adjustable from 0 to 3.5" of lift. Our rear 2.0 Aluminum Series shocks in this system are tuned to match the front 2.5 Series coilovers in every aspect, providing smooth and consistent damping performance front to rear. This system is finished off with a pair of 2" lift rear coil springs that have been engineered to further improve ride quality and handling.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
