ICON 2007-2021 Toyota Tundra, 1-3" Lift, Stage 1 Suspension System
- Front lift 1-3"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #24: Factory UCA's Will Not Align Properly Past 2.5” Of Lift. Above 2.5” Of Lift An Aftermarket UCA Is Recommended.
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
- APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53021 |
| UPC / GTIN | 840103416601 |
| Front Lift Height | 1-3" |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushing(s) Included | Yes |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Square |
| Coil Spring End 2 Type | Square |
| Coil Spring Material | Steel |
| Coil Spring Maximum Inside Diameter | 3 IN |
| Coils Quantity Front | 2 |
| Front Reservoir Style | Internal |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate | 600 PPI |
| Front Spring Rate Type | Linear |
| Grade Type | Performance |
| Maximum Lift | 3.5 IN |
| Maximum Lift Height Front | 3 IN |
| Mounting Hardware Included | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Country of Origin | US |
| Warranty | 1 Year-Shocks; Limited Lifetime-Coil Springs |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

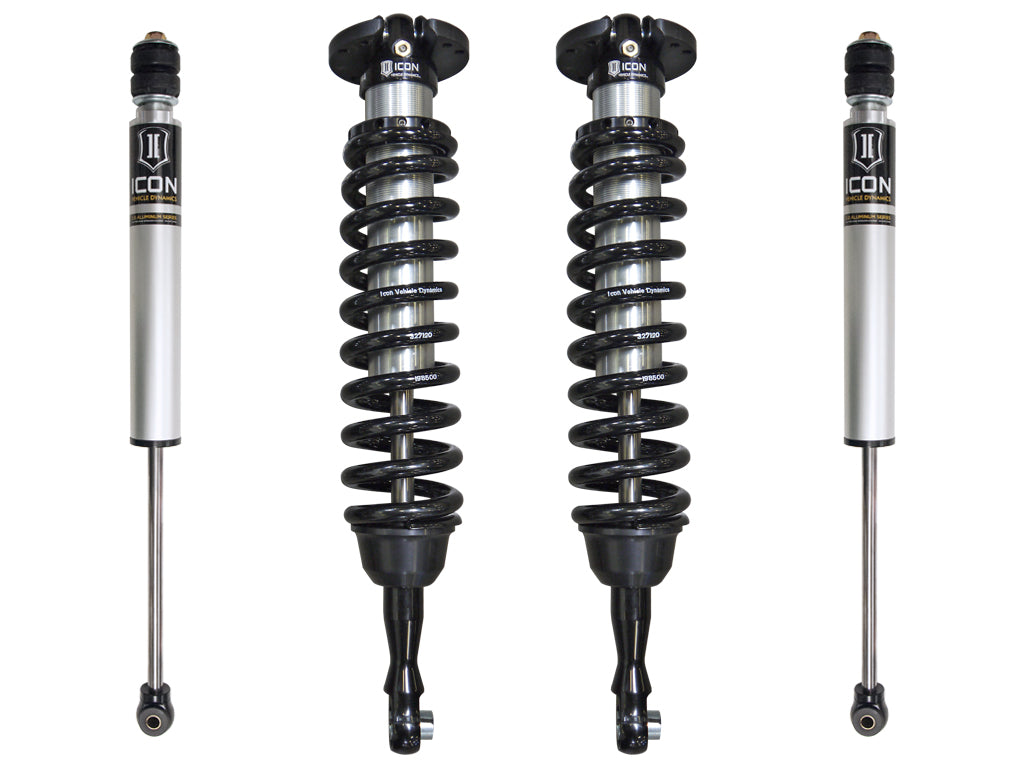

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | 58650 | 07-21 TUNDRA/08-22 SEQUOIA 2.5 VS IR COILOVER KIT |
| 2 | 56506 | 07-21 TUNDRA 0-1.5" REAR 2.0 VS IR |
Features
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from 1-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 VS Aluminum Series with 5/8" polished chrome shaft
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Dynamics Toyota Tundra Stage 1 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 VS Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
