ICON Vehicle Dynamics

ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift, Stage 6 Suspension System, Billet, CDCV

ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift, Stage 6 Suspension System, Billet, CDCV

PART #

$5,492.60
$5,492.60
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.

Inventory: Special Order (Live Chat or Call)
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

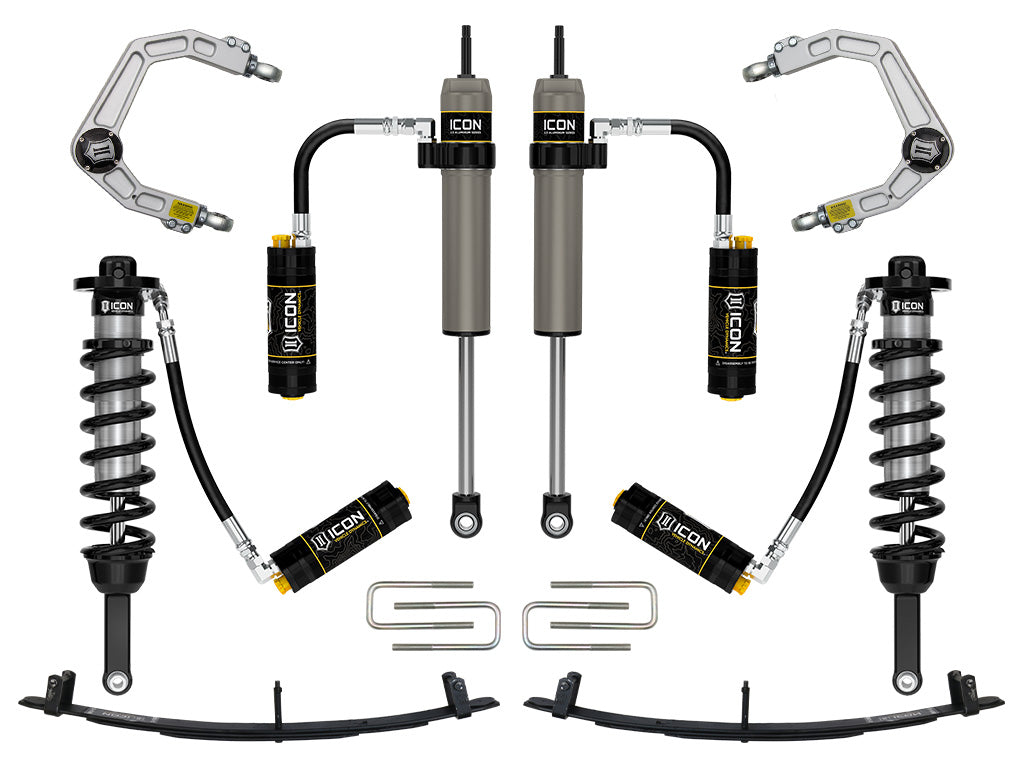

Features

  • Increased wheel travel and ride quality over stock
  • Billet aluminum UCAs for added strength durability and on-vehicle caster/camber adjustment for optimum drivability
  • UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint
  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts offer increased shock damping
  • Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
  • Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment from soft to hard
  • Extended Travel coilovers offer maximum wheel travel
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • FK Rod End bearings for extended longevity and minimal deflection
