ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift, Stage 5 Suspension System, Billet
ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift, Stage 5 Suspension System, Billet
PART #
- Front lift 0-3.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; application note #110: trimming required for recommended tire size; application note #111: bump stop spacer kit 51045 can be installed to increase preload .
- 25” beyond maximum; tech note: not compatible with 2005-2015 2wd 5-lug toyota tacoma models; tech note: 2017-2023 tacoma trd pro models will have front lift height range of 0-1.
- 25" over stock and rear lift height of 1" over stock; recommended aftermarket wheels: icon alloys - 17x8.
- 5 with 4.
- 75” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 18x9 with 5.
- 00” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 20x9 with 5.
- 00” backspace / 0mm offset; recommended aftermarket tires: 33" x 11.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #18: these systems are to be used with aftermarket upper control arms only; application note #47: 700lb/in expedition coil available for heavier equipped vehicles; application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle; application note #109: 2016-2023 tacoma llft range is 0-2.
- 75”
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53005 |
| Front Lift Height | 0-3.5" |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Leaf Spring Leaf Quantity | 3 |
| Coils Quantity Front | 2 |
| Rear Spring Rate Type | Linear |
| Front Spring Rate Type | Linear |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Damping | No |
| Coil Quantity Front | 2 |
| Front Spring Rate 1 | 650 LBS/IN |
| Maximum Lift Front | 3.5 IN |
| Maximum Lift Rear | 1.5 IN |
| Minimum Lift Front | 0 IN |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset |
| Country of Origin | US |
| Weight (lbs) | 138 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

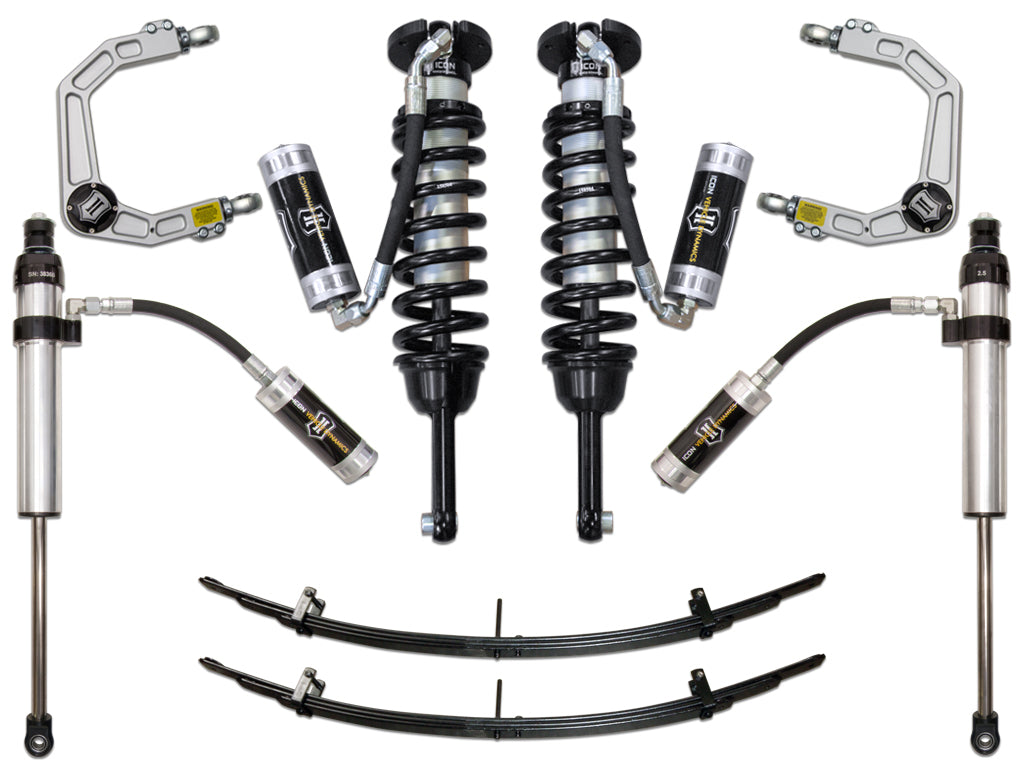

Features
- Increased wheel travel and ride quality over stock
- UCAs feature the patented (U.S. Pat. 10 731 700) Delta Joint
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts offer increased shock damping
- Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
- Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
- Extended Travel coilovers offer maximum wheel travel
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Billet aluminum UCAs for added strength durability and on-vehicle caster/camber adjustment for optimum drivability
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
