ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift, Stage 1 Suspension System
ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift, Stage 1 Suspension System
PART #
- Front lift 0-3.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; application note #111: bump stop spacer kit 51045 can be installed to increase preload .
- 25” beyond maximum; tech note: not compatible with 2005-2015 2wd 5-lug toyota tacoma models; tech note: 2017-2023 tacoma trd pro models will have lift height range of 0-1.
- 25" over stock; tech note: included rear shocks are compatible with 0-2" of rear lift over stock; recommended aftermarket wheels: icon alloys - 17x8.
- 5 with 4.
- 75” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 18x9 with 5.
- 00” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 20x9 with 5.
- 00” backspace / 0mm offset; recommended aftermarket tires: 33" x 11.
- 50" (larger tires may fit but fender trimming and modifications will be required.
- ); application note #47: 700lb/in expedition coil available for heavier equipped vehicles; application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle; application note #109: 2016-2023 tacoma llft range is 0-2.
- 75”; application note #110: trimming required for recommended tire size
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K53001 |
| Front Lift Height | 0-3.5" |
| Spring Rate | 650 PPI |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 3.5 IN |
| Coils Quantity Front | 2 |
| Front Spring Rate Type | Linear |
| Add-On Part | 51045 - TOYOTA .25” BUMP STOP SPACER KIT |
| Adjustable Damping | No |
| Coil Quantity Front | 2 |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9 with 5” Backspace / 0mm Offset |
| Country of Origin | US |
| Warranty | 1 Year-Shocks; Limited Lifetime-Coil Springs |
| Weight (lbs) | 55 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- ICON engineered coil springs
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear shocks with 5/8" shaft
- Bolt-on system means no cutting or welding necessary for install
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

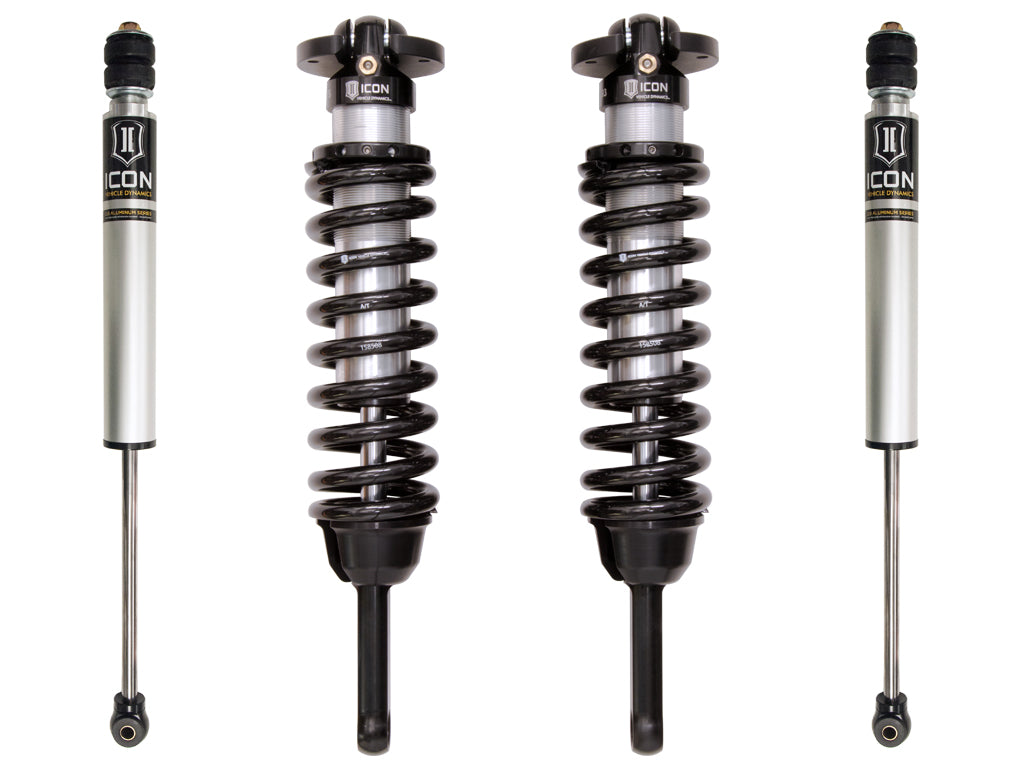

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
