ICON 2007-18 Jeep JK Wrangler, 4.5" Lift, Stage 5 Suspension System

Name: ICON 2007-18 Jeep JK Wrangler, 4.5" Lift, Stage 5 Suspension System
Brand: ICON Vehicle Dynamics
SKU: K24005
Price: 8700.87 USD
Availability: OutOfStock

ICON 2007-18 Jeep JK Wrangler, 4.5" Lift, Stage 5 Suspension System

PART #

$8,700.87

SALE Backordered

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Special Order (Live Chat or Call)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

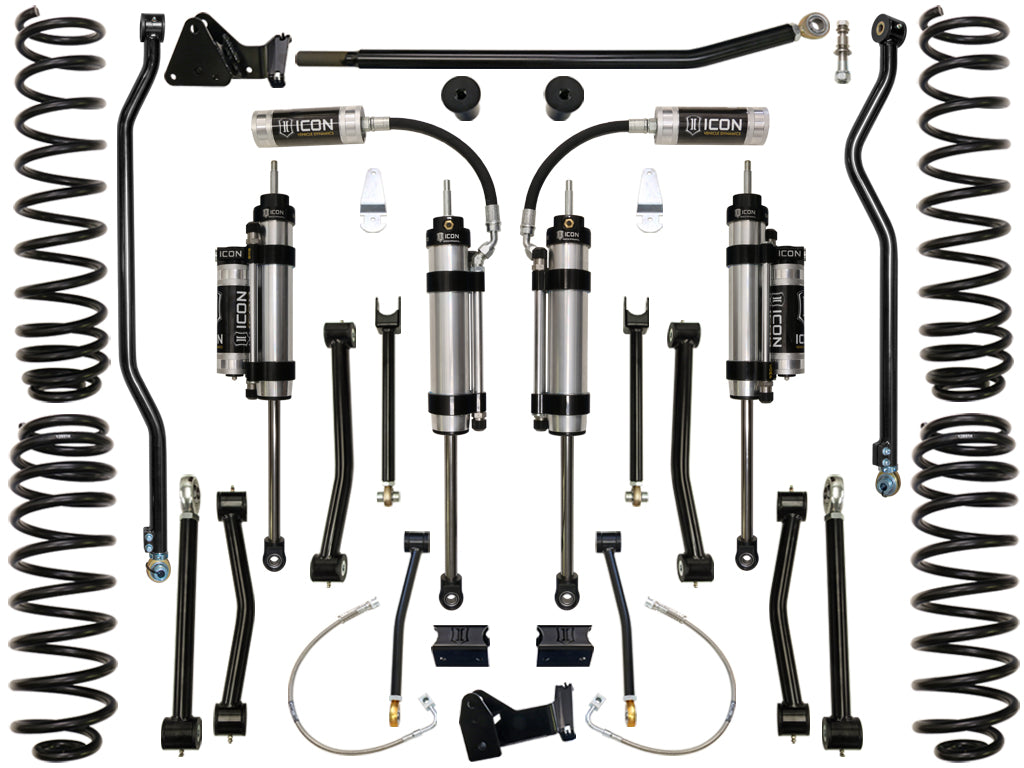

The ICON Stage 5 Jeep JK 4.5" suspension system includes dual-rate coil springs, track bar drop brackets, high-steering components, bump stop spacers, rear brake lines, rear sway bar links, complete set of front and rear links, and 2.5 Omega Series 2 tube bypass shocks. Tested and tuned, the ICON JK Stage 5 suspension system offers stability and drivability over a wide range of off-road terrains, while keeping a smooth on road feel for every day driving. This system includes 2.5" remote reservoir shocks front and rear to ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON Omega Series bypass shocks offer compression and rebound adjustability for fine tuning the riding for any situation faced. Installing this kit allows proper clearance for 35" tall tires with no modifications and 37" tires with aftermarket high clearance fenders.

Features

Dual-rate coil springs front and rear guaranteed never to sag
High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
All links and track bars utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation controlled deflection with maximum articulation and responsiveness
Track bars are on vehicle adjustable designed for optimizing axle postion
Includes high-performance rebuildable and revalvable reservoir 2.5 Series shocks w/ CDCV
Easy to operate compression adjuster for user shock tune-ability front and rear
Increased wheel travel and articulation over stock
100% returnable to stock

Oem wheels & tires fitment: yes; tech note: icon’s advertised lift heights are based around a typical jeep jk build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire.
Lift heights may be higher than advertised if installed on a stock weighted vehicle.
; ships in multiple boxes; recommended aftermarket wheels: icon alloys - 17x8.
5" w/ 4.
5” backspace / -6mm offset; recommended aftermarket wheels: icon alloys - 18x9" w/ 4.
5” backspace / -12mm offset; recommended aftermarket tires: 35" x 12.
50" (larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended); application note #62: front driveshaft can hit certain model skid plates at full droop and may need to be trimmed for full articulation; application note #66: 2 door models sit slightly higher than 4 door models but remain level when installed; application note #80: front drive shaft required for proper front driveline clearance (icon part #22014 [12-up] / #22016 [07-11]; application note #123: may require rear alignment cam kit; application note #150: shocks are fully serviceable

Quick SpecsOverview:

Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 4.5 IN
Coils Quantity Front: 2
Coils Quantity Rear: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
Add-On Part: 22042 - 20-UP JT / 18-UP JL / 07-18 JK FRONT HYD BUMP STOP KIT
Add-On Part: 22039 - 07-18 JK 2.0 CENTERLINE STABILIZER KIT
Add-On Part: 22020 - 07-18 JK 2.0 CENTERLINE STABILIZER KIT ADJUSTABLE
Add-On Part: 22014 - 12-18 JK FRONT DRIVESHAFT W/YOKE ADAPTER 2.5-6" LIFT
Add-On Part: 22016 - 07-11 JK FRONT DRIVESHAFT W/YOKE ADAPTER 2.5-6" LIFT
Add-On Part: 22013 - 07-18 JK CASTER CAM KIT
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Dual Rate Coil Springs: Yes
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders test fitment recommended)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.5" Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset
Title: 07-18 JEEP JK 4.5" STAGE 5 SUSPENSION SYSTEM

Additional Specifications:

Country of Origin: US
Warranty: See Rep
Weight (lbs): 269.0
Vehicle Specific Fitment: Y

Instructions

I21010_REVB.pdf

Fitment

: N/A
