ICON 2007-18 Jeep JK Wrangler, Centerline Steering Stabilizer, Adjustable
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- TECH NOTE: This kit is intended for use with a 3-6" lift and will not work on a stock vehicle. A minimum of 1" bump stop spacer is required for adequate clearance.
- TECH NOTE: 4.5" kits and taller allow the reservoir of the stabilizer to be rotated straight up above the shock body. 3" kits require the reservoir to be rotated down behind the shock body.
- TECH NOTE: If using a heavy duty 1-5/8” aftermarket tie rod, oversized clamp kit (PN: 614525) must be used
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 22020 |
| UPC / GTIN | 840103401270 |
| Adjustable Damping | Yes |
| Boot Included | No |
| Color | Light Grey |
| Cylinder Diameter | 2 IN |
| Cylinder Material | Aluminum |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| Grade Type | Performance |
| Lower Mount Type | Eyelet |
| Mounting Bracket Included | yes |
| Shaft Diameter | 0.625 IN |
| Shaft Material | Chrome |
| Steering Stabilizer Configuration | Through-Shaft |
| Upper Mount Type | Clamp |
| Country of Origin | US |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Through shaft design eliminates push/pull sensation associated with traditional stabilizers
- Increased steering damping over stock unit
- Provides symmetrical steering feel throughout input range
- Adjustable “Drive Zone” with 9 clicks of damping adjustment
- 100% bolt-on installation
- High clearance design and rotatable reservoir for proper fitment on all lift heights
- Mounts to OE 1-3/8” tie rod
- Optional clamps for aftermarket heavy duty tie rods (1-5/8”)
- Fully serviceable ICON 2.0 Aluminum Series shock
- 6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation
- 5/8” chrome plated hardened steel shaft
- 5WT shock oil for consistent suspension damping along a wide temperature range
- FK Rod End bearings for precise function
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

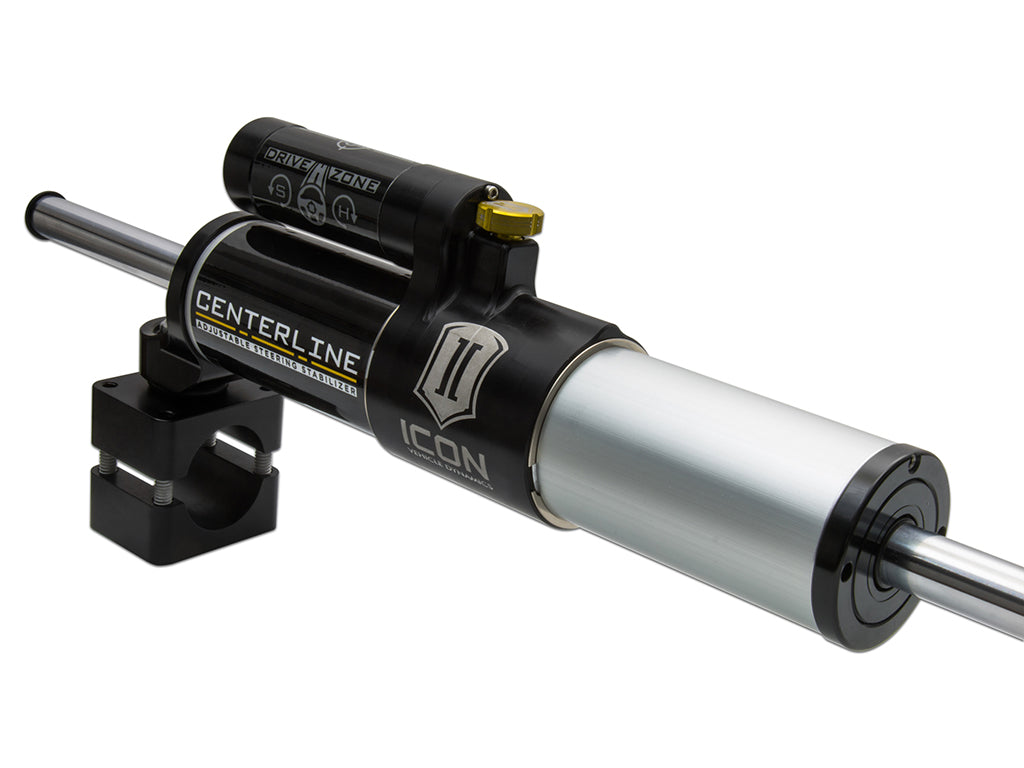

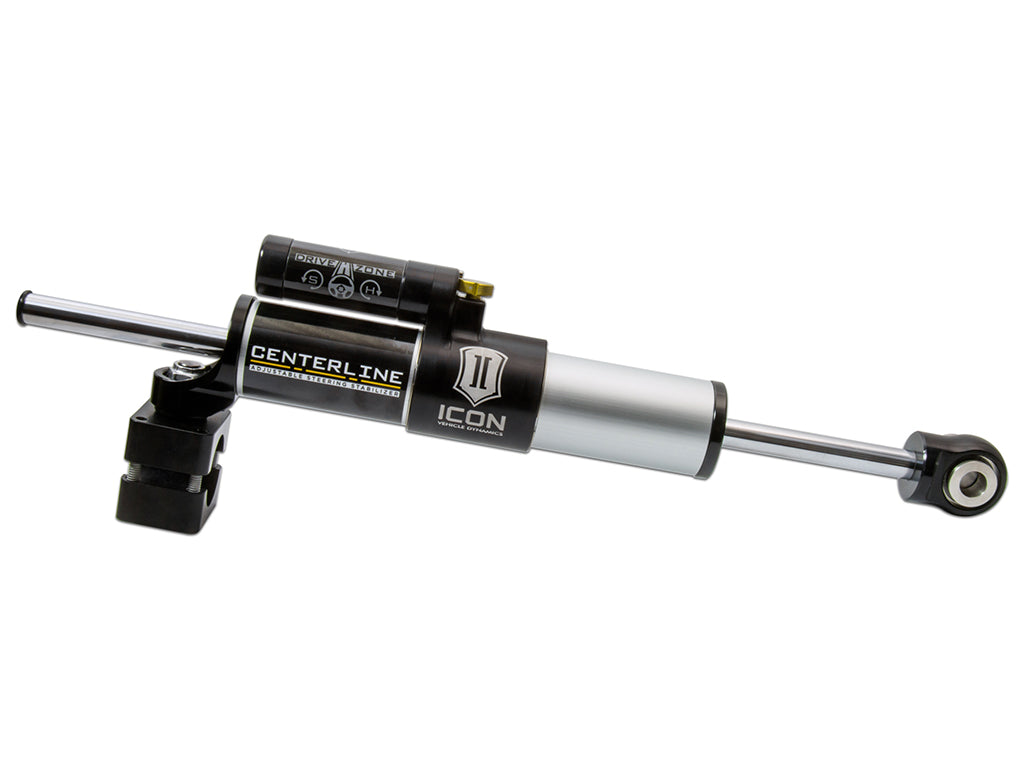

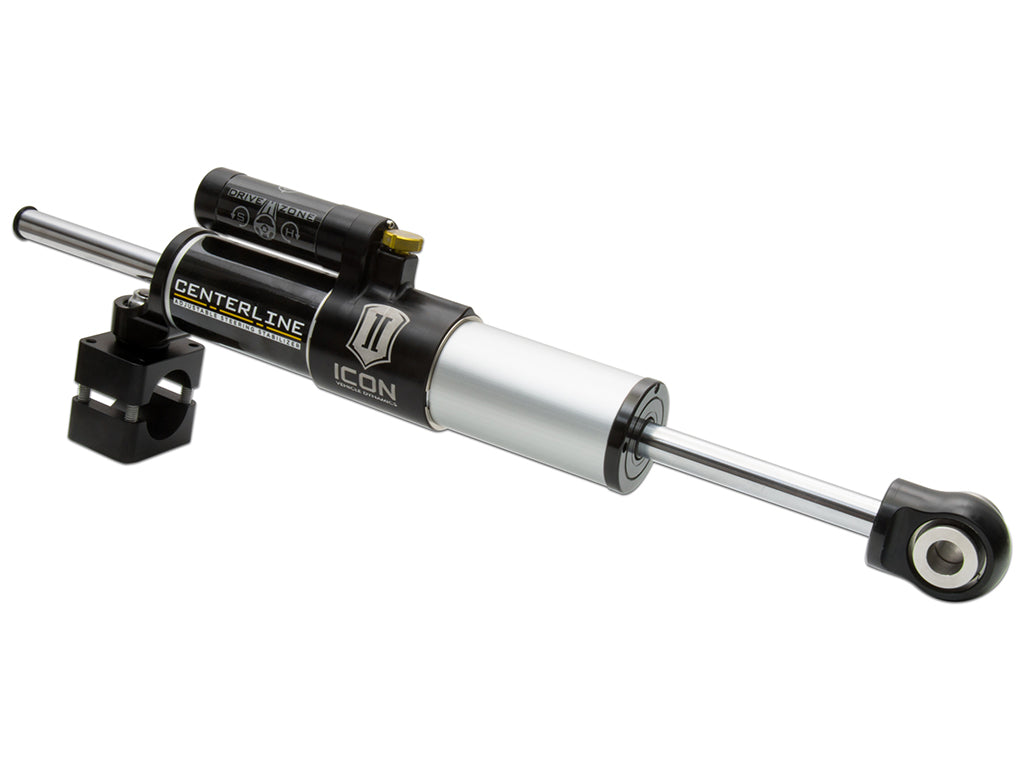

Engineered to provide consistent steering damping with a through-shaft design, the new ICON Centerline Steering Stabilizer features an adjustable “Drive Zone” that can be custom-tailored to an individual’s desired steering feel. Developed with a wide range of aftermarket JK components in mind, this stabilizer is a high clearance design with a rotatable reservoir that allows for fitment on all ICON lift systems as well as most other lifts on the market. In addition to providing steering damping without the push or pull associated with a traditional stabilizer, the ICON Centerline Stabilizer features an adjustable “Drive Zone” with 9 levels of damping that affects 110 degrees of steering wheel input to the left or right of center. This allows the end user to customize how tight or how loose their vehicle handles in the middle of the steering range.
This new Centerline Steering Stabilizer shares the same great build features as our proven ICON 2.0 Aluminum Series shocks. These features include a clear anodized 6063 aluminum shock body for corrosion resistance and a 5/8” chrome plated hardened steel shaft for durability, premium 5WT shock oil that provides consistent damping characteristics across a wide operating temperature range , and a high temperature long wear seal pack that stands up to harsh conditions found both on and off-road. The CNC machined billet aluminum Centerline Stabilizer 1-3/8” tie rod clamp and rod end also feature FK Rod End bearings for precise and reliable operation.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
