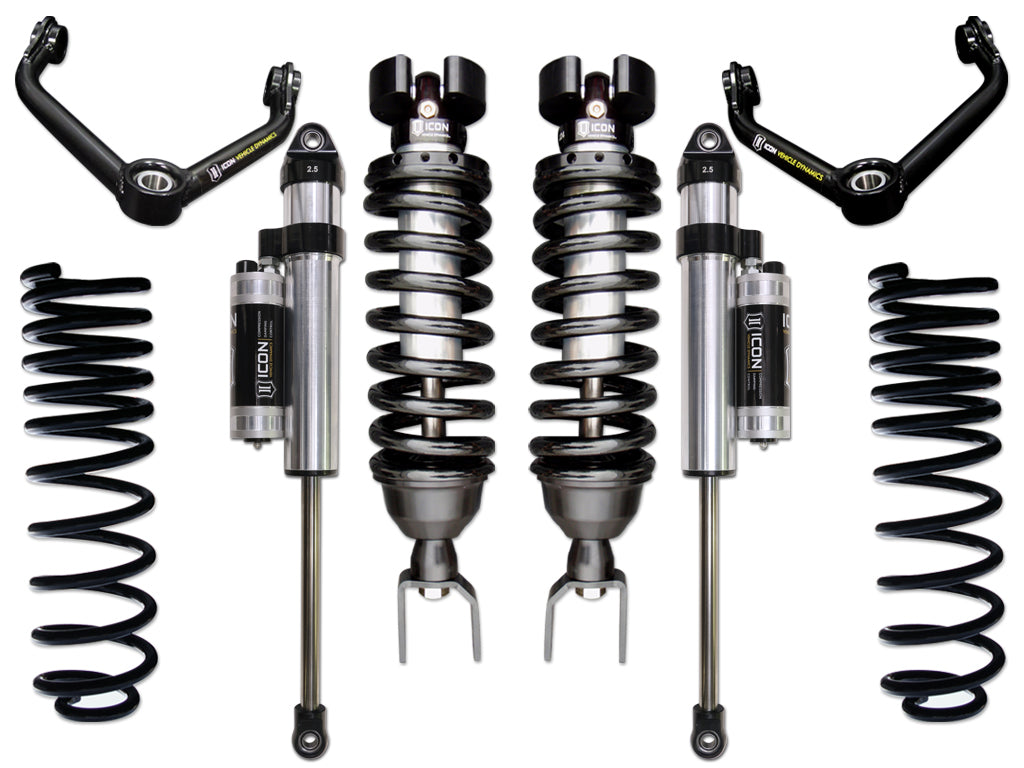

ICON 2009-18 Ram 1500 4WD, .75-2.5" Lift, Stage 5 Suspension System
ICON 2009-18 Ram 1500 4WD, .75-2.5" Lift, Stage 5 Suspension System
PART #
- Front lift 0.75-2.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Oem wheels & tires fitment: yes; recommended aftermarket wheels: icon alloys - 17x8.
- 5" w/ 4.
- 75” bs / 0mm offset; recommended aftermarket tires: 33" x 11.
- 50" (larger tires may fit but fender trimming and modifications will be required); application note #55: shocks are fully serviceable.
- Coilover heights indicated are for a stock equipped vehicle; application note #99: air bags recommended with performance rear springs if vehicle used for towing; tech note: compatible with 2019-2022 ram 1500 classic models.
- Lift height range is .
- 75-2.
- 5" over stock; tech note: not compatible with models equipped with oe air suspension; ships in multiple boxes
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K213005 |
| Front Lift Height | 0.75-2.5" |
| Spring Material | Steel |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Spring Color | Black |
| Shocks Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 2.5 IN |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” BS / 0mm Offset |
| Country of Origin | US |
| Warranty | See Rep |
| Weight (lbs) | 126 |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- ICON CDC Valve allows quick and easy end-user adjustability
- Adjustable coilovers from .75-2.5" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- 2.5 Aluminum Series rear shocks with CDCV
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on system - no drilling cutting or welding necessary for install
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

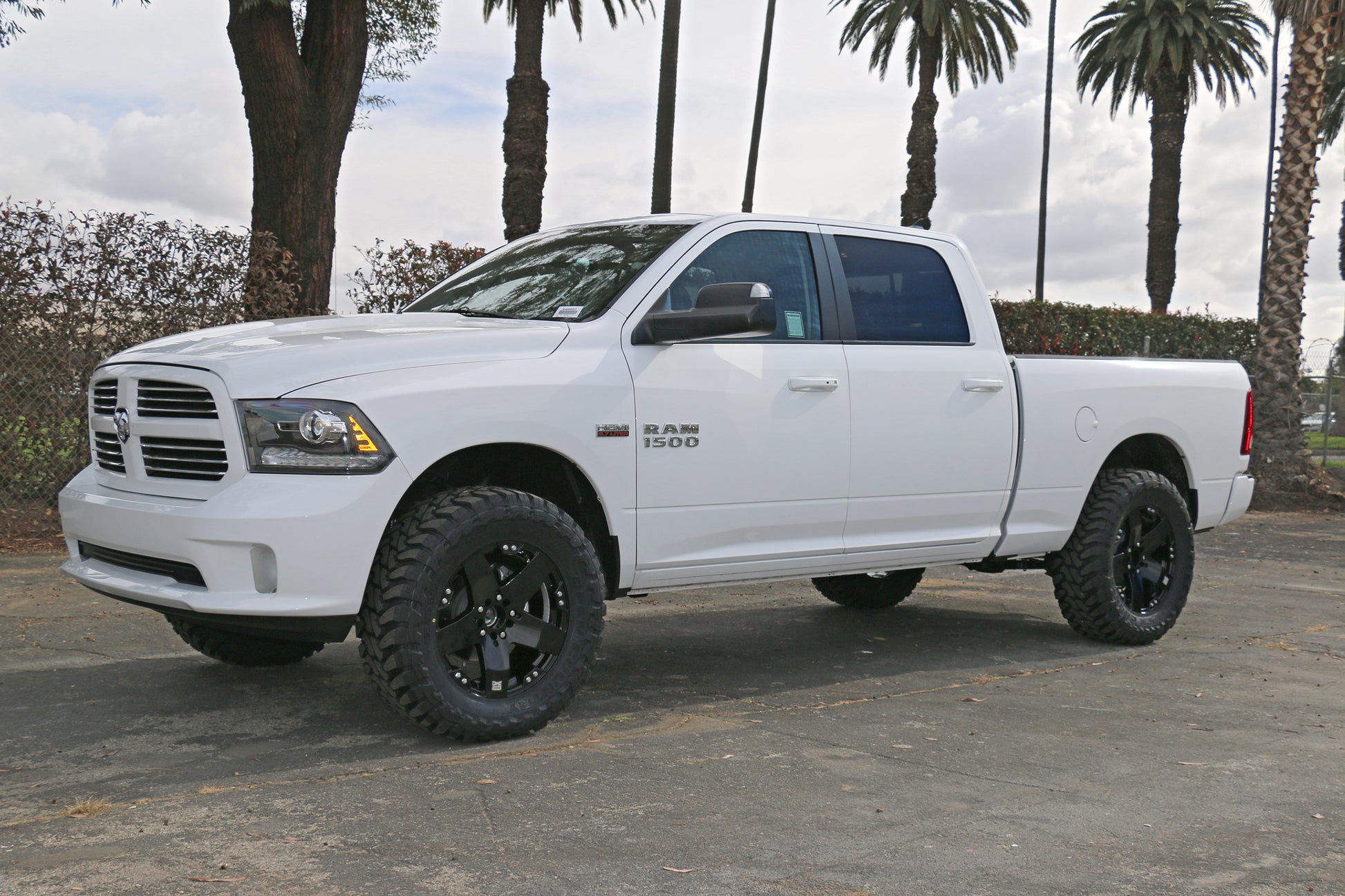

ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from .75-2.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series rear shocks with CDC Valve utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
