ICON Vehicle Dynamics
ICON 2009-18 Ram 1500 4WD, .75-2.5" Lift, Stage 1 Suspension System
ICON 2009-18 Ram 1500 4WD, .75-2.5" Lift, Stage 1 Suspension System
PART #
- Front lift 0.75-2.5"
- Shocks included
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Ships in Multiple Boxes
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | K213001 |
| Front Lift Height | 0.75-2.5" |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Bushings Included | Yes |
| Grade Type | Performance |
| Maximum Lift | 2.5 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” BS / 0mm Offset |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Bolt-on system - no drilling or welding necessary for install
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

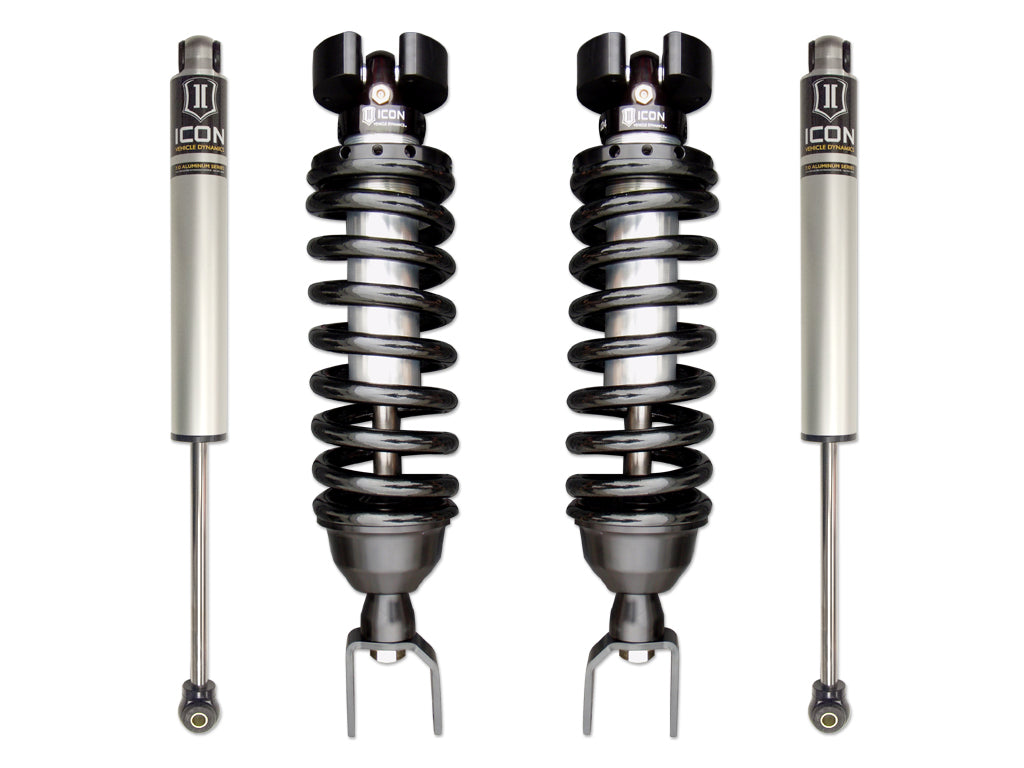

ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from .75-2.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
