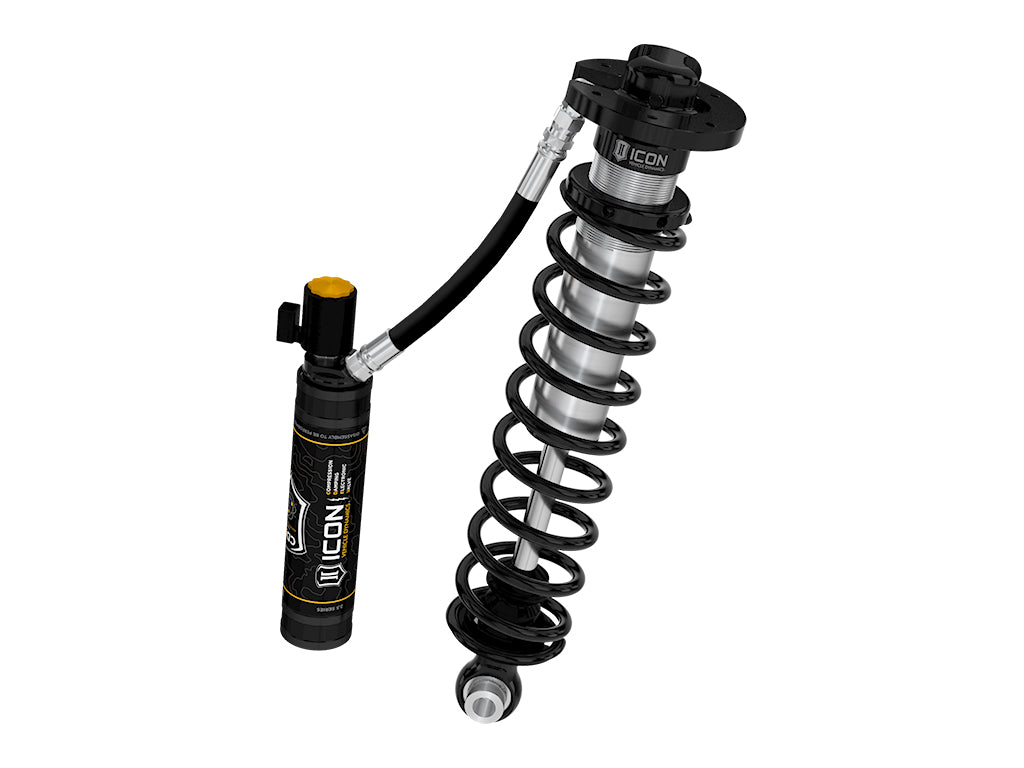

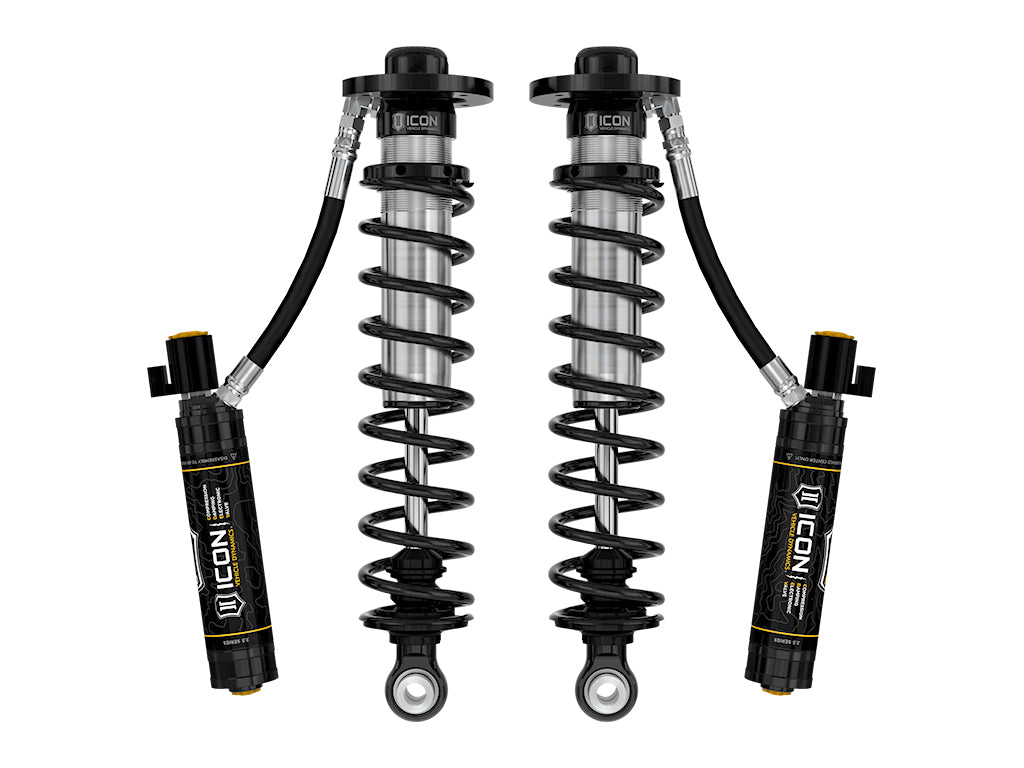

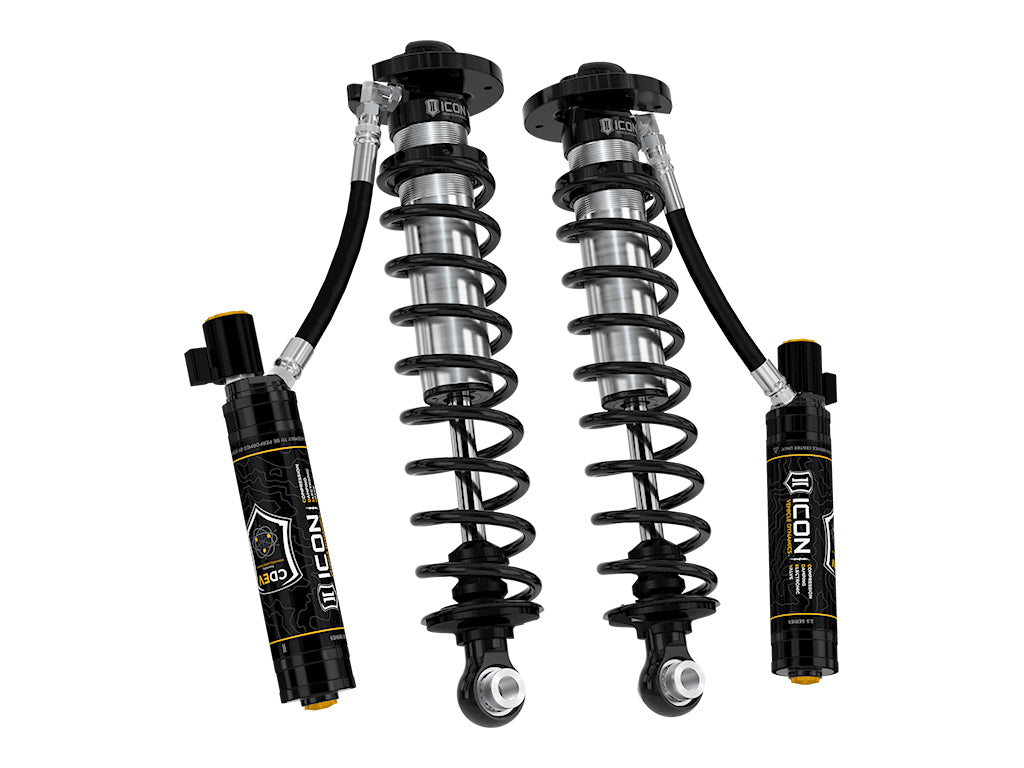

ICON 2022-2023 Ford F-150 Lightning, Lowered 0-4", 2.5 VS Remote Reservoir CDEV Coilover Kit, Rear

Name: ICON 2022-2023 Ford F-150 Lightning, Lowered 0-4", 2.5 VS Remote Reservoir CDEV Coilover Kit, Rear
Brand: ICON Vehicle Dynamics
SKU: 91836E
Price: 2911.95 USD
Availability: InStock

ICON 2022-2023 Ford F-150 Lightning, Lowered 0-4", 2.5 VS Remote Reservoir CDEV Coilover Kit, Rear

PART #

$2,911.95

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Low (Live-Chat or Call For Stock)

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

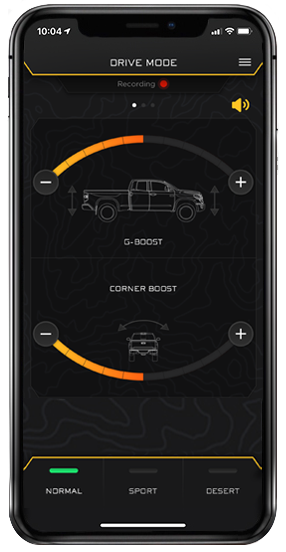

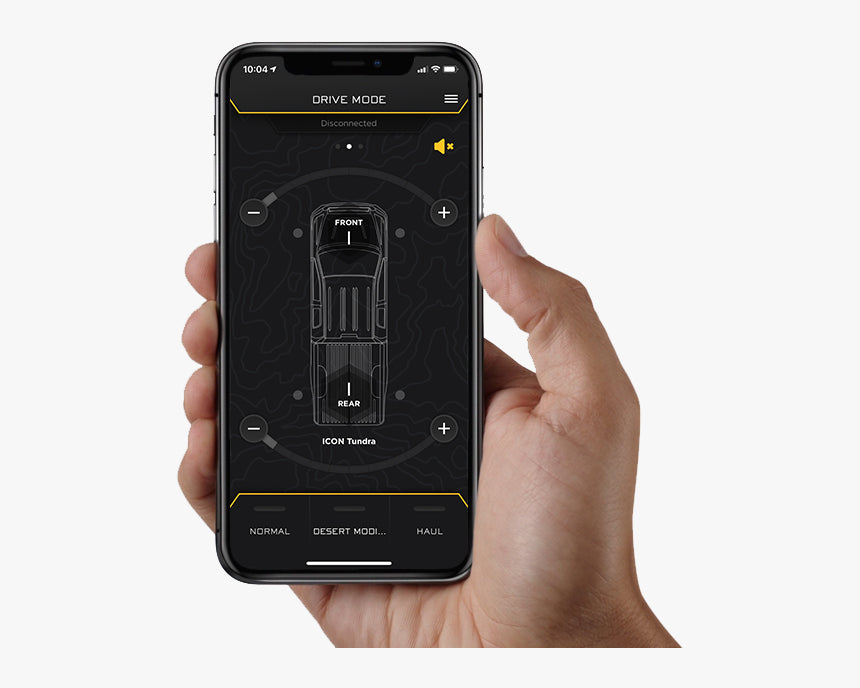

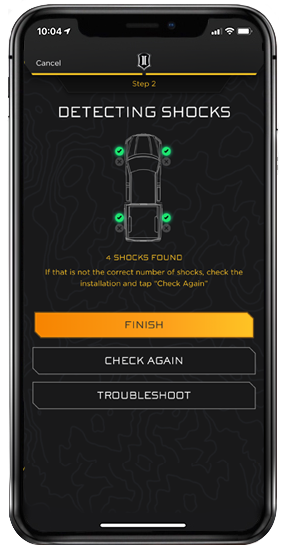

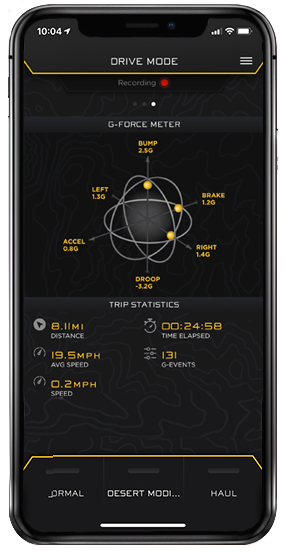

Take control of your suspension like never before with the power of ICON Intelligent Control and the proprietary ICON mobile app. This innovative system leverages information from the onboard G-force sensor and gyroscope, utilizing cutting-edge algorithms and user-defined settings to predict terrain and actively adjust shock damping settings via CDEV accordingly. When combined with ICON 2.5 Series CDEV front coilovers, your vehicle's control will be balanced front to rear, providing you with the ultimate driving experience for your F-150 Lightning.

Features

100% Bolt-on - no cutting or welding necessary for installation

Brand Overview

ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.

TECH NOTE: Lowering rear past 3.5" below stock may reduce ride quality due to limited distance to bump stop engagement

Quick Specs

Specs: AAP_UDA_12: EA
Specs: AAP_UDA_22: 1
Specs: AAP_UDA_4: 55
Specs: Active or Passive Suspension: Active
Specs: Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Specs: Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Specs: Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Specs: Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Specs: Adjustable Compression: Yes
Specs: Adjustable Damping: Yes
Specs: Adjustable Rebound: No
Specs: Adjustable Ride Height: Yes
Specs: Assembled: Yes
Specs: Body Diameter: 2.5 IN
Specs: California Prop 65 Warning: Yes
Specs: California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specs: Coil Over Springs Included: Yes
Specs: Compressed Length: 14.39 IN
Specs: Cylinder Color: Silver
Specs: Cylinder Finish: Cadmium Plated
Specs: Cylinder Material: Steel
Specs: Damping Adjustment Type: Electronic
Specs: Damping Type: Oil
Specs: Dust Shield Included: No
Specs: Extended Length: 22.26 IN
Specs: Gas Charged: Yes
Specs: Grade Type: Performance
Specs: Includes Bump Stop: Yes
Specs: Internal Construction Type: Single Tube
Specs: Lower Mount Type: Eyelet
Specs: Material: Aluminum
Specs: Material: Steel
Specs: Maximum Drop: 2 IN
Specs: Maximum Ride Height Lowering Distance: 4 IN
Specs: Minimum Drop: 0 IN
Specs: OEM Wheels & Tires Fitment: Yes
Specs: Rear Spring Rate: 225 PPI
Specs: Recommended Aftermarket Tires: 33" x 12.00" (Larger tires may fit but fender trimming and modifications will be required.)
Specs: Recommended Aftermarket Wheels: 20x9" with 6” Backspace / 25mm Offset
Specs: Remote Reservoir: Yes
Specs: Reservoir Style: Remote
Specs: Self-Leveling: No
Specs: Shaft Diameter: 0.875 IN
Specs: Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Specs: Shock Absorber Rod End Measuring Point: Center of Eyelet
Specs: Spring Color: Black
Specs: Spring Material: Steel
Specs: Spring Rate Type: Linear
Specs: Title: ICON 2022-2023 Ford F-150 Lightning, Lowered 0-4", 2.5 VS Remote Reservoir CDEV Coilover Kit, Rear
Specs: Upper Mount Type: Mounting Plate
Specs: Valving Type: Digressive

Instructions

Instructions (pdf)

Fitment

: N/A
