ICON Vehicle Dynamics

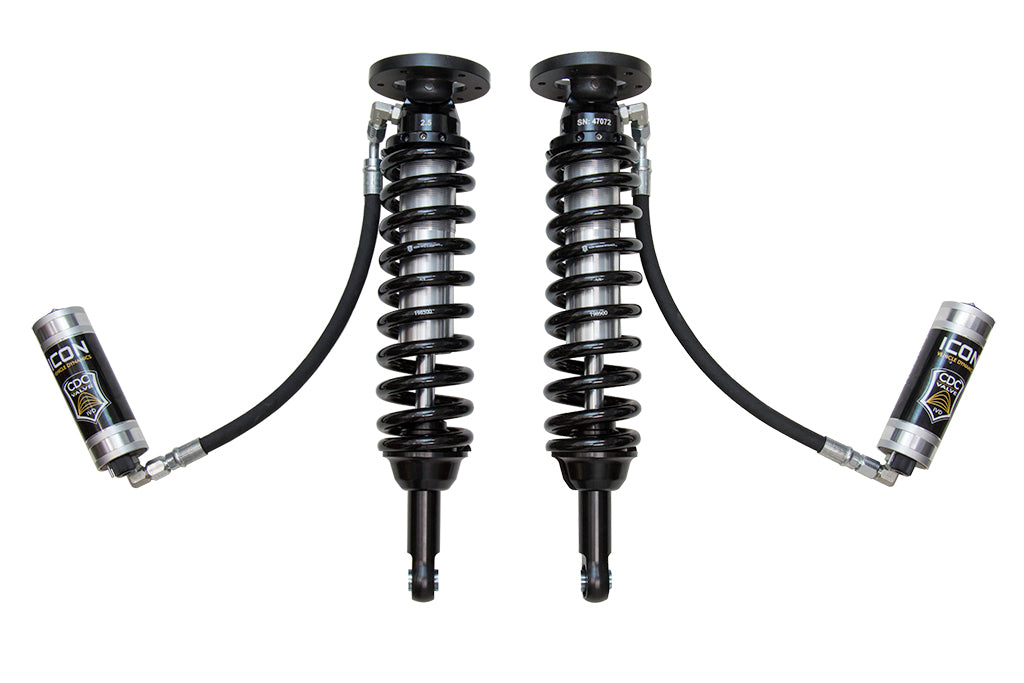

ICON 2009-2013 Ford F-150 4WD, 1.75-2.63” Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV

ICON 2009-2013 Ford F-150 4WD, 1.75-2.63” Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV

PART #

Regular price $2,345.88
Regular price B2B price $2,345.88
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.
Read the important notes before ordering
Stock and ship time: call or live chat for the latest.
  • Free shippingmost orders $500+
  • 30-day returnssee policy
  • Warranty helpwe work claims for you
Not sure it fits? Ask a fitment specialist. Real people, U.S.-based
View full details

Important notes before you order

  1. Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Specifications

BrandICON Vehicle Dynamics
Part number91800C
Active or Passive SuspensionPassive
Add-On Part98500DJ - 04-20 F150 TUBULAR UCA DJ KIT
Adjustable CompressionYes
Adjustable DampingYes
Adjustable ReboundNo
Adjustable Ride HeightYes
AssembledYes
Body Diameter2.5 IN
Coil Over Springs IncludedYes
Compressed Length17.87 IN
Cylinder ColorSilver
Cylinder FinishCadmium Plated
Cylinder MaterialSteel
Damping TypeOil
Dust Shield IncludedNo
Extended Length23.23 IN
Front Spring Rate600 PPI
Gas Chargedyes
Grade TypePerformance
Includes Bump StopYes
Internal Construction TypeSingle Tube
Lower Mount TypeEyelet
MaterialAluminum
Maximum Lift2.63 IN
Maximum Ride Height Raising Distance2.63 IN
Minimum Lift1.75 IN
OEM Wheels & Tires FitmentYes
Recommended Aftermarket WheelsICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Remote ReservoirYes
Reservoir StyleRemote
Self-LevelingNo
Service Parts252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter0.875 IN
Shock Absorber Body End Measuring PointTop of Upper Mount Plate
Shock Absorber Rod End Measuring PointCenter of Eylet
Spring ColorBlack
Spring MaterialSteel
Spring Rate TypeLinear
Travel Length5.37 IN
Upper Mount TypeMounting Plate
Valving TypeDigressive

California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

Features

  • 100% Bolt-on - cutting or welding necessary for installation

Installation

    Free install support from the Trucks R Us tech team, for you or your shop.

    Overview

    The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2009-2013 Ford F150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-2.63” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of adjustment from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ford F150 4WD.
