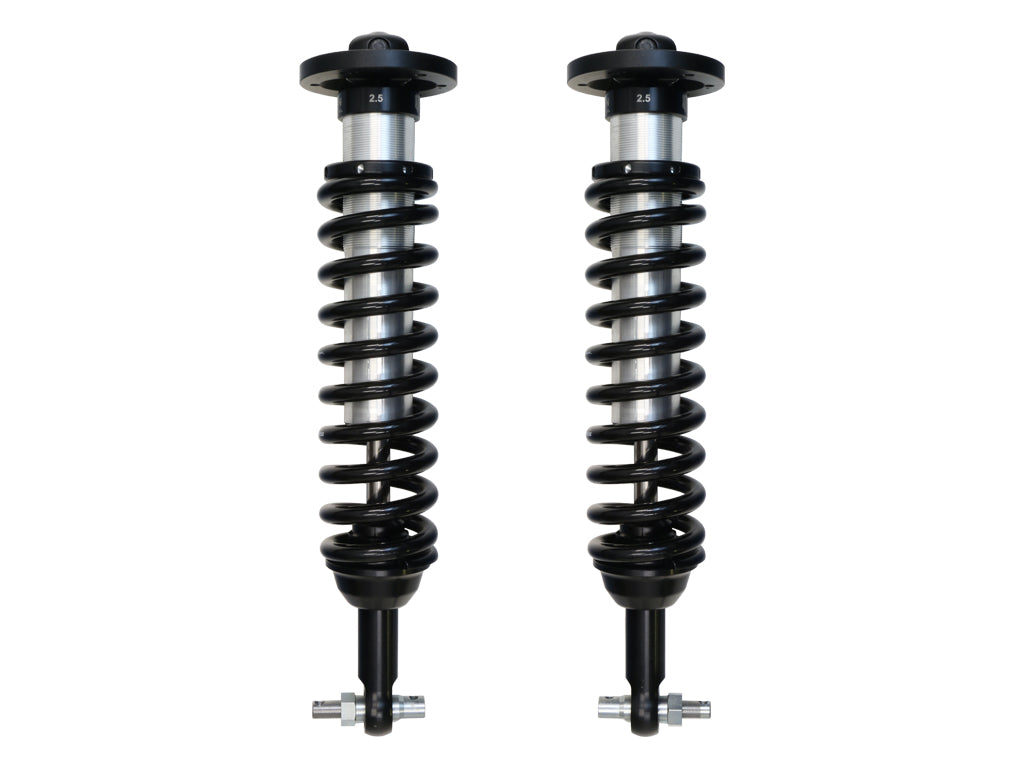

ICON 2014 Ford F-150 2WD, 0-2.63” Lift, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir
ICON 2014 Ford F-150 2WD, 0-2.63” Lift, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir
PART #
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 91615 |
| Active or Passive Suspension | Passive |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.22 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 22.58 IN |
| Front Spring Rate | 600 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | BAR PIN |
| Material | Steel |
| Maximum Lift | 2.63 IN |
| Maximum Ride Height Raising Distance | 2.63 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Flat on Bar Pin |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.37 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 100% Bolt-on - no drilling or welding necessary for installation
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2014 F150 2WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 0-2.63” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your F150 truck.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
