ICON Vehicle Dynamics

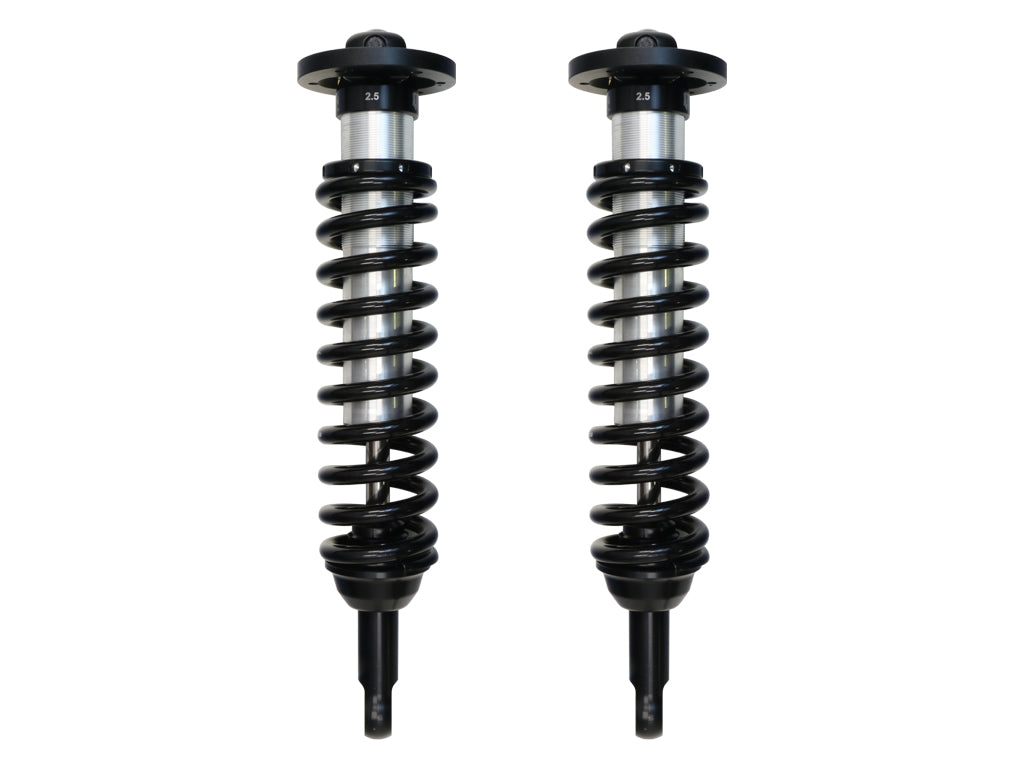

ICON 2004-2008 Ford F-150 2WD, 0-2.63” Lift, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir
ICON 2004-2008 Ford F-150 2WD, 0-2.63” Lift, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir
PART #
Couldn't load pickup availability
- Free shippingmost orders $500+
- 30-day returnssee policy
- Warranty helpwe work claims for you
Important notes before you order
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 91500 |
| Active or Passive Suspension | Passive |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 16.97 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Extended Length | 22.33 IN |
| Front Spring Rate | 600 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Maximum Lift | 2.63 IN |
| Maximum Ride Height Raising Distance | 2.63 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Remote Reservoir | No |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.37 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- 100% Bolt-on - no drilling,cutting or welding necessary for installation
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
ICON Vehicle Dynamics V.S. Series 2.5" coil-over shocks are an incredible upgrade for the front end of 2004-2008 Ford F-150 2WD trucks. ICON's Vehicle-specific valving provide a sport tuned feel on and off-road while 0-2.63" lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
