ICON Vehicle DynamicsPart # 91210C

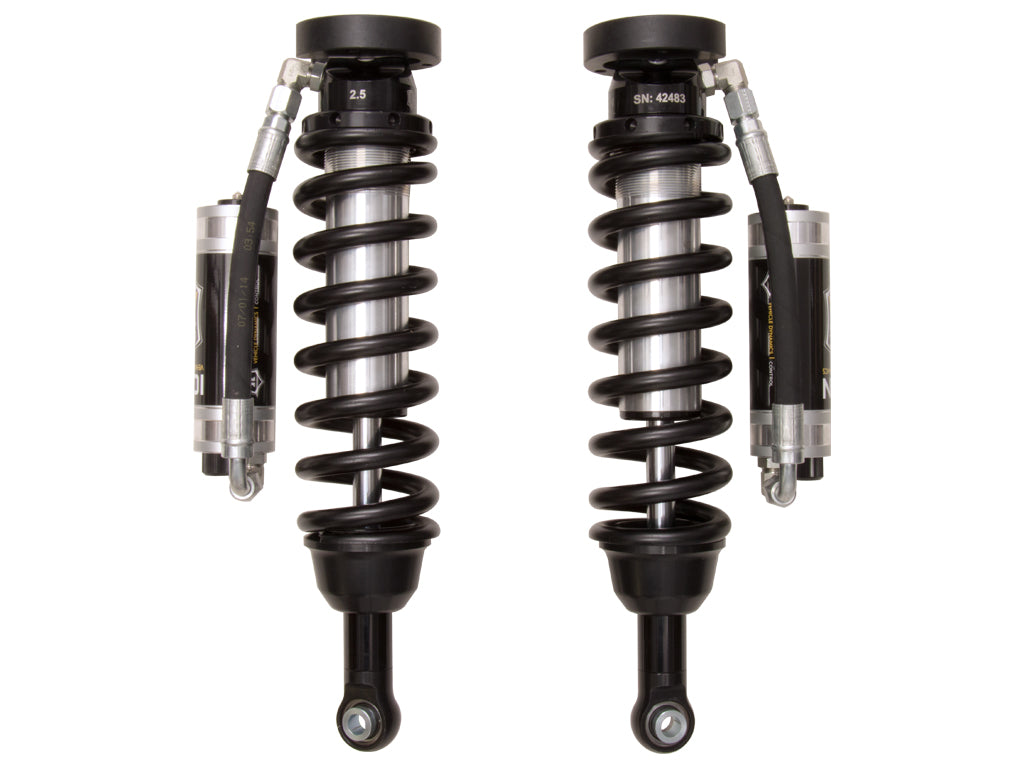

ICON 2011-2022 Ford Ranger T6, Front, 1-3” Lift, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV

Regular price $2,183.95
Regular price B2B price $2,183.95
SALE CALL OR CHAT TO ORDER
Shipping calculated at checkout.
Read the important notes before ordering

Questions about fitment? Live chat or call 866-235-4715

Complete your build

Optional add-ons

Recommended Add-Ons

  • SKU 198000Details
  • SKU 198001Details
  • SKU 252012Details
  • SKU 191003Details
Inventory: Call or Live Chat
  • Free shippingMost orders $500+
  • 30-day returnsSee policy
  • Warranty supportWe work with the maker
View full details

Questions about fitment?

Talk to a TRU specialist

We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT

Important notes before you order

  1. APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  2. APPLICATION NOTE #60: Only fits 2011-2022 Ford Ranger T6 platform available internationally. Will not fit 2019-2022 Ford Ranger US models.

Specifications

BrandICON Vehicle Dynamics
Part number91210C
UPC / GTIN840103406855
Active or Passive SuspensionPassive
Adjustable CompressionYes
Adjustable DampingYes
Adjustable ReboundNo
Adjustable Ride HeightYes
AssembledYes
Body Diameter2,5 IN
Coil Over Springs IncludedYes
Compressed Length15.78 IN
Cylinder ColorSilver
Cylinder FinishCadmium Plated
Cylinder MaterialSteel
Damping Adjustment TypeManual
Damping TypeOil
Dust Shield IncludedNo
Extended Length20.93 IN
Front Spring Rate650 PPI
Gas Chargedyes
Grade TypePerformance
Includes Bump StopNo
Internal Construction TypeSingle Tube
Lower Mount TypeEyelet
MaterialSteel
Maximum Lift3 IN
Maximum Ride Height Raising Distance3 IN
Minimum Lift1 IN
Remote ReservoirYes
Reservoir StyleRemote
Self-LevelingNo
Shaft Diameter0.875 IN
Shock Absorber Body End Measuring PointTop of Upper Mount Plate
Shock Absorber Rod End Measuring PointCenter of Eylet
Spring ColorBlack
Spring MaterialSteel
Spring Rate TypeLinear
Travel Length5.16 IN
Upper Mount TypeMOUNT PLATE
Valving TypeDigressive
Country of OriginUS
Warranty1 Year-Shock Absorbers; Limited Lifetime-Coil Springs

California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov

Features

  • Adjustable coilovers yield 1-3” of front lift height
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • Superior low speed control reduces body roll and increases on-road stability
  • External reservoirs maintain cooler operating temperatures during extended off-road use
  • ICON CDCV equipped for 10 settings of external compression damping adjustment
  • High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
  • Corrosion resistant CAD plated shock body with 7/8" diameter shaft
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Bolt-in design makes for an easy install into OEM shock location

Recommended wheels & tires

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 8" Wide Wheel With 5" Backspace
  • Recommended Aftermarket Tires: 32 x 11.00" Tall Tires (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Installation

    Free install support from the Trucks R Us tech team, for you or your shop.

    Overview

    ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2011-2022 Ford Ranger T6. These adjustable coilovers allow up to 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible with OE front upper control arms along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Ranger T6.
