ICON 2019-2026 Chevrolet Silverado1500/GMC Sierra 1500, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir w/ CDXS, Pair
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #110: Trimming required for recommended tire size
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #331: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require part numbers 71021 and 71022
- APPLICATION NOTE #324: Most Chevrolet Silverado and GMC Sierra submodels equipped with gasoline engines will have front lift height range of 1.5-3.5" over stock. Chevrolet Silverado Trail Boss and GMC Sierra 1500 AT4 lift height range will be 0-1.5" over stock.
- APPLICATION NOTE #325: Most Chevrolet Silverado and GMC Sierra submodels equipped with diesel engines will have front lift height range of 1-3" over stock. Chevrolet Silverado Trail Boss and GMC Sierra 1500 AT4 lift height range will be 0-1" over stock.
- APPLICATION NOTE #326: Not compatible with models equipped with 4-cylinder engine
- APPLICATION NOTE #327: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X submodels
- APPLICATION NOTE #335: Only fits models equipped with coil front springs
- APPLICATION NOTE #338: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require concurrent installation of aftermarket rear shocks
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 71656X |
| UPC / GTIN | 840103437583 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Height | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.97 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Dual Speed/Manual |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 23.83 IN |
| Front Spring Rate | 700 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel, Aluminum |
| Maximum Lift | 3.5 IN |
| Maximum Ride Height Raising Distance | 3.5 IN |
| Minimum Lift | 0 IN |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.87 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Country of Origin | US |
| Warranty | 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended offroad use
- ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- Height-adjustable coilovers offer 1.5-3.5" of front lift height
- ICON engineered coil springs
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- 100% Bolt-on - no drilling or welding necessary for installation
Recommended wheels & tires
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
- Recommended Aftermarket Tires (Silverado): 35"x12.50" (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Tires (Sierra): 34"x12.00" (Minor fender trimming and modifications may be required)
Overview

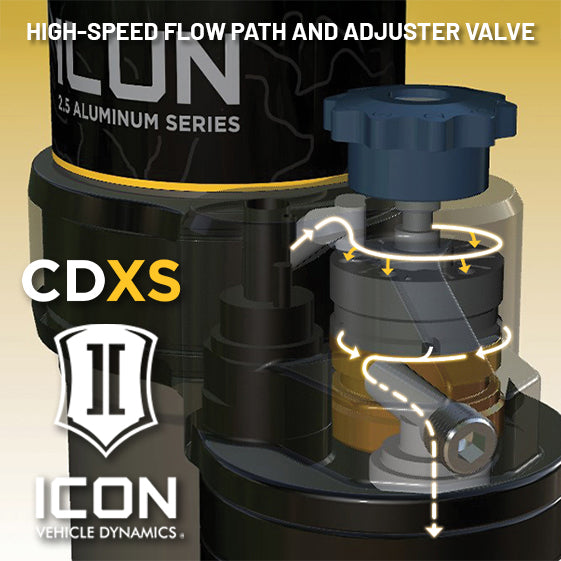

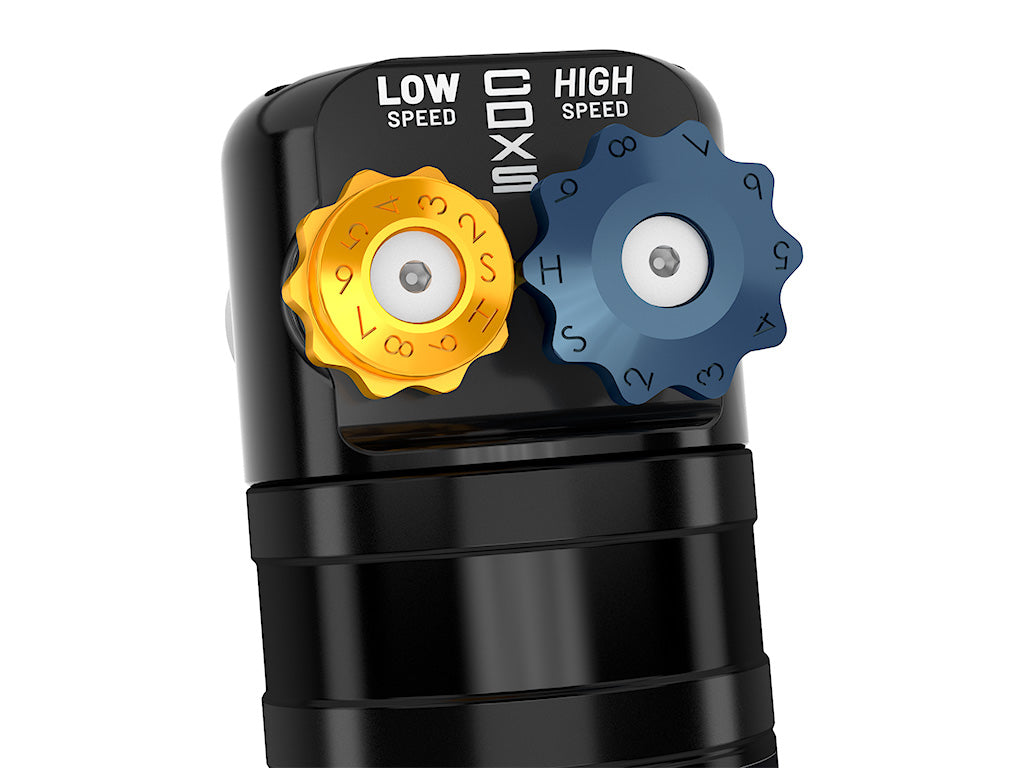

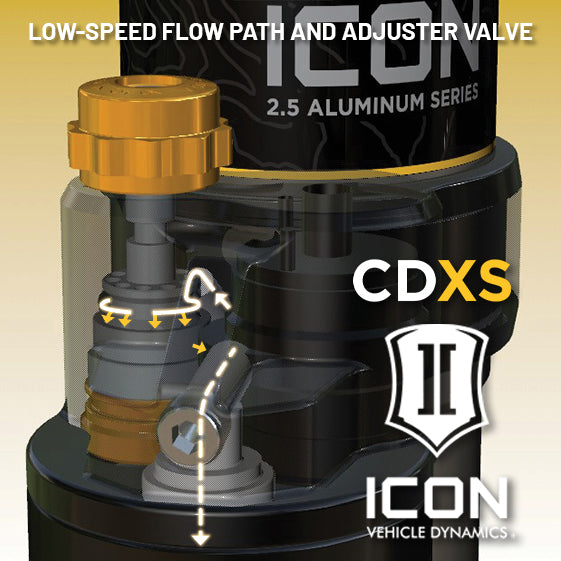

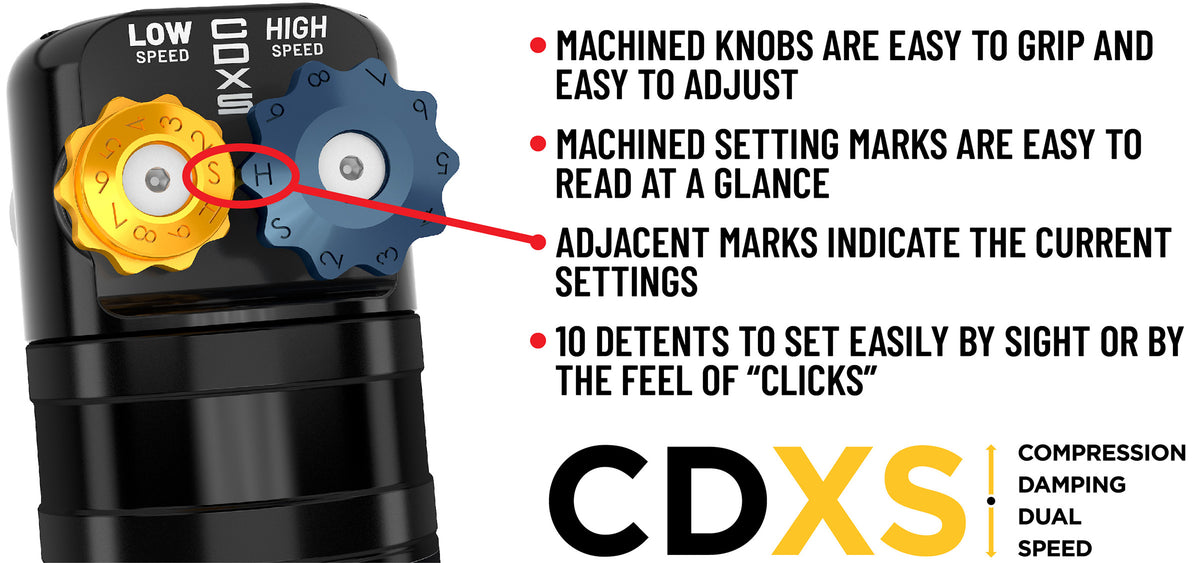

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the 2019-2026 GM Silverado/Sierra 1500. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.5-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your GM truck.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics

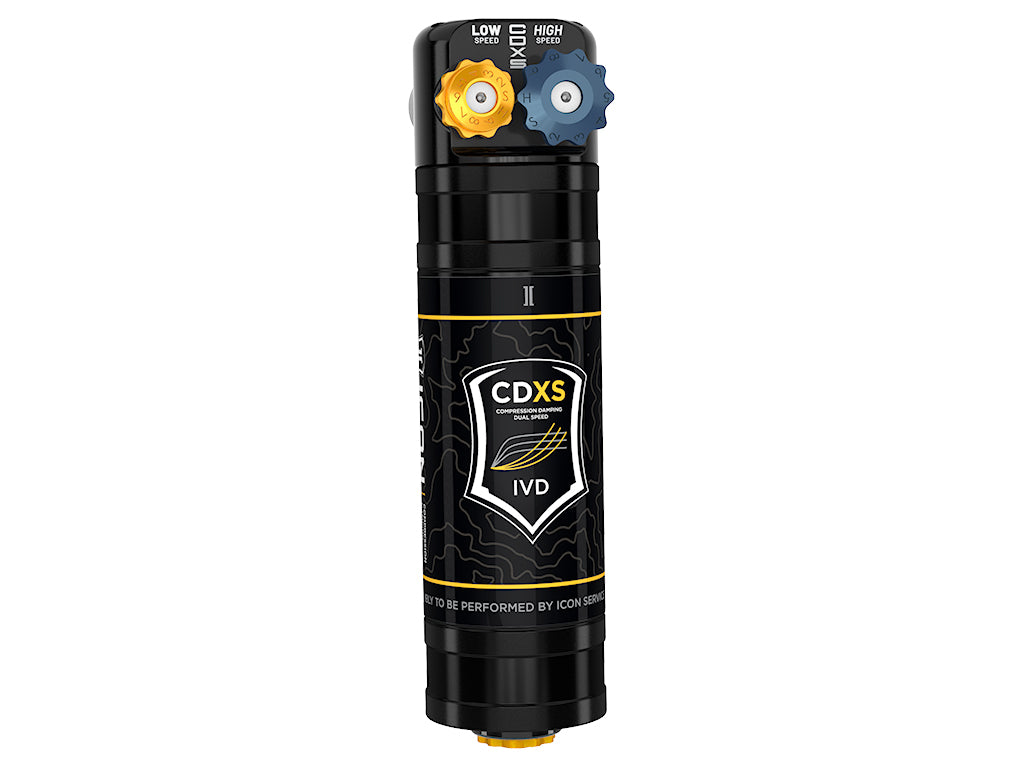

The CDXS Compression Damping Dual Speed Adjustability System represents the next evolution in vehicle suspension, delivering unmatched performance and customization for our most popular platforms. With the CDXS system from ICON Vehicle Dynamics, we've taken the low-speed knob found in... Shop all ICON Vehicle Dynamics
