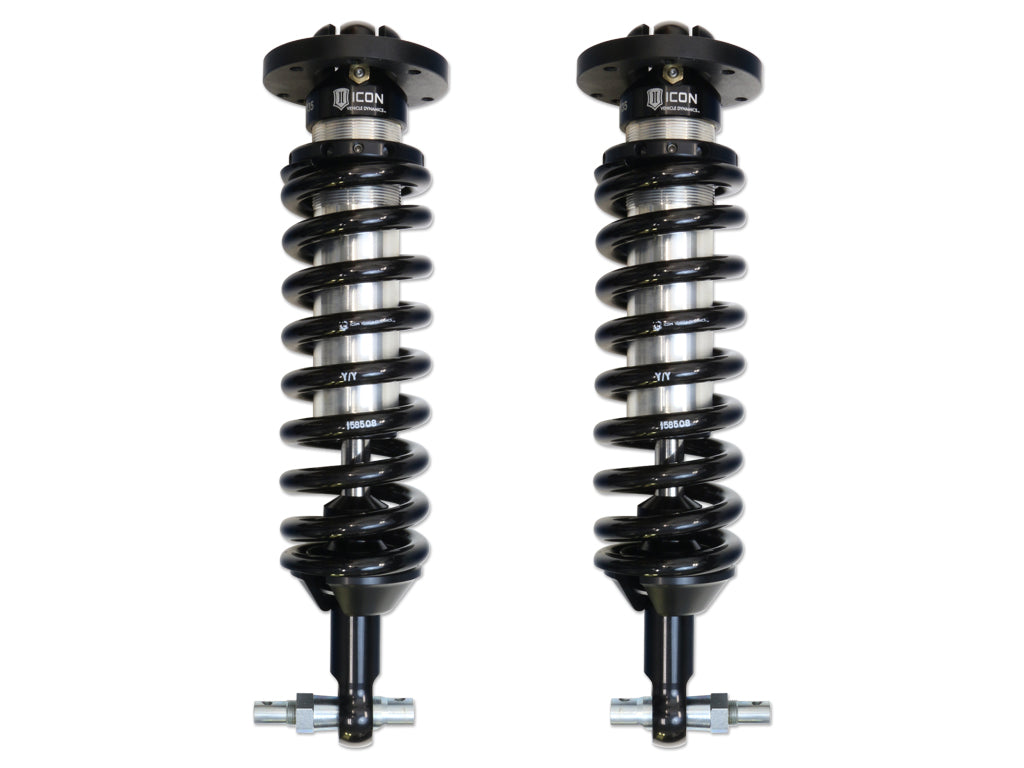

07-18 GM 1500 1-3" 2.5 VS IR COILOVER KIT

Name: 07-18 GM 1500 1-3" 2.5 VS IR COILOVER KIT
Brand: ICON Vehicle Dynamics
SKU: 71505
Price: 1820.99 USD
Availability: InStock

PART #

$1,820.99

SALE Backordered

Shipping calculated at checkout.

Product variants

Quantity

Inventory: In Stock

View full details

Important: Always read the entire product description, including important notes and fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

These coil-overs are valved specifically for the new body style (GMT 900 Platform) Chevrolet and GMC half ton 2WD and 4WD applications. They not only drastically improve the off road characteristics of the vehicle but increase the on road handling and performance as well. These shocks add an additional inch of wheel travel when used in conjunction with an ICON Vehicle Dynamics Arm (PT# 78600). They also offer an additional amount of lift height compared to our standard travel coil-over shocks.

Features

Less body-roll than stock truck
2.5" Diameter shock Body
Lifetime guarantee on coil-springs
Clears 33" Tall Tires
Internal Nitrogen Reservoir for Compact Design and Optimum Performance

Oem wheels & tires fitment: yes; recommended aftermarket wheels: icon alloys - 17x8.
5 with 4.
75” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 18x9 with 5” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 20x9 with 5” backspace / 0mm offset; recommended aftermarket tires: 33" x 11.
50" (larger tires may fit but fender trimming and modifications will be required.
); tech note: installation of icon delta joint upper control arms recommended.
Shock length requires trimming of factory droop stop to retain stock upper control arms.
; tech note: not compatible with models equipped magnetic ride control; tech note: not compatible with hybrid models

Quick SpecsOverview:

Spring Material: Steel
Adjustable Height: yes
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: BAR PIN
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: yes
Body Diameter: 2.5 IN
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Damping: NO
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Damping Type: Oil
Dust Shield: No
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: NO
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 257306 - 7/8 SHAFT 9.65 OAL 5.40 TRAVEL
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Shaft Diameter: 0.875 IN
Spring Color: Black
Title: 07-18 GM 1500 1-3" 2.5 VS IR COILOVER KIT

Additional Specifications:

Country of Origin: US
Warranty: 1 Years
Weight (lbs): 47.0
Vehicle Specific Fitment: Y

Instructions

I71505_REVA.pdf

Fitment

: N/A
